D-Link EBR-2310 - Port Forwarding

30D-Link EBR-2310 User Manual
Section 3 - Conguration
This will allow you to open a single port or a range of ports.

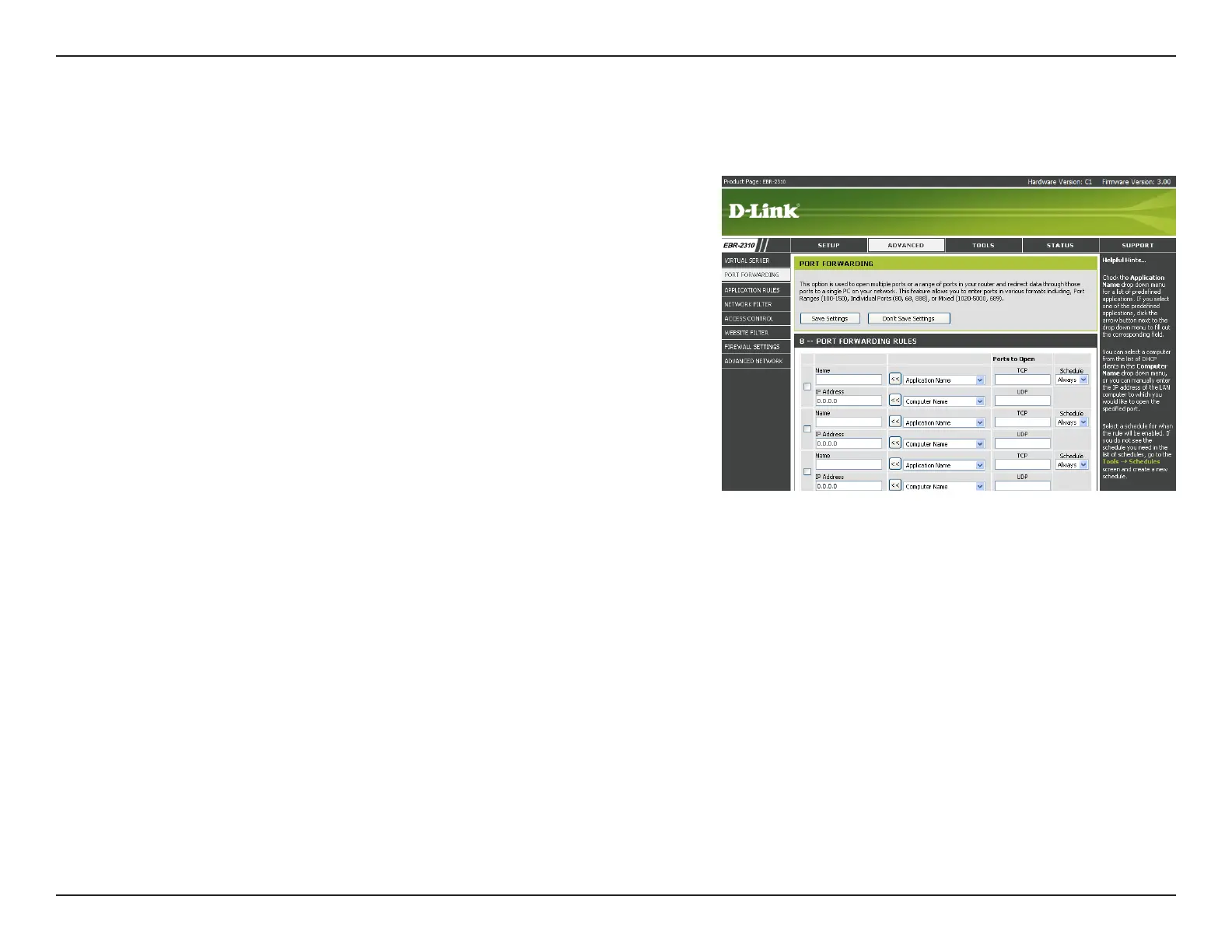

Port Forwarding
Enter a name for the rule or select an application from the drop-down
menu. Select an application and click << to populate the elds.
Enter the IP address of the computer on your local network that you
want to allow the incoming service to. If your computer is receiving an
IP address automatically from the router (DHCP), you computer will be
listed in the “Computer Name” drop-down menu. Select your computer
and click <<.
Enter the TCP and/or UDP port or ports that you want to open. You can
enter a single port or a range of ports.
Example: 24,1009,3000-4000
The schedule of time when the Virtual Server Rule will be enabled. The
schedule may be set to Always, which will allow the particular service
to always be enabled. You can create your own times in the Tools >
Schedules section.
Name:
IP Address:
TCP/UDP:
Schedule:
