D-Link Express EtherNetwork DI-604 User Manual

-25-

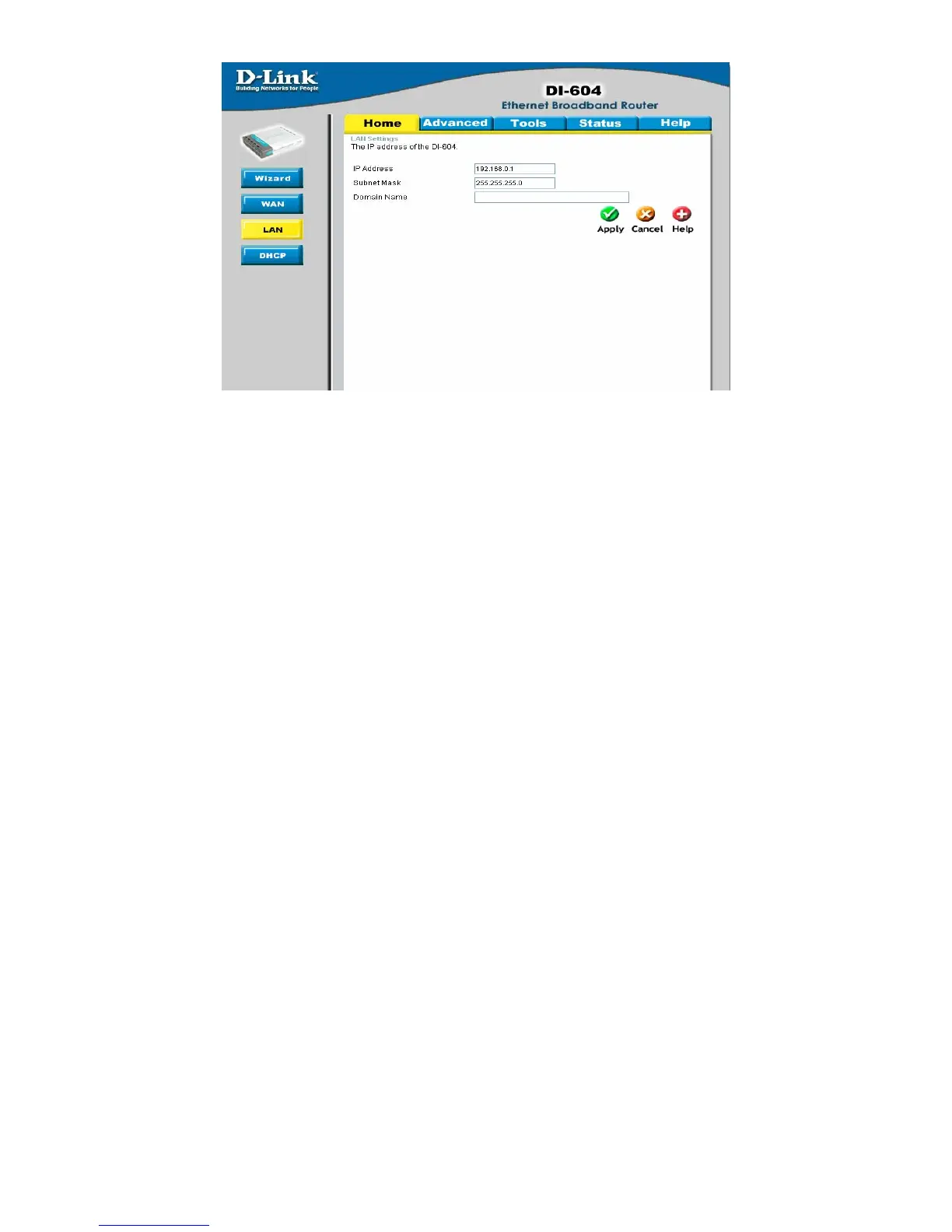

HOME > LAN
LAN is short for Local Area Network. This is considered your internal
network. These are the IP settings of the LAN interface for the DI-604.
These settings may be referred to as Private settings. You may change
the LAN IP address if needed. The LAN IP address is private to your
internal network and cannot be seen on the Internet.
IP Address: The IP address of the LAN interface. The default IP address
is 192.168.0.1.
Subnet Mask: The subnet mask of the LAN interface. The default subnet
mask is 255.255.255.0.
Local Domain Name: This field is optional. Enter in the your local domain
name.

D-Link Express EtherNetwork DI-604 Specifications

General

Category	Wireless Router
Model	DI-604
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet
Standards	IEEE 802.3, IEEE 802.3u
WAN Ports Qty	1
LAN Ports Qty	4
Firewall	Yes
VPN Pass-through	Yes
Features	NAT support, DHCP support, DMZ port
Ports	5 x Ethernet 10/100 Mbps
Weight	0.75 lbs
