D-Link Express EtherNetwork DI-604 User Manual

-45-
This page allows you to observe the DI-604’s working status:
WAN
IP Address: WAN/Public IP Address
Subnet Mask: WAN/Public Subnet Mask
Gateway: WAN/Public Gateway IP Address
Domain Name Server: WAN/Public DNS IP Address
Wan Status: WAN Connection Status
LAN
IP Address: LAN/Private IP Address of the DI-604
Subnet Mask: LAN/Private Subnet Mask of the DI-604
Firmware version: Displays the current firmware version
WAN MAC Address: Displays the WAN port MAC/hardware address
LAN MAC Address: Displays the LAN port MAC/hardware address

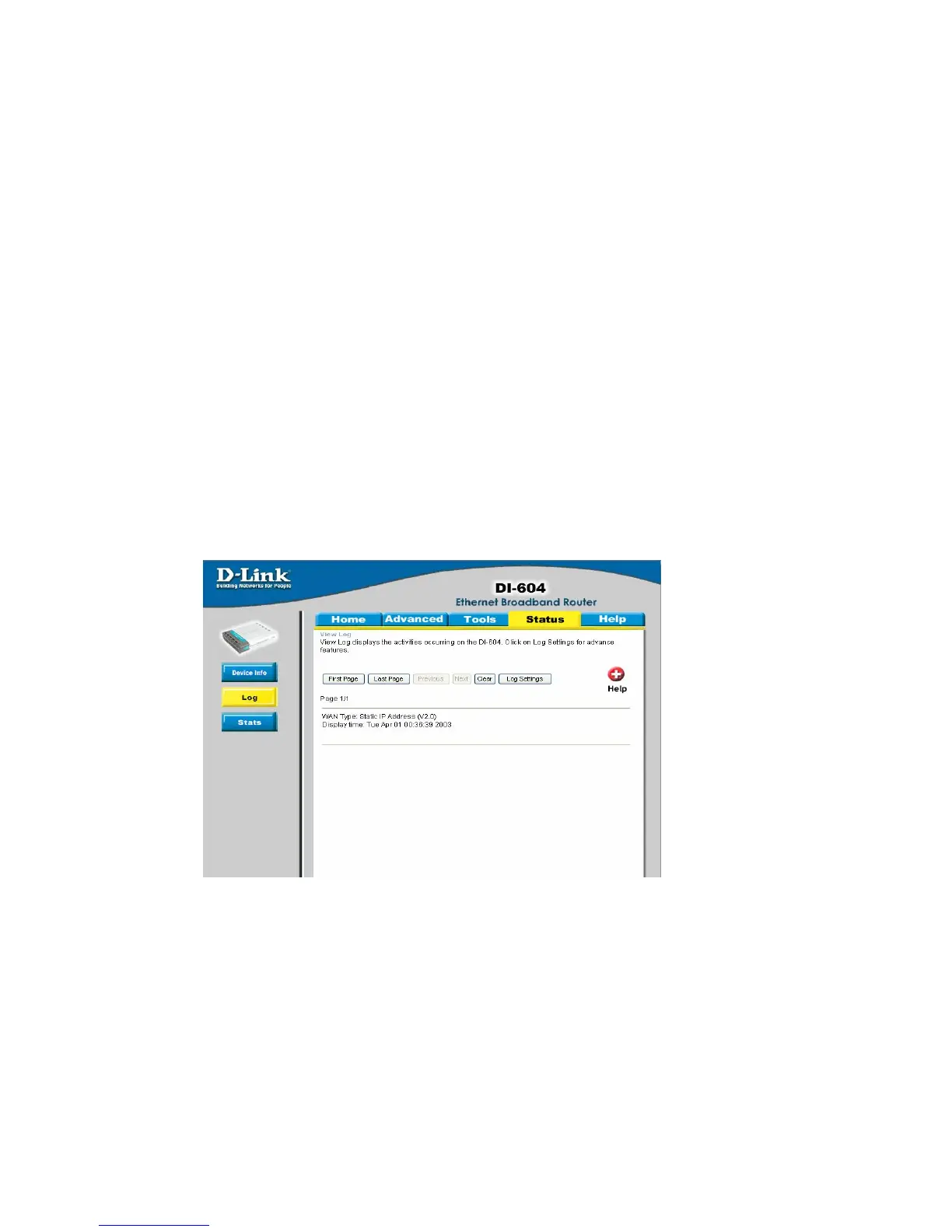

STATUS > LOG

D-Link Express EtherNetwork DI-604 Specifications

General

Category	Wireless Router
Model	DI-604
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet
Standards	IEEE 802.3, IEEE 802.3u
WAN Ports Qty	1
LAN Ports Qty	4
Firewall	Yes
VPN Pass-through	Yes
Features	NAT support, DHCP support, DMZ port
Ports	5 x Ethernet 10/100 Mbps
Weight	0.75 lbs
