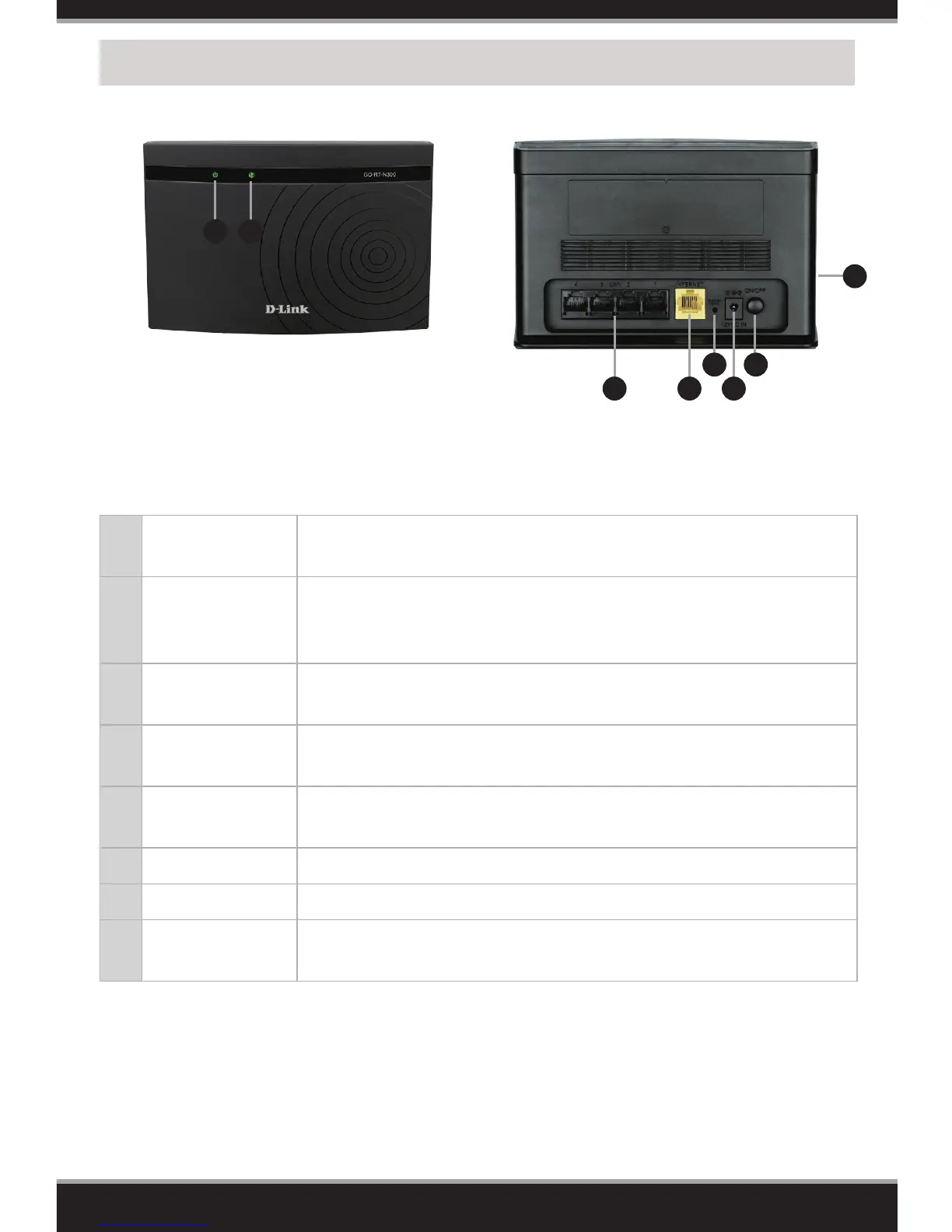

Hardware Overview
1 Power LED
A solid green light indicates a proper connection to the
power supply.
2 Internet LED
A solid green light indicates a connection to the Internet
port. The LED will blink during boot-up and during the WPS
process.
3
LAN Ports
(1-4)
Connect Ethernet devices such as computers, switches, and
game consoles.
4 Internet Port
Connect your broadband modem to this port using an
Ethernet cable.
5 Reset Button
Press and hold the reset button with a paper clip for six
seconds to reset the router to the factory default settings.
6 Power Button Press to power the router on and o.
7 Power Port Connect the supplied power adapter.
8 WPS Button
Press to start the WPS process. The Internet LED will start to
blink.
1
2
3 4 6
5 7
8
