D-Link GO-SW-8G User Manual

D-Link GO-SW-5G/8G 5/8-port Gigabit Easy Desktop Switch
3
• Store-and-Forward switching method
• Supports 2K(GO-SW-5G)/ 8K(GO-SW-8G) absolute MAC addresses
• Supports 128KBytes RAM for data buffering
• IEEE 802.3x flow control for full duplex
• Back pressure flow control for half duplex
• Jumbo Frame Support at 1000Mbps ( 9216Bytes )
Front-Panel Components
The top case of the Switch consists of LED indicators, 5/8 (10/100/1000 Mbps) Ethernet ports.

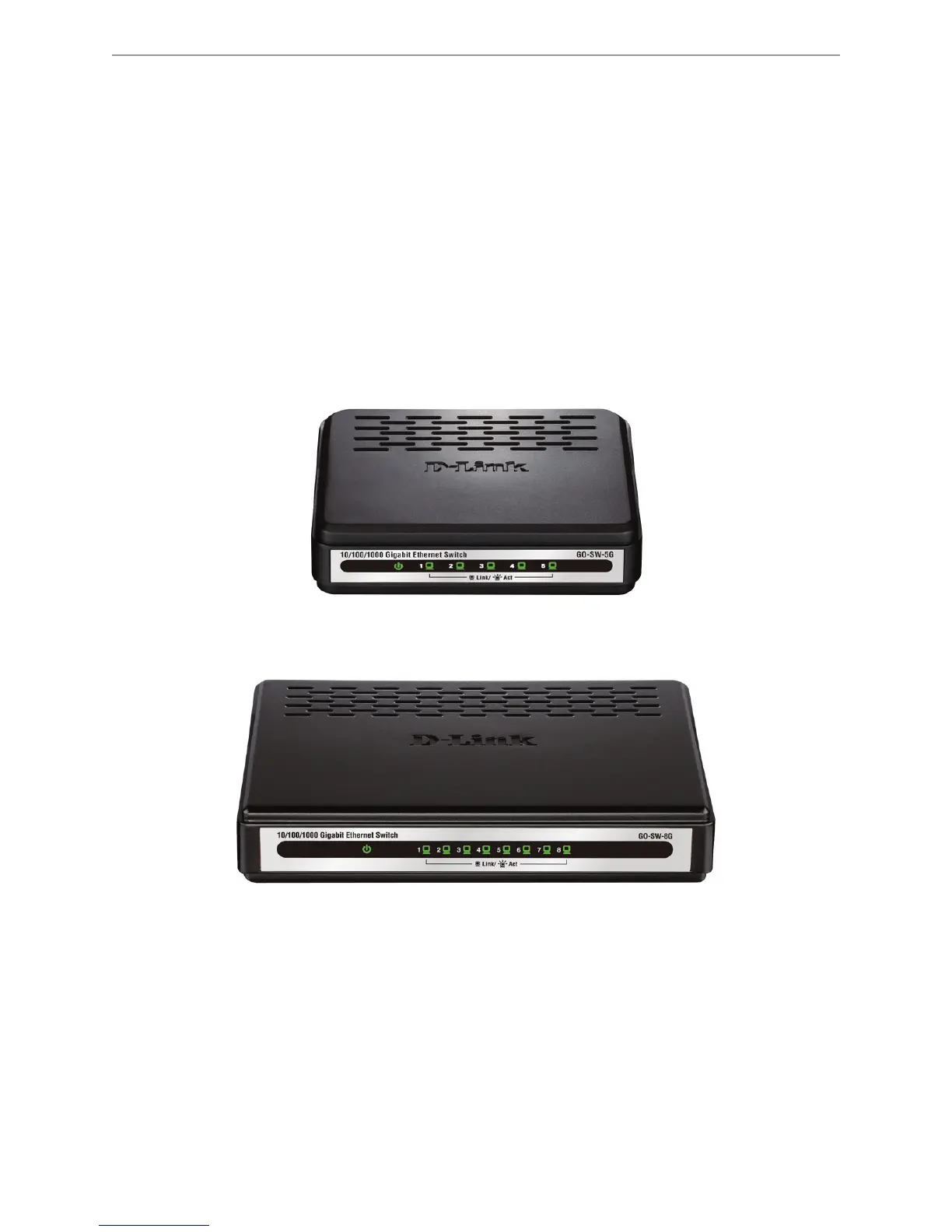

Figure 1-1. Front Panel View of the Switch
Comprehensive LED indicators display the status of the Switch and the network.

D-Link GO-SW-8G Specifications

General

MAC address table	8000 entries
Jumbo frames support	Yes
Packet buffer memory	0.125 MB
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10, 20, 100, 200, 1000, 2000 Mbps
10G support	-
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Switch type	Unmanaged
Power connector	DC-in jack
Basic switching RJ-45 Ethernet ports quantity	8
Power consumption (typical)	3.9 W
Certification	FCC, ICES, CE, C-tick, VCCI, cUL/UL, CCC, LVD
Product color	White
Mean time between failures (MTBF)	412433 h
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Connectivity technology	Wired

Weight and Dimensions

Depth	68.5 mm
Width	128 mm
Height	25.4 mm
Weight	195 g
