D-Link GO-SW-8G User Manual

D-Link GO-SW-5G/8G 5/8-port Gigabit Easy Desktop Switch
8
Section 3
Connecting The Switch
Switch To End Node
Switch To Hub or Switch
Connecting To a Server
Switch To End Node
End nodes include PCs outfitted with a 10, 100, or 1000 Mbps RJ-45 Ethernet/Fast Ethernet Network Interface Card (NIC)
and most routers.
An end node can be connected to the Switch via a twisted-pair Category 3, 4, 5, or 5e UTP/STP cable. The end node can be
connected to any of the ports of the Switch.

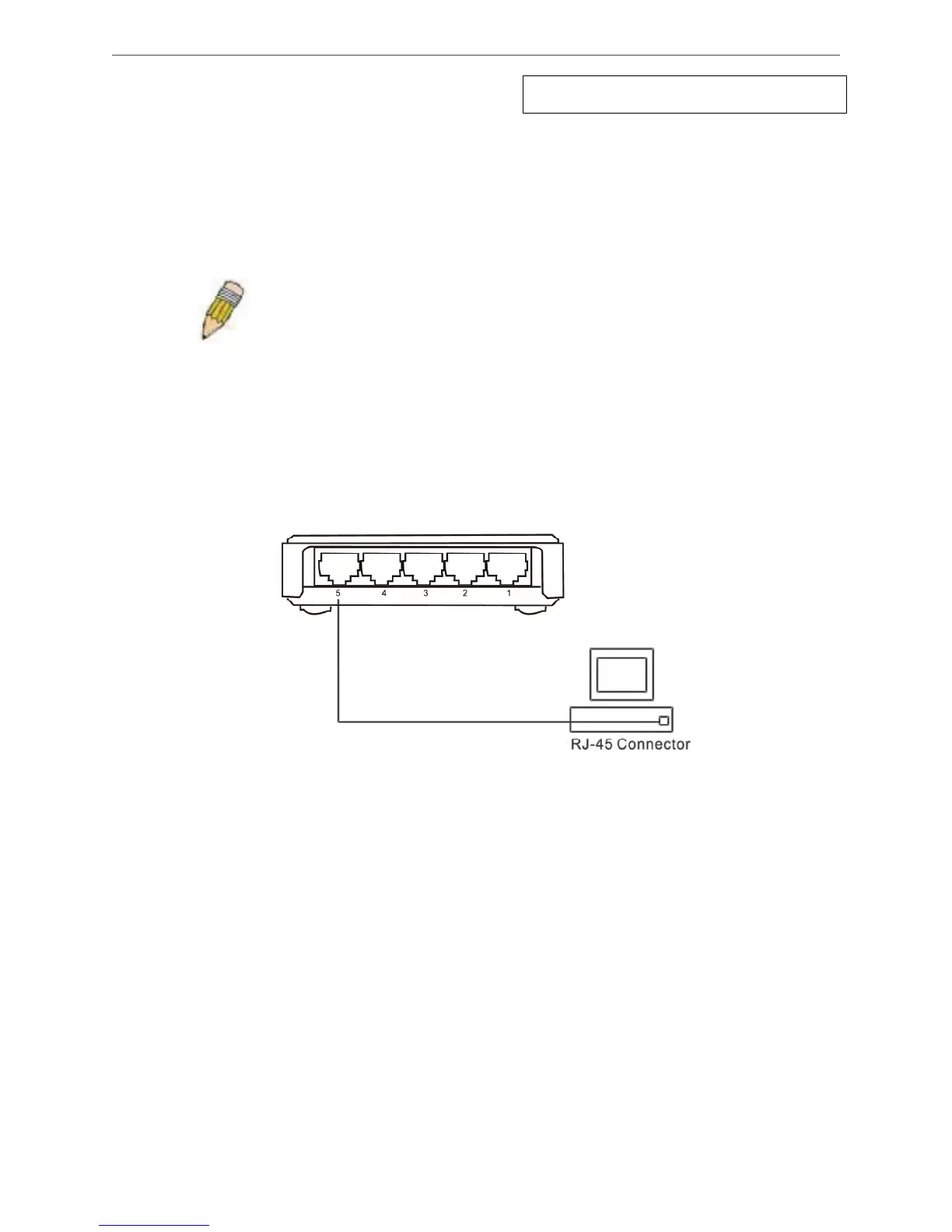

Figure 3-1. Switch connected to an end node
Switch to Hub or Switch
These connections can be accomplished in a number of ways using a standard Ethernet cable.
• A 10BASE-T hub or switch can be connected to the Switch via a twisted-pair Category 3, 4, 5, or 5e UTP/STP
cable.
• A 100BASE-T hub or switch can be connected to the Switch via a twisted -pair Category 5 or better UTP/STP
cable.
• A 1000BASE-T switch can be connected to the Switch via a twisted -pair Category 5 or better UTP/STP cable.
NOTE: All 5/8 high-performance NWay Ethernet ports can support both
MDI-II and MDI-X connections.

D-Link GO-SW-8G Specifications

General

MAC address table	8000 entries
Jumbo frames support	Yes
Packet buffer memory	0.125 MB
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10, 20, 100, 200, 1000, 2000 Mbps
10G support	-
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Switch type	Unmanaged
Power connector	DC-in jack
Basic switching RJ-45 Ethernet ports quantity	8
Power consumption (typical)	3.9 W
Certification	FCC, ICES, CE, C-tick, VCCI, cUL/UL, CCC, LVD
Product color	White
Mean time between failures (MTBF)	412433 h
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Connectivity technology	Wired

Weight and Dimensions

Depth	68.5 mm
Width	128 mm
Height	25.4 mm
Weight	195 g
