D-Link Wireless N Router DIR-615 User Manual

21D-Link DIR-615 User Manual

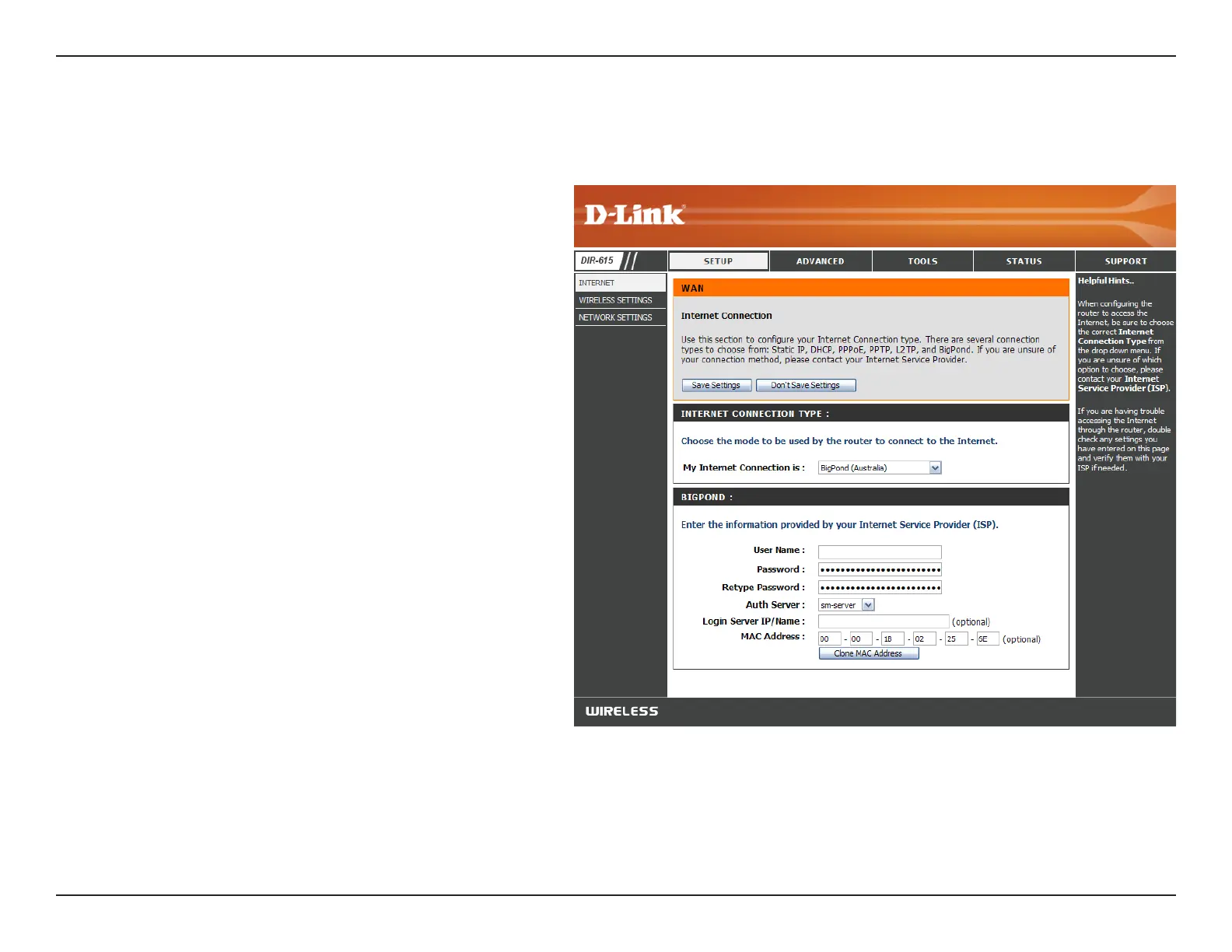

Section 3 - Configuration
Enter the IP address of the login server.
Enter your BigPond username.
Enter your BigPond password and then retype
the password in the next box.
Select the type of authentication server being
used.
The default MAC Address is set to the
Internet’s physical interface MAC address on
the Broadband Router. It is not recommended
that you change the default MAC address
unless required by your ISP. You can use the
Clone Your PC’s MAC Address button to
replace the Internet port’s MAC address with
the MAC address of your Ethernet card.
BigPond Server:
BigPond Username:
BigPond Password:
Auth Server:
MAC Address:
Internet Setup
Big Pond

D-Link Wireless N Router DIR-615 Specifications

General

Frequency Band	2.4 GHz
LAN Ports	4 x 10/100Mbps
WAN Ports	1 x 10/100Mbps
Wireless Speed	Up to 300 Mbps
Antenna Gain	5 dBi
Firewall	NAT, SPI
Humidity	10% to 90% non-condensing
Wireless Standard	IEEE 802.11n
Antenna Type	2 x External Antennas
Security	WEP, WPA, WPA2, WPS
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 65 °C
