43D-Link DIR-615 User Manual
Section 3 - Configuration

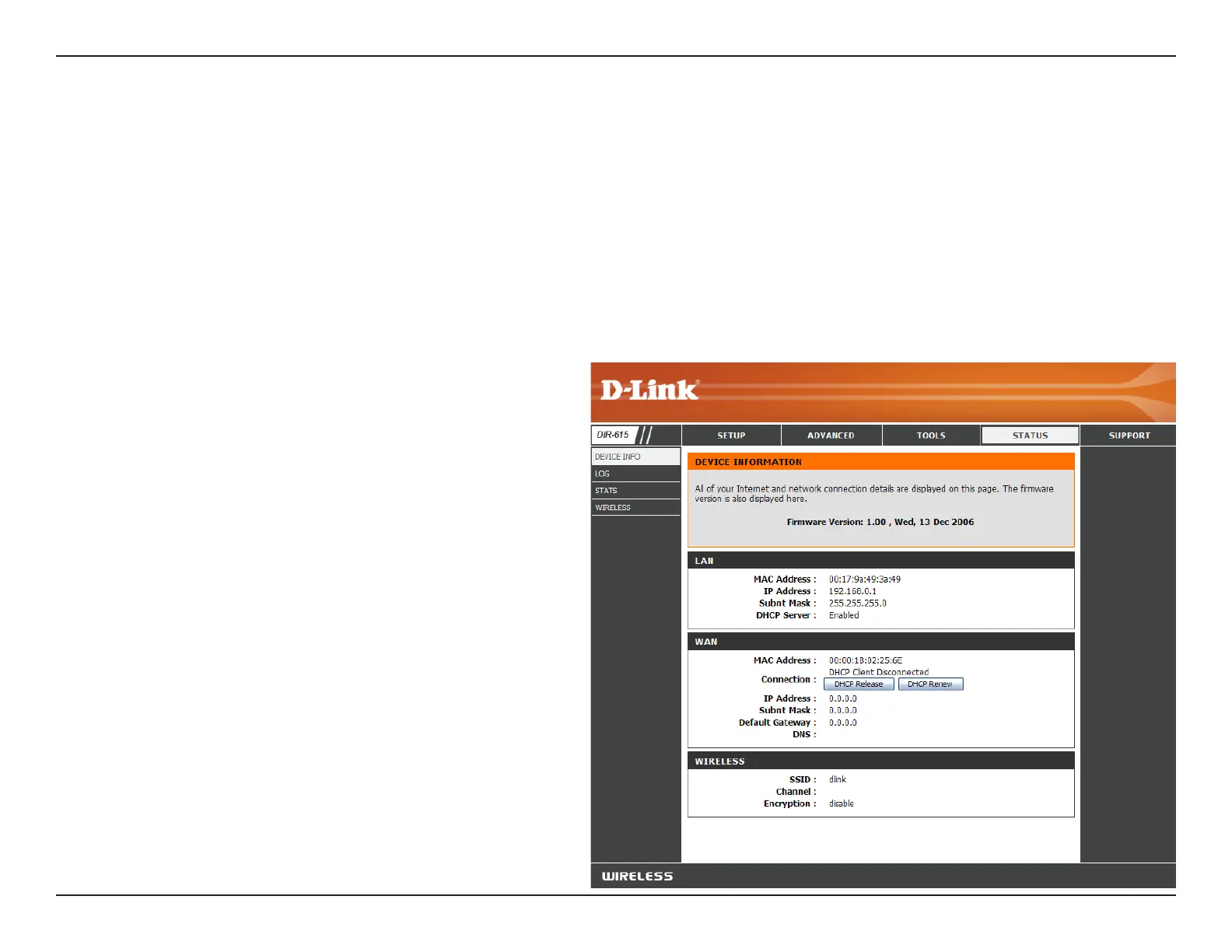

This page displays the current information for the DIR-615. It will display the LAN, WAN (Internet), Wireless information,
and the firmware version of the router.
If your Internet connection is set up for a Dynamic IP address then a Release button and a Renew button will be
displayed. Use Release to disconnect from your ISP and use Renew to connect to your ISP.
If your Internet connection is set up for PPPoE, a Connect button and a Disconnect button will be displayed. Use
Disconnect to drop the PPPoE connection and use Connect to establish the PPPoE connection.
Displays the MAC address and the private (local)
IP settings for the router.
Displays the MAC address and the public IP
settings for the router.
Displays the wireless MAC address and your
wireless settings such as SSID and Channel.
LAN:
WAN:
Wireless LAN:
Device Information
