PRODUCT NOTES
• Overall case length dimensions +/- ¼".
• Detail dimensional drawings and installation
instructions available upon request.
• Speciications subject to change without notice.
• Custom formats and sizes available upon request.
• Matte White: Horizontal seam required when both
dimensions exceed 10'.
• Video Spectra 1.5 and High Contrast Matte White:
Available in sizes where both dimensions do not
exceed 8'.
• High Power®: Available in sizes up to 9' x 12'. Horizontal
seam required when both dimensions exceed 6'.
WHEN ORDERING, MARK APPROPRIATE SELECTIONS:
1. Select size from charts on the other side.
2. Select viewing surface (All Da-Lite surfaces are GREENGUARD GOLD Certiied.):
Matte White
Video Spectra 1.5
3. Optional accessories:
Extra Drop available to lower picture
area more than normal. Specify total
drop at top _____ (black or white) or at
bottom _____ (black or white). 13'
maximum total surface height
including picture area.
No Borders (Black masking borders
standard).
Pull Rod – 38".
Project Name:
Architect:
Contractor: Phone:
Reseller: Phone:
High Contrast Matte White
High Power®
⅜" Threaded Rod
(Not Included)
Attached to Hanger
Bracket
Finished Ceiling
Self-Trimming Flange
Variable Position
Mounting Channel
9¼"
6⁄"
6⅜"
7¾"

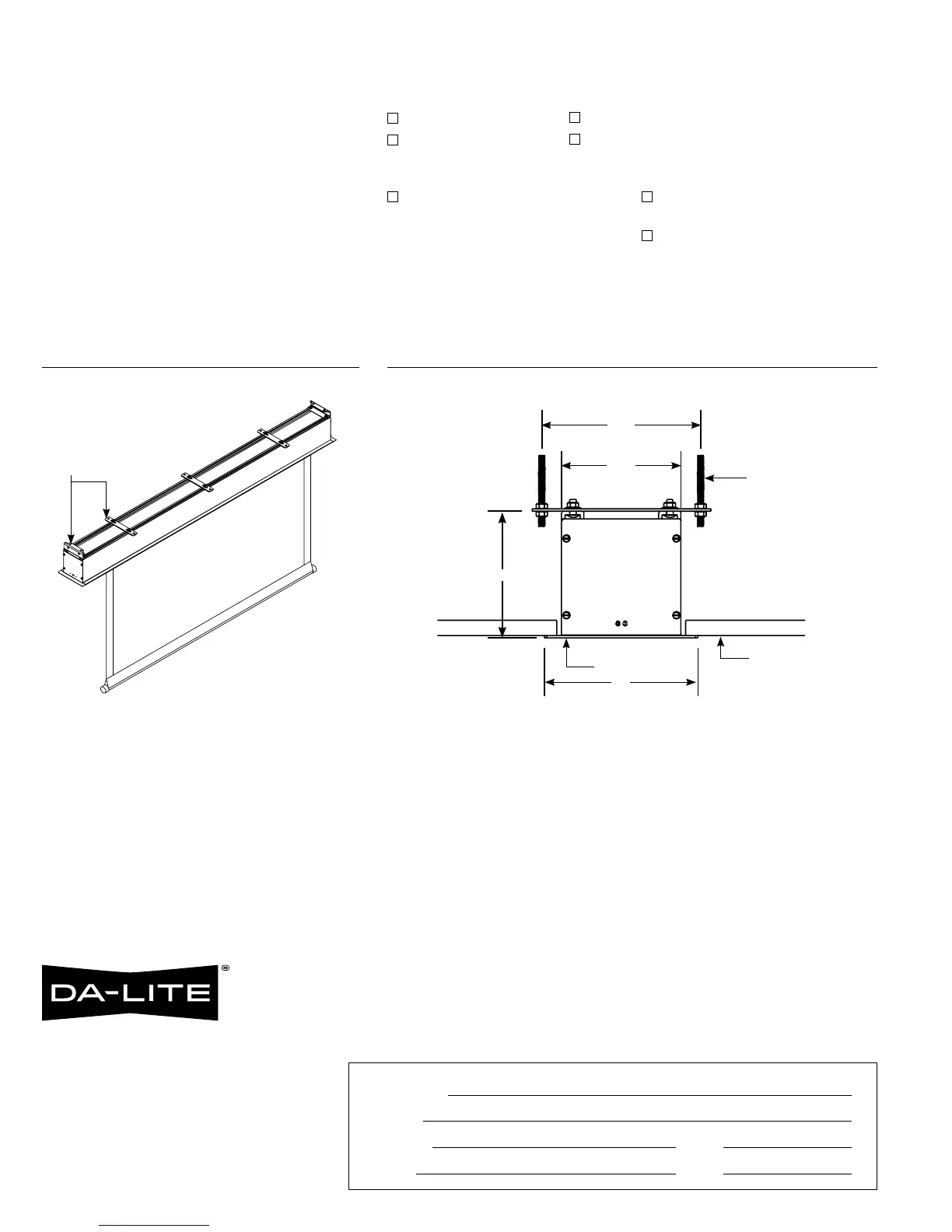

PRODUCT VIEWS SUGGESTED METHOD OF INSTALLATION
