Da-Lite Advantage - Page 3

2

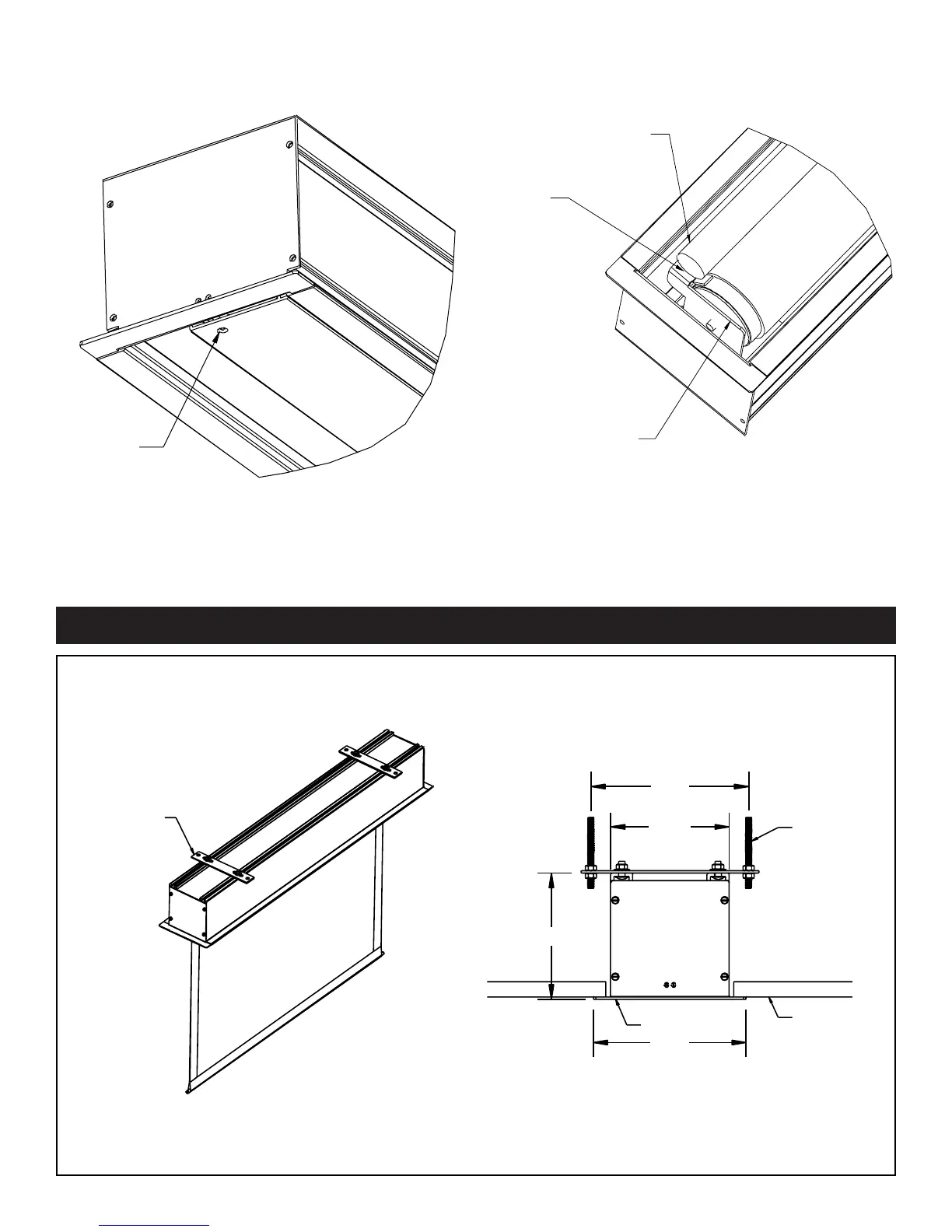

FIGURE 1
REMOVE 2
SCREWS TO
REMOVE
ACCESS DOOR
FOAM PAD
MOUNTING BRACKET
SLAT BAR
FIGURE 2
ADVANTAGE MANUAL INSTALLATION
VARIABLE
POSITION
MOUNTING
CHANNEL
9-1/4"
3/8" THREADED
ROD (NOT
INCLUDED)
ATTACHED TO
HANGER
BRACKET
FINISHED
CEILING
SELF-TRIMMING
FLANGE
6-3/8"
7-3/4"
6-1/16"
