Da-Lite Floor Model C - Page 3

3
Operating Instructions Floor Model C and Stand
To Close Stand
For 6' Height: Pull out springlock (9), then raise upper
handle (10) until springlock locks securely at 1st
position.
For 7' Height: Raise upper handle (10) until springlock
locks securely at 2nd position.
For 8' Height: Raise upper handle (10) until springlock
locks securely at 3rd position.
For 8 1⁄2' Height: Raise upper handle (10) until
springlock locks securely at 4th position.
For 9' Height: Raise upper handle (10) until spring
locks securely at 4th position. Then raise lower handle
(11) until springlock locks securely at 2nd position.
For 10' Height: Raise upper handle (10) until spring
locks securely at 4th position. Then raise lower handle
(11) until springlock locks securely at 3rd position.
For 12' Height: Raise upper handle (10) until spring
locks securely at 4th position. Then raise lower handle
(11) until springlock locks securely at 6th position.
Release lower handle (11) to bottom position, then release upper handle (10) to bottom position.

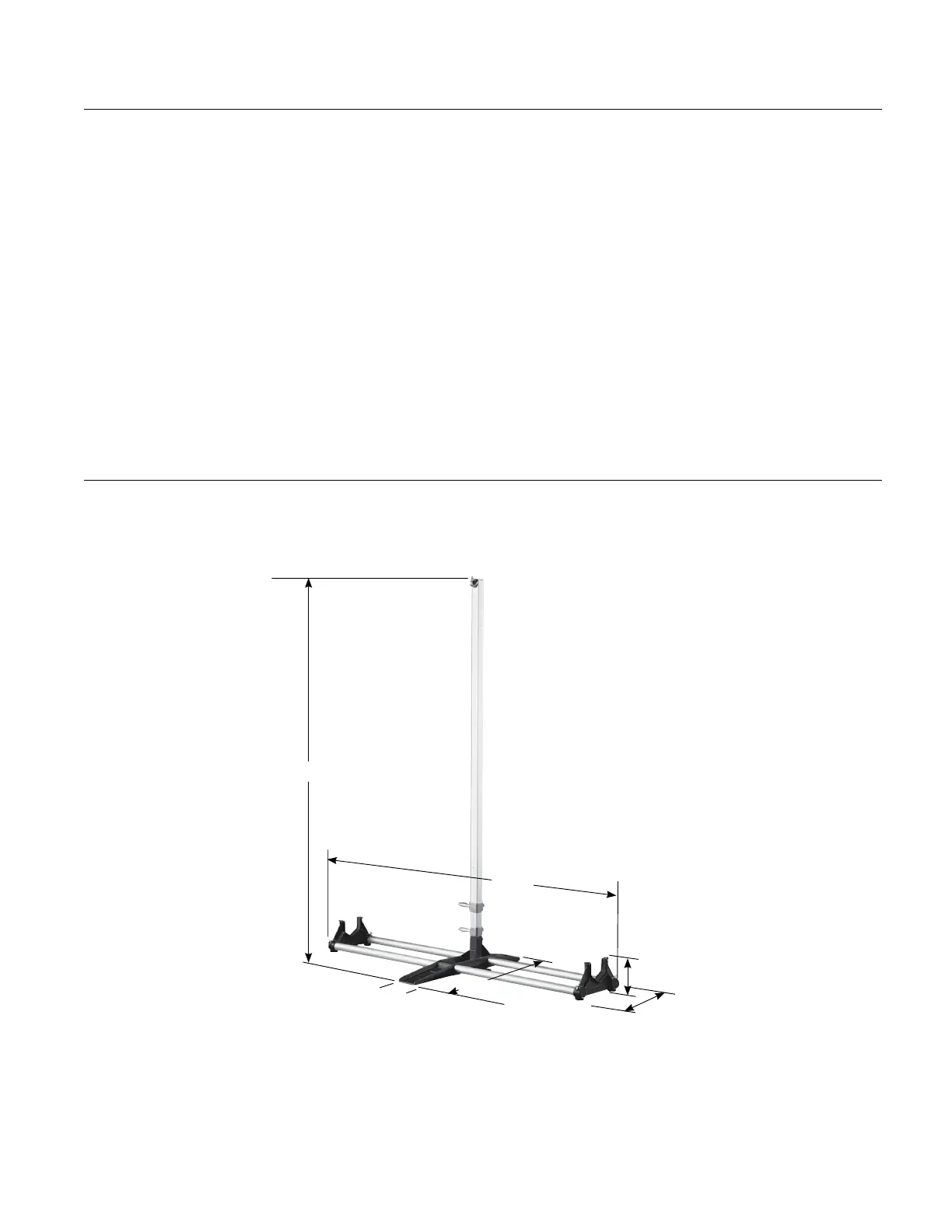

Maximum Height
Fully Extended
For 12' x 12'
Screen
60"
4"
5 ¾"
10 ⅞"
28 ½"
13' – 3"
