11. CONTROL PANEL
The functions of EVOPLUS SMALL circulators can be modied by means of
the control panel on the cover of the electronic control device.
On the panel there are: a graphic display, 4 navigation keys and 3 LED
warning lights (see Figure 5).
11.1 Graphic Display
Using the graphic display it will be possible to navigate in an easy and
intuitive menu which will enable you to check and modify the system op-
erating mode and the working set-point. It will also be possible to view
the system status and the log of any alarms memorised by the system.
11.2 Navigation Buttons
4 buttons are provided for navigating in the menu: 3 buttons under the
display and 1 at the side. The buttons under the display are called active
buttons and the one at the side is called hidden button.
Each page of the menu is made in such a way as to indicate the function
associated with the 3 active buttons (the ones under the display).
11.3 Warning Lights
Yellow light: System live signal.
If lit, it means that the system is live.
Never remove the cover if the yellow light is lit.
Red light: Warning of an alarm/malfunction present in the system.
If the light is blinking it is a non-blocking alarm and the pump can still be
controlled. If the light is xed it is a blocking alarm and the pump cannot
be controlled.

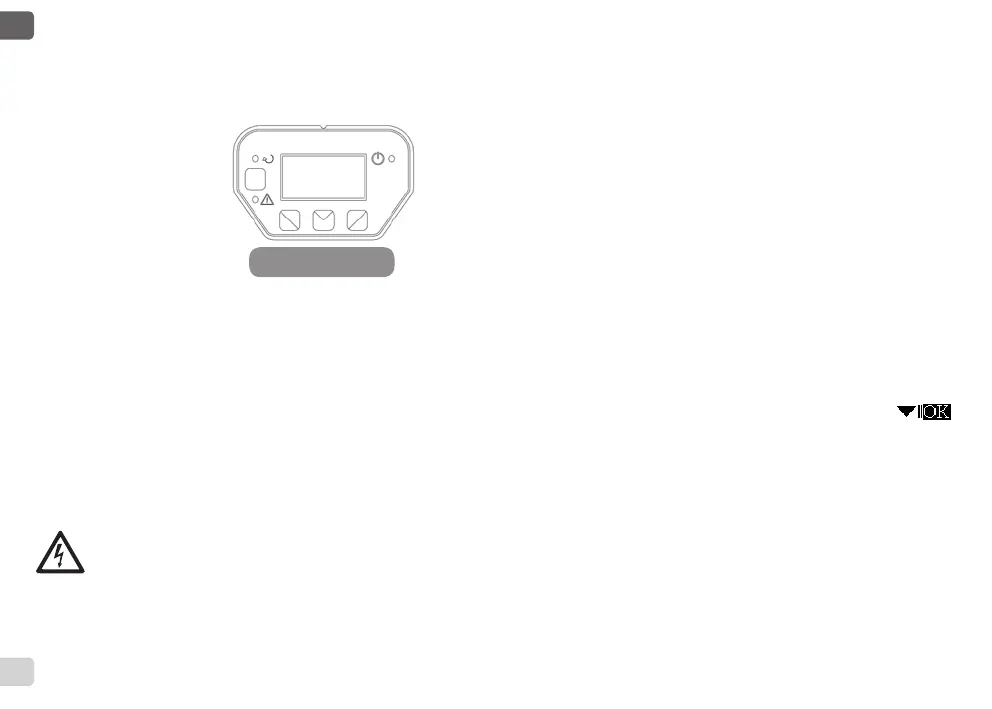

Figure 5: Control panel
Green light: Pump ON/OFF signal.
if lit, the pump is running. If off, the pump is stopped.
12. MENUS
EVOPLUS SMALL circulators offer a user menu accessible from the
Home Page by pressing and releasing the central “Menu” button.
Below are shown the user menu pages with which it is possible to check
the system status and modify its settings.
If the menu pages show a key at bottom left it means that it is not possible
to change the settings. To unblock the menus go to the Home Page and
press the hidden button and the button under the key at the same time
until the key disappears.
If no button is pressed for 60 minutes, the settings are automatically
blocked and the display switches off. When any button is pressed
the display lights up again and the “Home Page” appears.
To navigate in the menus, press the central button.
To return to the previous page, hold down the hidden button, then press
and release the central button.
To modify the settings use the left and right buttons.
To conrm the change of a setting, hold down the central button “OK” for
3 seconds. Conrmation will be indicated by the following icon:

