DIGITAL INDICATOR
DN500N
33
7-5. ANALOG OUT(0~10V)INTERFACE(Option 02)
This Option is to transmit display weight value by Voltage out to the external devices (such
as Recoder, P.L.C Main Control etc.) controlled by analog signal.
▶ SPECIFICATIONS
Output Voltage 0~10V DC Output
Accuracy Over 1/1000

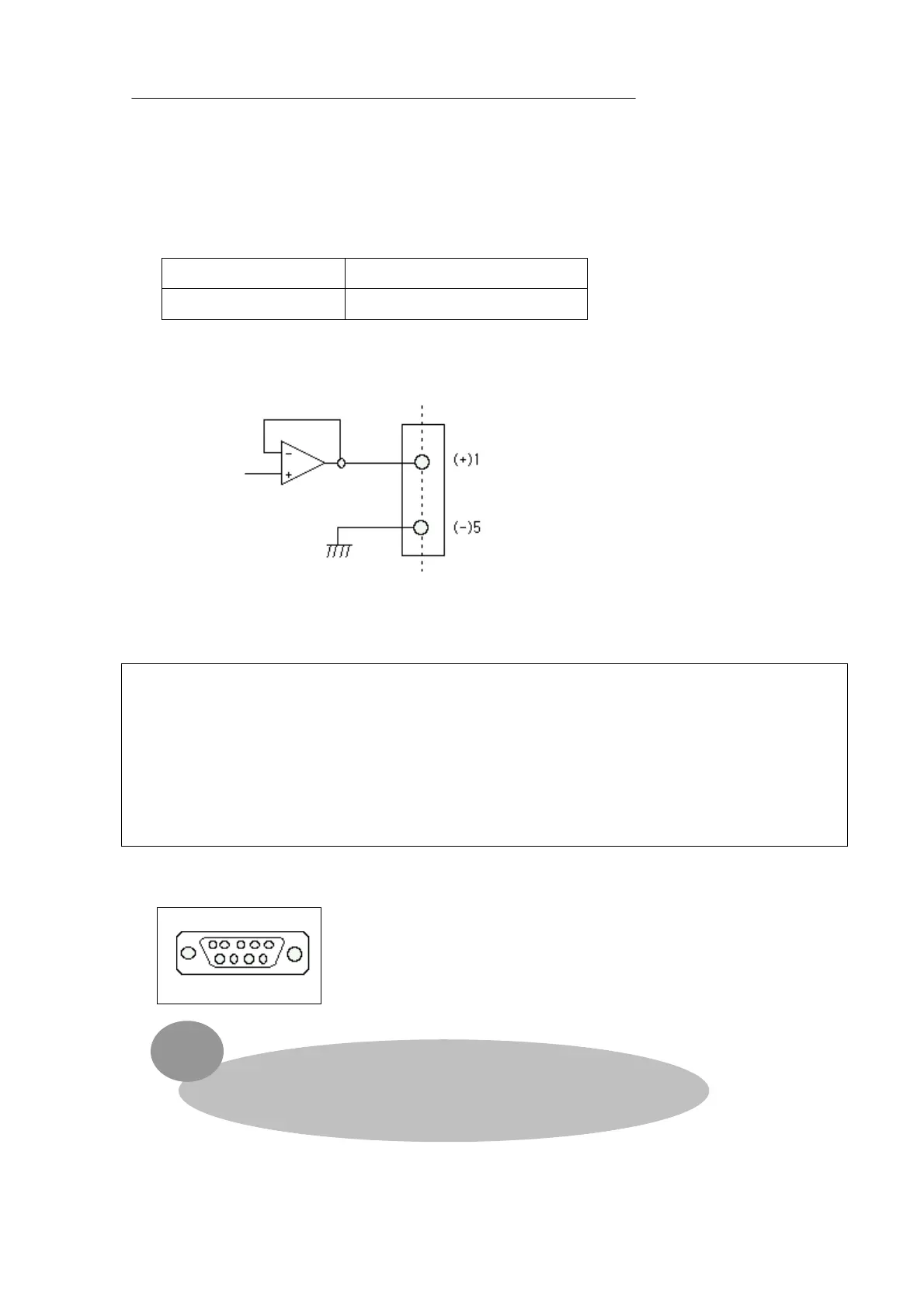

▶ CONNECTOR (9P D-TYPE Female) & Circuit
※ This Voltage Output generates analog voltage (0~10V) compared to the weight display
signal input.
▶ ADJUST (Refer to the details at Page34. )
① At dispatch, it is set as 0V with weight display “0” and 10V with maximum load.
② It is set accurately when output voltage is measured by DIGITAL MULTI-METER.
Please do the detailed adjustment for VR1 (Zero on Analog out PCB) and VR2 (SPAN) inside
of indicator.
※ Note: This Analogue out output is printed after converting displayed weight value (Micro
Process DATA) to Analogue value by D/A converter.
The accuracy of D/A converter is below 1/4000. Therefore, users should use the device with
accuracy below 1/3000
This is not suitable for the device that requires high accuracy over 1/3000.
▶ CONNECTOR
9 Pin D-TYPE Female Connector
1 : HI(+)
5 : Lo(-)
If you need 0~5VDC 1~5VDC Output,
please ask us in advance before we dispatch the product.
EX
To Next Page
