DIGITAL INDICATOR
DN500N
5

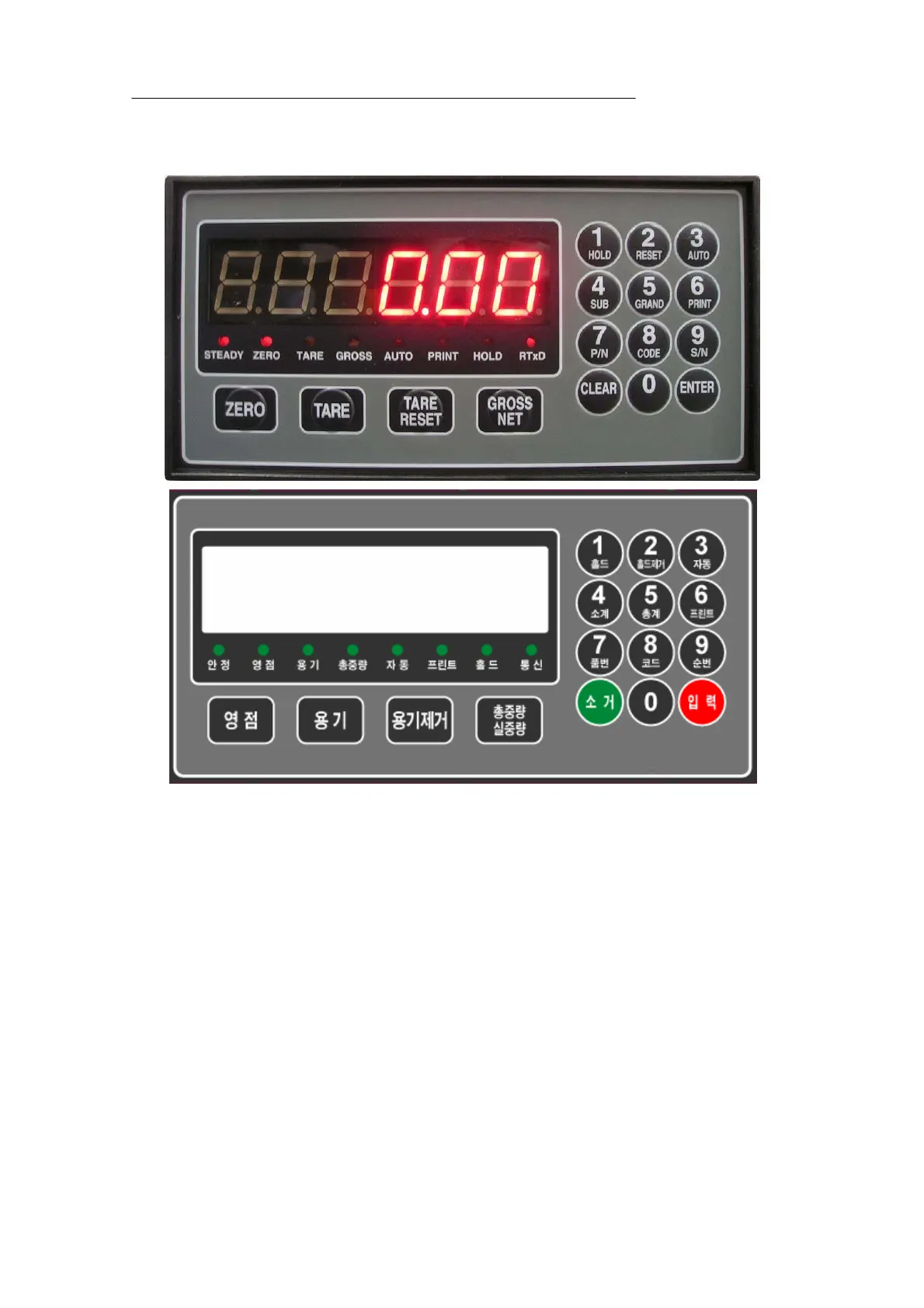

3. DISPLAY (DISPLAY & KEY BOARD PART)
3-1. STATUS LAMP (▼)
· STEADY : Lamp is on when weight is stable.
· ZERO : Lamp is on when weight is “0”.
· TARE : Lamp is on when tare weight is subtracted.
· GROSS : Lamp is OFF when the weight display is for net (excluding tare) and it is
ON when the weight display is for gross (net + tare).
· AUTO : Lamp is on when print data out is set as automatic while it is steady.
· PRINT : Lamp is on when data is transmitted to external device. (Serial I/F : RS
232C)
· HOLD : Lamp is on when hold is used on the weight display value. (Peak-Hold, Sample
Hold, Average Hold)
· RTxD : Lamp is on when communication gives or receives data.
