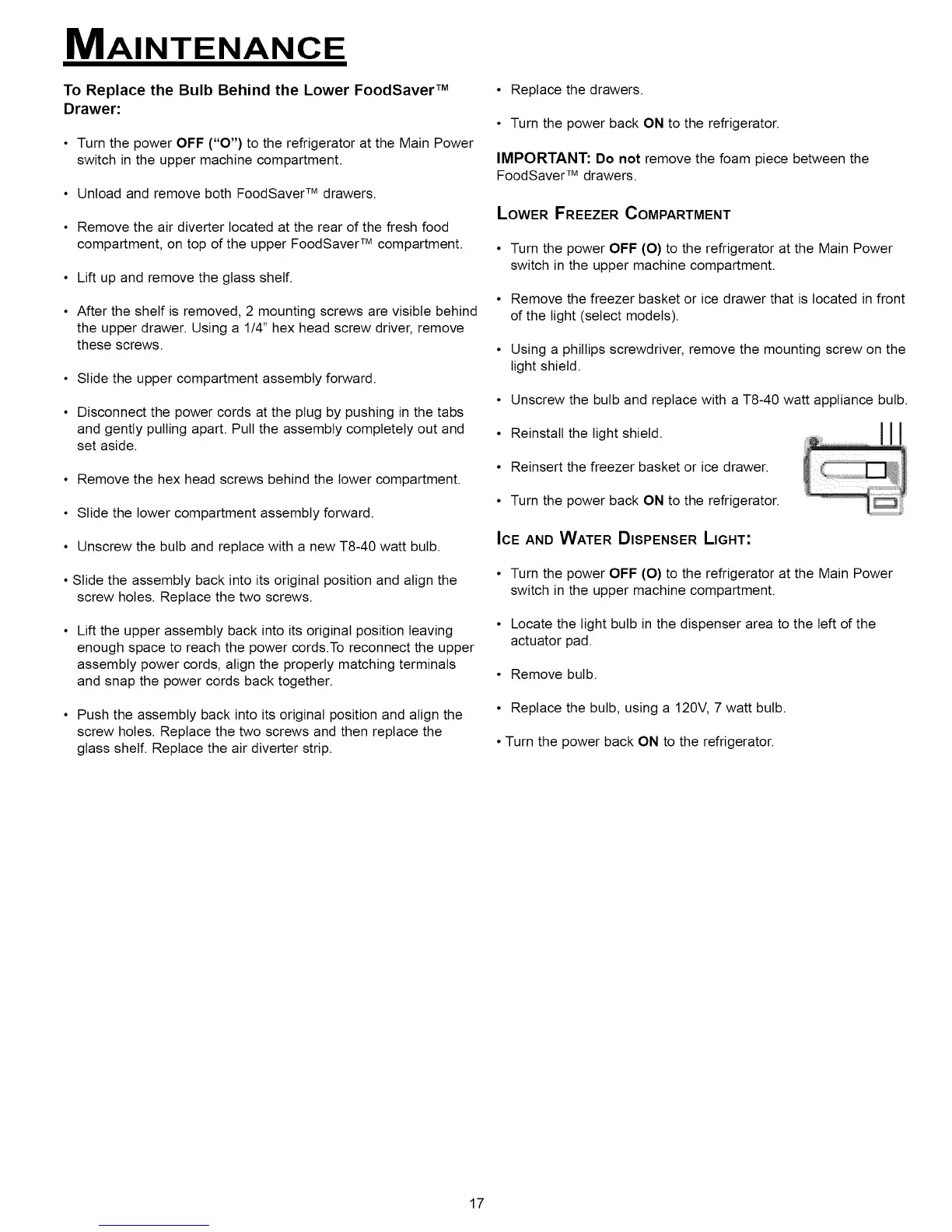

MAINTENANCE
To Replace the Bulb Behind the Lower FoodSaver TM
Drawer:
• Turn the power OFF ("O") to the refrigerator at the Main Power
switch in the upper machine compartment.
• Unload and remove both FoodSaver TM drawers.
• Remove the air diverter located at the rear of the fresh food
compartment, on top of the upper FoodSaver TM compartment.
• Lift up and remove the glass shelf.
• After the shelf is removed, 2 mounting screws are visible behind
the upper drawer. Using a 1/4" hex head screw driver, remove
these screws.
• Slide the upper compartment assembly forward.
• Disconnect the power cords at the plug by pushing in the tabs
and gently pulling apart. Pull the assembly completely out and
set aside.
• Remove the hex head screws behind the lower compartment.
• Slide the lower compartment assembly forward.
• Unscrew the bulb and replace with a new T8-40 watt bulb.
•Slide the assembly back into its original position and align the
screw holes. Replace the two screws.
Lift the upper assembly back into its original position leaving
enough space to reach the power cords.To reconnect the upper
assembly power cords, align the properly matching terminals
and snap the power cords back together.
• Push the assembly back into its original position and align the
screw holes. Replace the two screws and then replace the
glass shelf. Replace the air diverter strip.
• Replace the drawers.
• Turn the power back ON to the refrigerator.
IMPORTANT: Do not remove the foam piece between the
FoodSaver TM drawers.
LOWER FREEZER COMPARTMENT
• Turn the power OFF (O) to the refrigerator at the Main Power
switch in the upper machine compartment.
• Remove the freezer basket or ice drawer that is located in front
of the light (select models).
• Using a phillips screwdriver, remove the mounting screw on the
light shield.
• Unscrew the bulb and replace with a T8-40 watt appliance bulb.
• Reinstall the light shield.
• Reinsert the freezer basket or ice drawer.
• Turn the power back ON to the refrigerator.
ICE AND WATER DISPENSER LIGHT:
• Turn the power OFF (O) to the refrigerator at the Main Power
switch in the upper machine compartment.
• Locate the light bulb in the dispenser area to the left of the
actuator pad.
• Remove bulb.
• Replace the bulb, using a 120V, 7 watt bulb.
• Turn the power back ON to the refrigerator.
