Dishwasher Service Manual
Troubleshooting and Repair
86

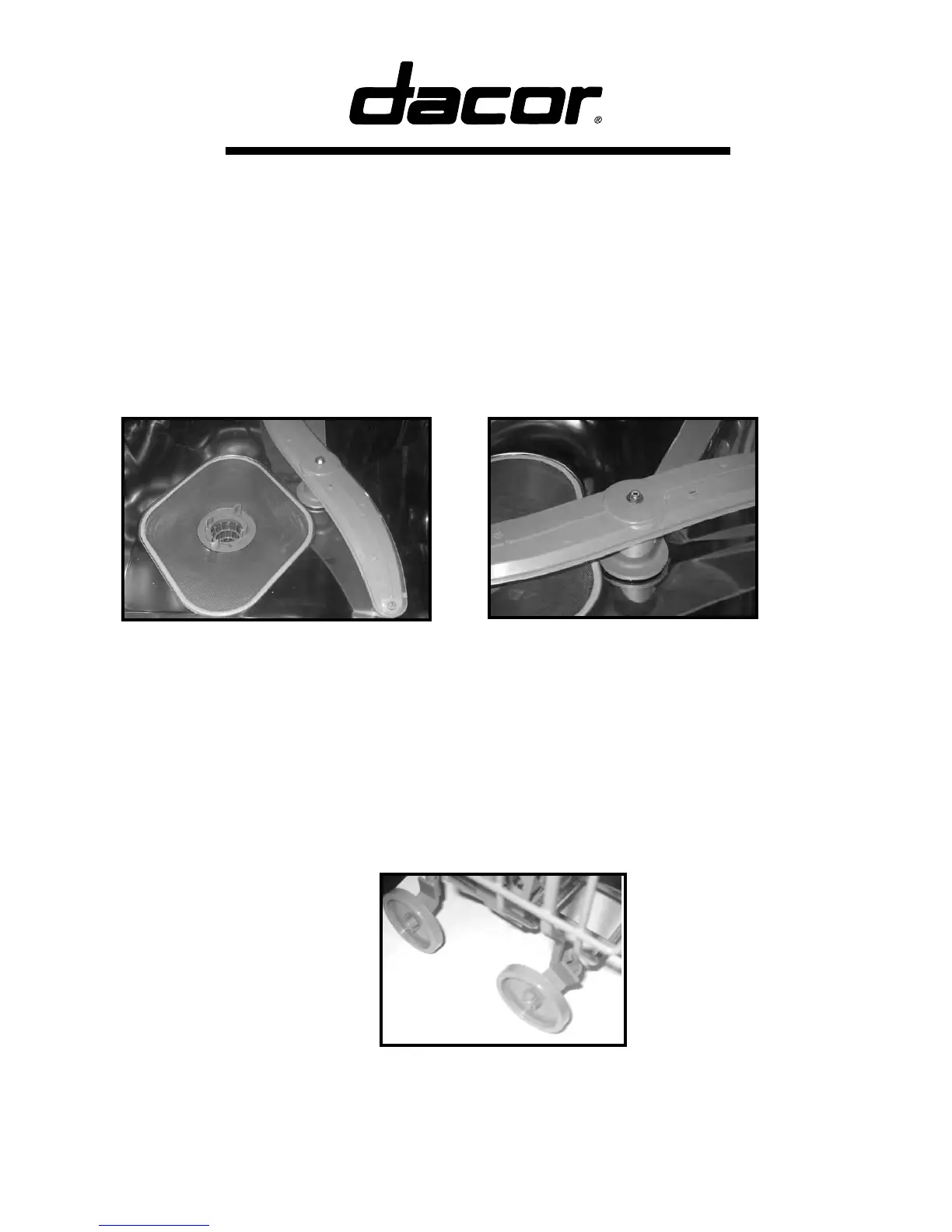

To remove the lower spray arm:
• R
emove the securing nut and washer from the top center portion of the arm assembly.
• Carefully lift straight up and pull the arm out of the unit.
17. Lower Spray Arm
18. Lower Rack Wheel Replacement
To remove old or defective wheel from the lower rack assembly:
• Pry the holder gently open.
• Rotate the wheel holder clockwise approx 90’ and pull wheel from wheel shaft on rack.
• Reverse this procedure to install new wheel.
17a
18a
17b
