Dishwasher Service Manual
70
Troubleshooting and Repair
Lower Component Access

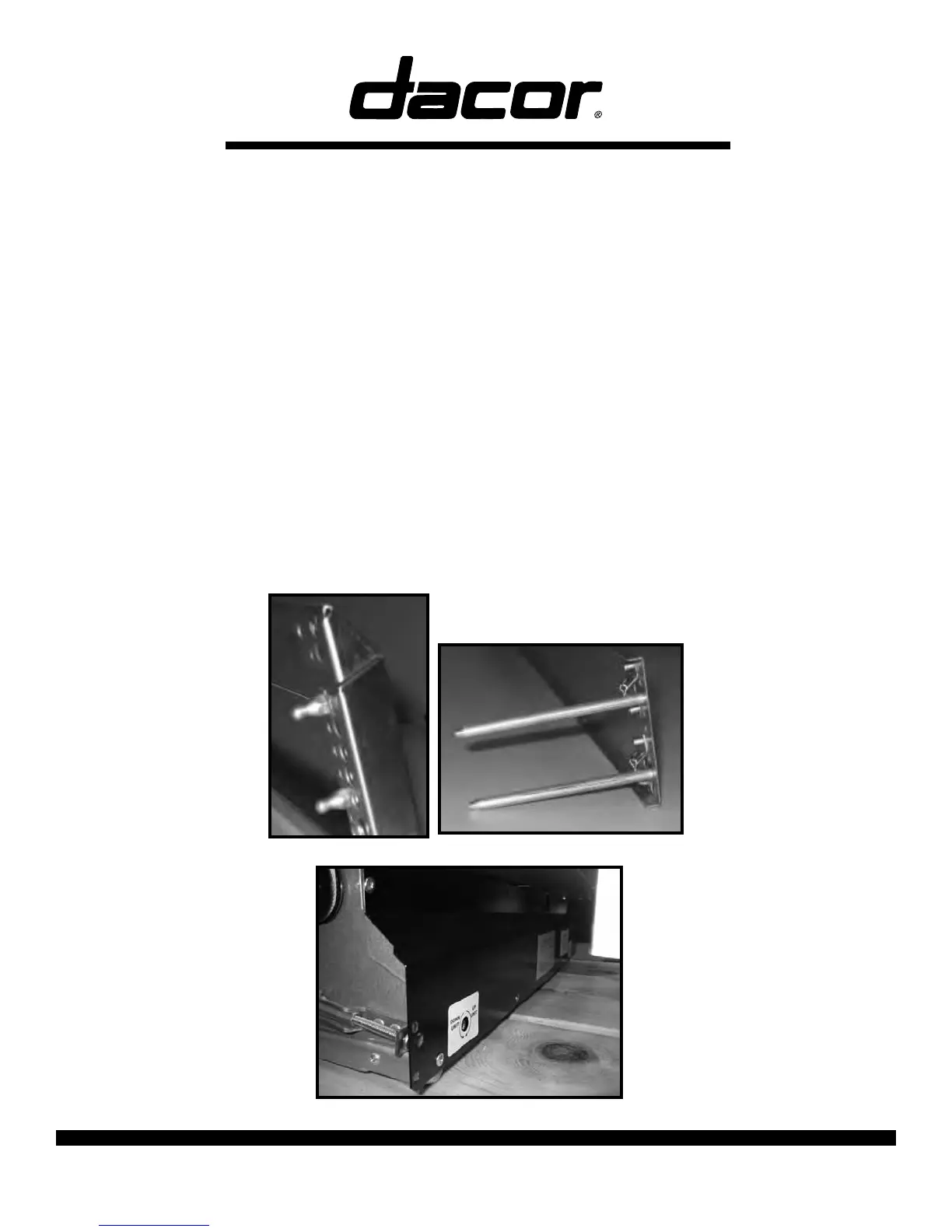

1. Toe Kick Panel
• Remove outer, toe kick (on ED models), (#1a) by pulling on both left and right sides
simultaneously (right side pictured). The assembly is secured by stud and catch fasteners.
This is a two piece vertically adjustable assembly to allow for counter height differences
(on ED models).
• Remove the inner toe kick, (#1b) by pulling simultaneously on both sides. The trim is
secured with four long shafts, which allow for the front to back adjustment to align with
cabinetry.
• Remove the inner access panel (#1c) by removing all of the phillip’s head screws that
secure the panel to the tank body. This allows access to the all of the serviceable base
components (1c).
1c
1a
1b
