Dacor DO130 Installation Instructions

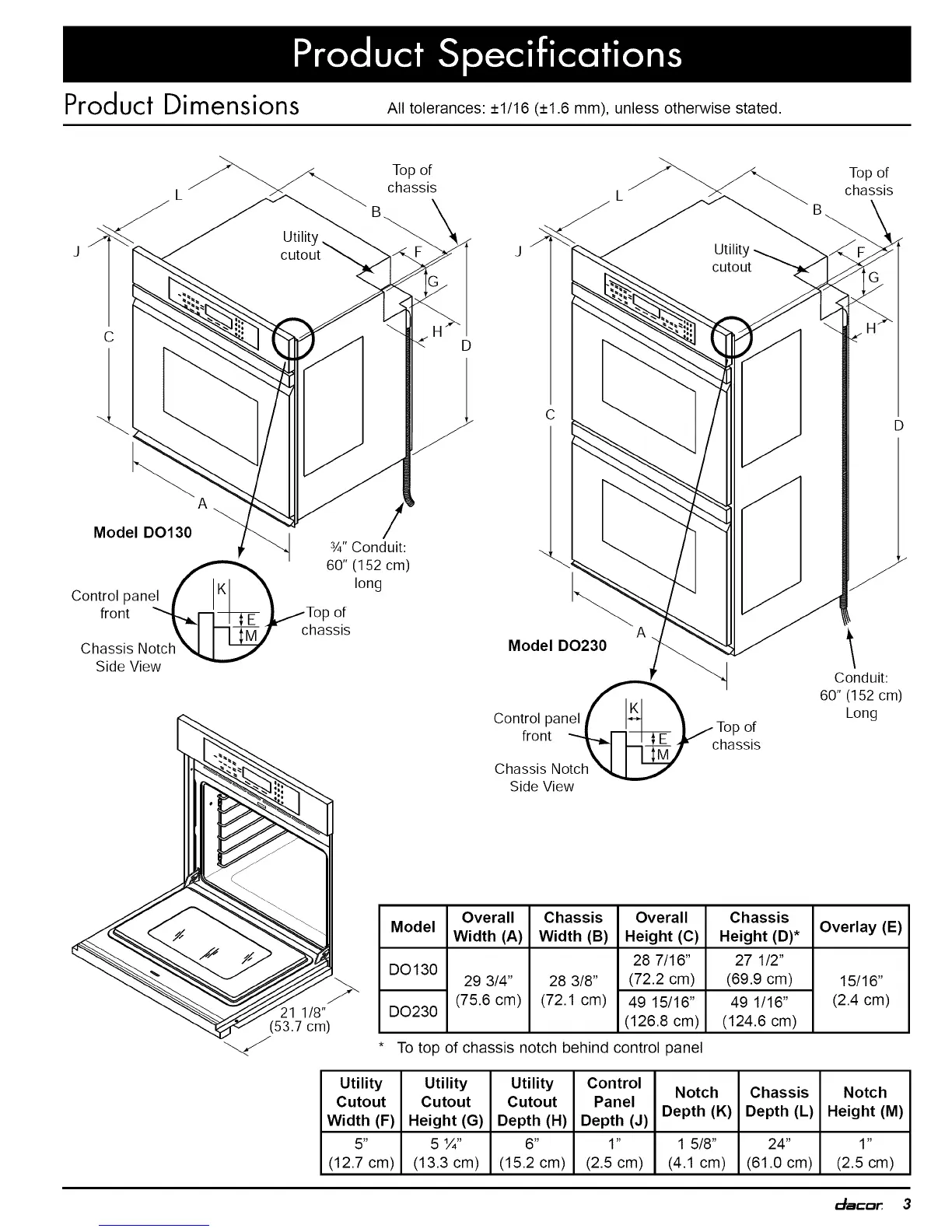

Product Dimensions All tolerances: +1/16 (+1.6 mm), unless otherwise stated.
/_.._/'_ Top of
L chassis
B
C
D
C
D
A
Model DO130
3A"Conduit:
60" (152 cm)
Control panel long
front _l_i _ _T°P of
\-1 I-IT'-I- chassis
Chassis Notch _
Side View
A
Model DO230
Control panel I I_-I I _ o
front _ch '°ps°Ts
Chassis Notch _
Side View
Conduit:
60" (152 cm)
Long
__11/8"
(53.7 cm)
Model
DO130
DO230
Overall
Width (A)
29 3/4"
(75.6 cm)
Chassis
Width (B)
28 3/8"
(72.1 cm)
Overall
Height (C)
28 7/16"
(72.2 cm)
49 15/16"
(126.8 cm)
Chassis
Height (D)*
27 1/2"
(69.9 cm)
49 1/16"
(124.6 cm)
Overlay (E)
15/16"
(2.4 cm)
* To top of chassis notch behind control panel
Utility Utility Utility Control
Notch Chassis Notch
Cutout Cutout Cutout Panel
Width (F) Height (G) Depth (H) Depth (J) Depth (K) Depth (L) Height (M)
5" 5 ¼" 6" 1" 1 5/8" 24" 1"
(12.7 cm) (13.3 cm) (15.2 cm) (2.5 cm) (4.1 cm) (61.0 cm) (2.5 cm)
_m=ar 3
