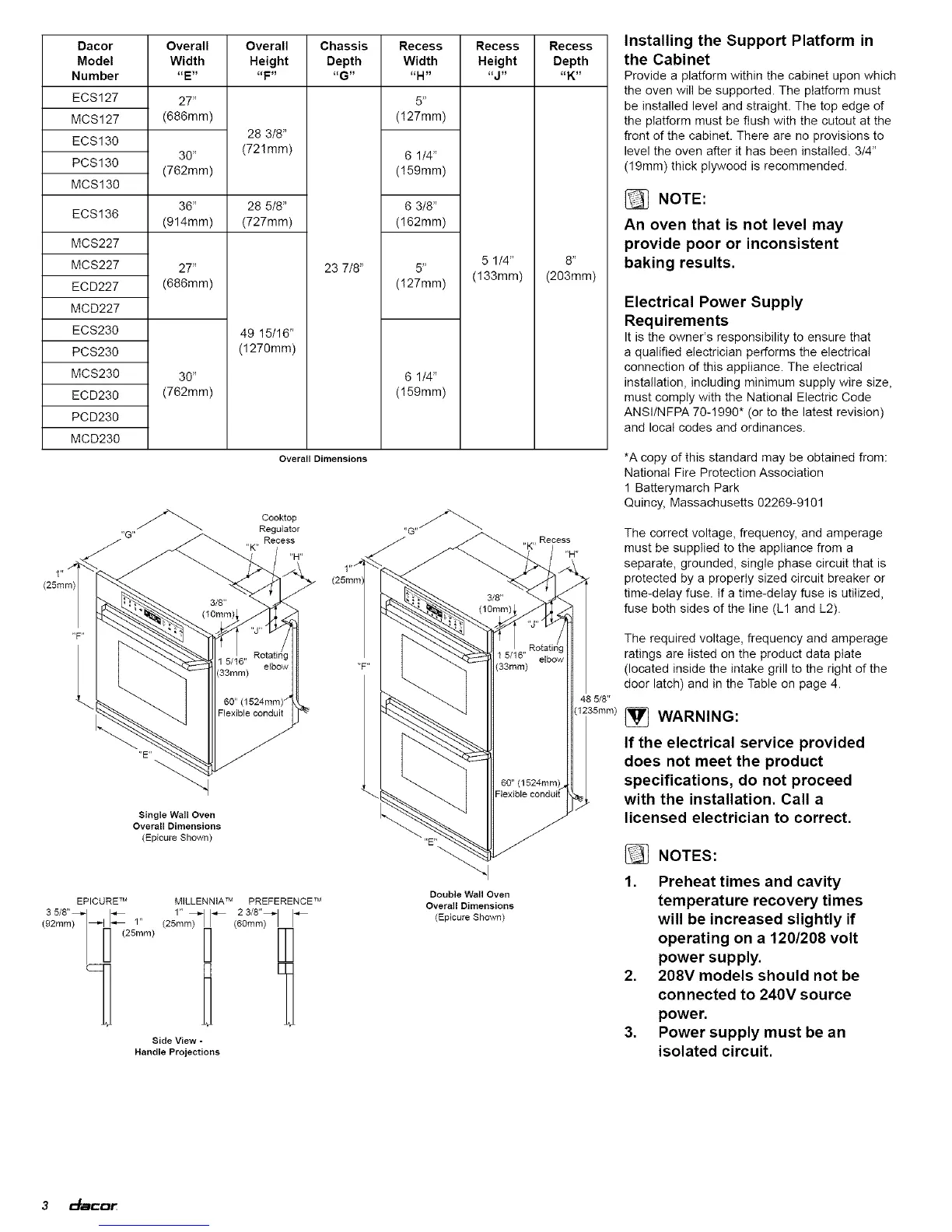

Dacor
Model
Number
ECS127
MCS127
ECS130
PCS130
MCS130
ECS136
MCS227
MCS227
ECD227
MCD227
ECS230
PCS230
MCS230
ECD230
PCD230
MCD230
Overall Overall Chassis Recess Recess Recess
Width Height Depth Width Height Depth
"E .... F .... G .... H.... J .... K"
27"
(686mm)
30"
(762mm)
36"
(914mm)
27"
(686mm)
30"
(762mm)
28 3/8"
(721mm)
28 5/8"
(727mm)
49 15/16"
(1270mm)
23 7/8"
5 _
(!27mm)
6 1/4"
(!59mm)
6 3/8"
(!62mm)
5 _,
(!27mm)
6 1/4"
(!59mm)
5 1/4"
(133mm)
Overall Dimensions
1"
(25mm)
Cooktop
Regulator "G"
Recess Recess
"H" "H"
(25ram)
Single Wall Oven
Overall Dimensions
(Epicure Shown)
EPICURE TM MILLENNIA TM PREFERENCE TM
Side View -
Handle Projections
4
"E"
Double Wall Oven
Overall Dimensions
(Epicure Shown)
8"
(203mm)
5/8"
Installing the Support Platform in
the Cabinet
Provide a platform within the cabinet upon which
the oven will be supported. The platform must
be installed level and straight. The top edge d
the platform must be flush with the cutout at the
front of the cabinet. There are no provisions to
level the oven after it has been installed. 3/4"
(19mm) thick plywood is recommended.
NOTE:
An oven that is not level may
provide poor or inconsistent
baking results.
Electrical Power Supply
Requirements
It is the owner's responsibility to ensure that
a qualified electrician performs the electrical
connection of this appliance. The electrical
installation, including minimum supply wire size,
must comply with the National Electric Code
ANSIINFPA 70-1990" (or to the latest revision)
and local codes and ordinances.
*A copy of this standard may be obtained from:
NationaI Fire Protection Association
1 Batterymarch Park
Quincy, Massachusetts 02269-9101
The correct voltage, frequency, and amperage
must be supplied to the appliance from a
separate, grounded, single phase circuit that is
protected by a properly sized circuit breaker or
time-delay fuse. If a time-delay fuse is utilized,
fuse both sides of the line (L1 and L2).
The required voltage, frequency and amperage
ratings are listed on the product data plate
(located inside the intake grill to the right of the
door latch) and in the Table on page 4.
[_ WARNING:
If the electrical service provided
does not meet the product
specifications, do not proceed
with the installation. Call a
licensed electrician to correct.
1.
,
,
NOTES:
Preheat times and cavity
temperature recovery times
will be increased slightly if
operating on a 120/208 volt
power supply.
208V models should not be
con nected to 240V source
power.
Power supply must be an
isolated circuit.
3 =::_=lcar:
