Dacor ECS230SCH Installation Instructions

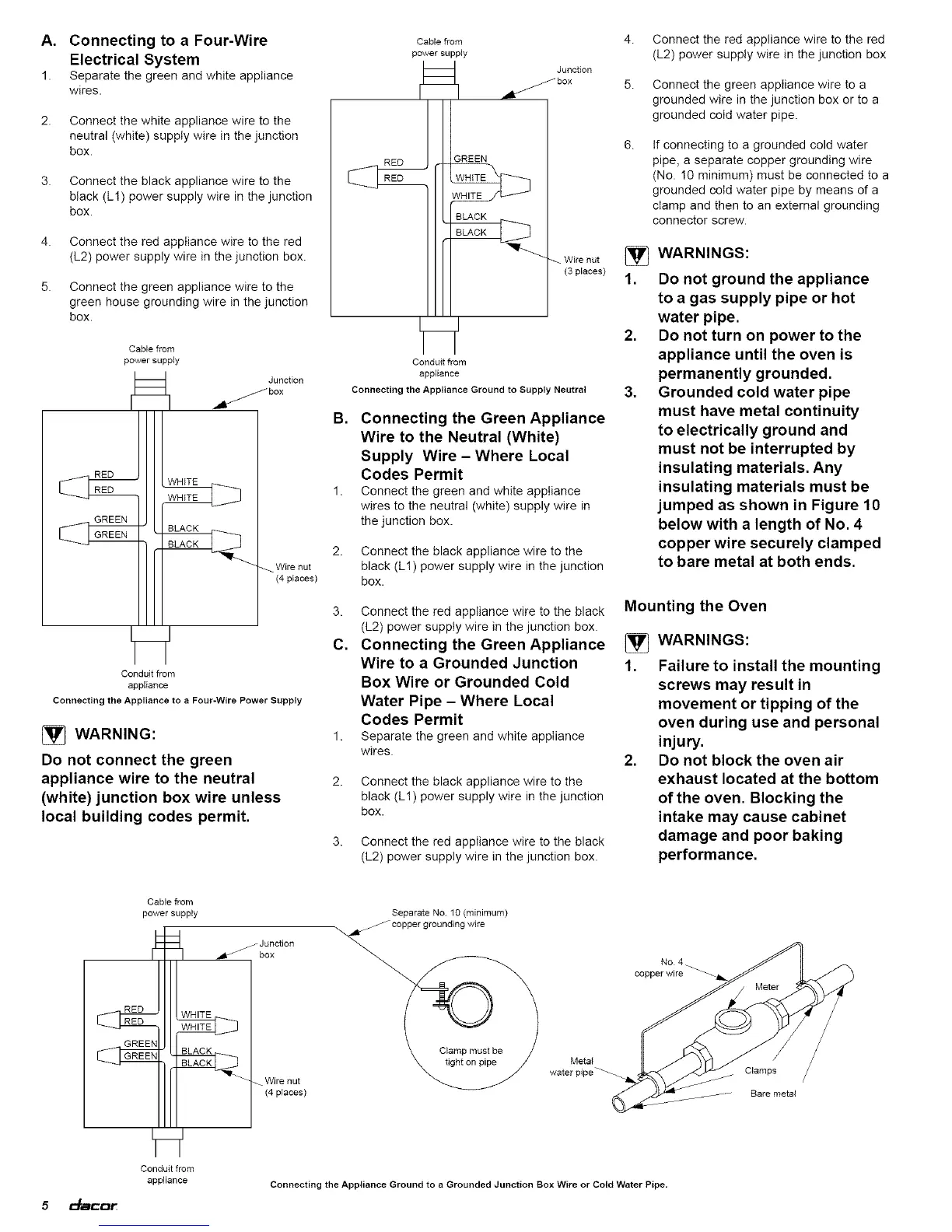

A. Connecting to a Four-Wire
Electrical System
1. Separate the green and white appliance
wires.
2. Connect the white appliance wire to the
neutral (white) supply wire in the junction
box.
3. Connect the black appliance wire to the
black (L!) power supply wire in the junction
box.
4. Connect the red appliance wire to the red
(L2) power supply wire in the junction box.
5. Connect the green appliance wire to the
green house grounding wire in the junction
box.
Cable from
power supply
[_] Junction
box
RED WHITE
RED WHITE
Wire nut
(4 places)
t-/
Conduit from
appliance
Connecting the Appliance to a Four-Wire Power Supply
WARNING:
Do not connect the green
appliance wire to the neutral
(white) junction box wire unless
local building codes permit.
Cable from
power supply
[_] Junction
_/box
RED GREEN
RED
Wire nut
(3 places)
Conduit from
appliance
Connecting the Appliance Ground to Supply Neutral
B. Connecting the Green Appliance
Wire to the Neutral (White)
Supply Wire - Where Local
Codes Permit
1. Connect the green and white appliance
wires to the neutral (white) supply wire in
the junction box.
2. Connect the black appliance wire to the
black (L!) power supply wire in the junction
box.
3. Connect the red appliance wire to the black
(L2) power supply wire in the junction box.
C. Connecting the Green Appliance
Wire to a Grounded Junction
Box Wire or Grounded Cold
Water Pipe - Where Local
Codes Permit
1. Separate the green and white appliance
wires.
2. Connect the black appliance wire to the
black (L!) power supply wire in the junction
box.
3. Connect the red appliance wire to the black
(L2) power supply wire in the junction box.
4.
5.
1.
.
.
Connect the red appliance wire to the red
(L2) power supply wire in the junction box
Connect the green appliance wire to a
grounded wire in the junction box or to a
grounded cold water pipe.
If connecting to a grounded cold water
pipe, a separate copper grounding wire
(No. 10 minimum) must be connected to a
grounded cold water pipe by means of a
clamp and then to an external grounding
connector screw.
WARNINGS:
Do not ground the appliance
to a gas supply pipe or hot
water pipe.
Do not turn on power to the
appliance until the oven is
permanently grounded.
Grounded cold water pipe
must have metal continuity
to electrically ground and
must not be interrupted by
insulating materials. Any
insulating materials must be
jumped as shown in Figure 10
below with a length of No. 4
copper wire securely clamped
to bare metal at both ends.
Mounting the Oven
1.
.
WARNINGS:
Failure to install the mounting
screws may result in
movement or tipping of the
oven during use and personal
injury.
Do not block the oven air
exhaust located at the bottom
of the oven. Blocking the
intake may cause cabinet
damage and poor baking
performan ce.
Cable from
power supply
[_ /_ction
RED WHITE
RED WHITE
GREEN BLACK
__ _ Wire nut
(4 places)
Conduit from
appliance
Separate No 10 (minimum)
copper grounding wire
Metal
water pipe "_
Connecting the Appliance Ground to a Grounded Junction Box Wire or Cold Water Pipe.
No 4
copper wire _
/
Clamps
Bare metal
