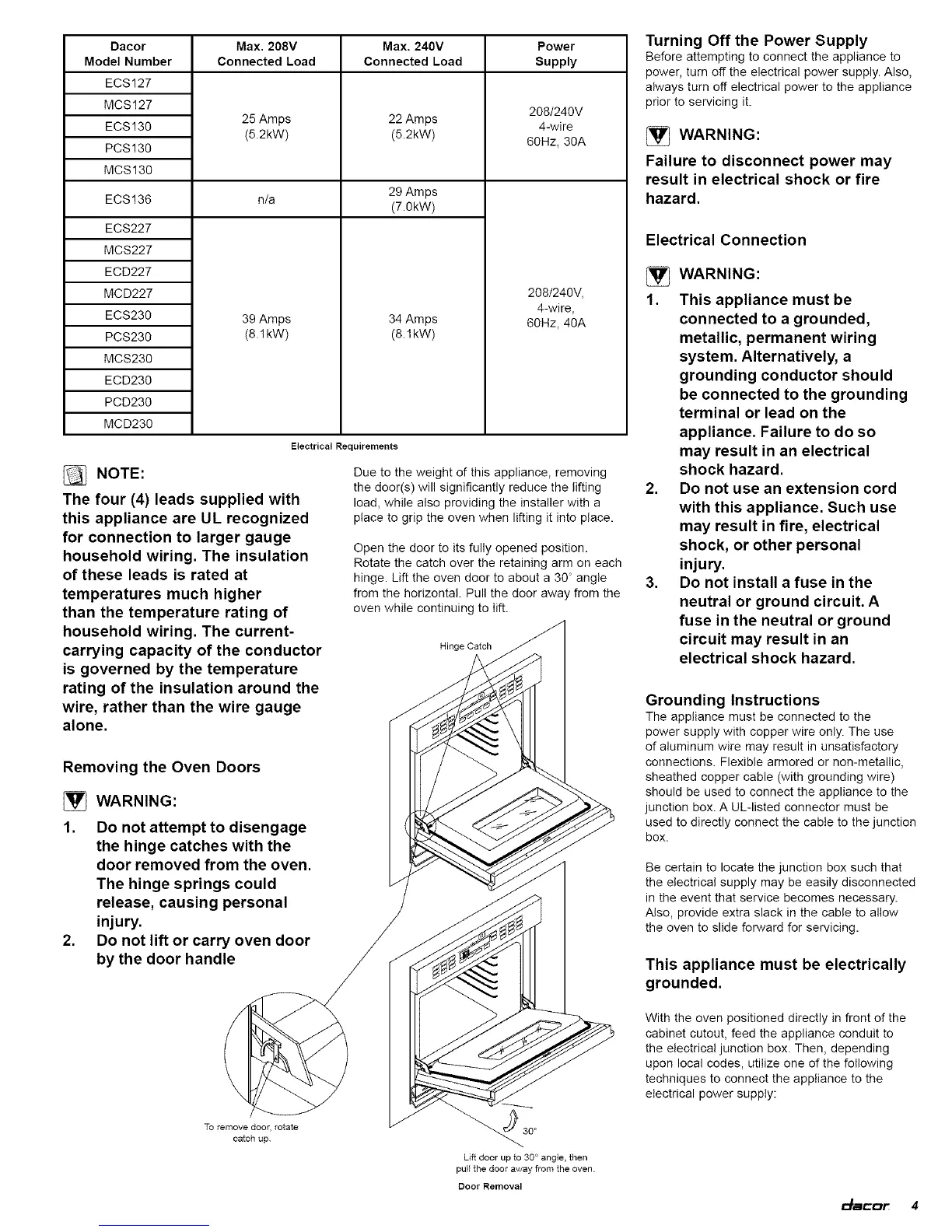

Dacor
Model Number
ECS127
MCS127
ECS130
PCS130
MCS130
ECS 136
ECS227
MCS227
ECD227
MCD227
ECS230
PCS230
MCS230
ECD230
PCD230
MCD230
Max, 208V Max, 240V Power
Connected Load Connected Load Supply
25 Amps
(5.2kW)
22 Amps
(5.2kW)
39 Amps
(8.1 kW)
n/a 29 Amps
(7.0kW)
34 Amps
(8.1 kW)
208/240V
4-wire
60Hz, 30A
208/240V,
4-wire,
60Hz, 40A
Electrical Requirements
NOTE:
The four (4) leads supplied with
this appliance are UL recognized
for connection to larger gauge
household wiring. The insulation
of these leads is rated at
temperatures much higher
than the temperature rating of
household wiring. The current-
carrying capacity of the conductor
is governed by the temperature
rating of the insulation around the
wire, rather than the wire gauge
alone.
Due to the weight of this appliance, removing
the door(s) will significantly reduce the lifting
load, while also providing the installer with a
place to grip the oven when lifting it into place.
Open the door to its fully opened position.
Rotate the catch over the retaining arm on each
hinge. Lift the oven door to about a 30 ° angle
from the horizontal. Pull the door away from the
oven while continuing to lift.
Hinge Catch
Removing the Oven Doors
[_ WARNING:
1. Do not attempt to disengage
the hinge catches with the
door removed from the oven.
The hinge springs could
release, causing personal
injury.
2. Do not lift or carry oven door
by the door handle
Turning Off the Power Supply
Before attempting to connect the appliance to
power, turn off the electrical power supply. Also,
always turn off electrical power to the appliance
prior to servicing it.
_} WARNING:
Failure to disconnect power may
result in electrical shock or fire
hazard.
Electrical Connection
1.
.
.
WARNING:
This appliance must be
connected to a grounded,
metallic, permanent wiring
system. Alternatively, a
grounding conductor should
be connected to the grounding
terminal or lead on the
appliance. Failure to do so
may result in an electrical
shock hazard.
Do not use an extension cord
with this appliance. Such use
may result in fire, electrical
shock, or other personal
injury.
Do not install a fuse in the
neutral or ground circuit. A
fuse in the neutral or ground
circuit may result in an
electrical shock hazard.
Grounding Instructions
The appliance must be connected to the
power supply with copper wire only. The use
of aluminum wire may result in unsatisfactory
connections. Flexible armored or non-metallic,
sheathed copper cable (with grounding wire)
should be used to connect the appliance to the
junction box. A UL-listed connector must be
used to directly connect the cable to the junction
box.
Be certain to locate the junction box such that
the electrical supply may be easily disconnected
in the event that service becomes necessary.
Also, provide extra slack in the cable to allow
the oven to slide forward for servicing.
This appliance must be electrically
grounded.
To remove door, rotate
catch up.
::_30 o
Lift door up to 30 ° angle, then
pull the door away from the oven
Door Removal
With the oven positioned directly in front of the
cabinet cutout, feed the appliance conduit to
the electrical junction box. Then, depending
upon local codes, utilize one of the following
techniques to connect the appliance to the
electrical power supply:
_aCQ_
To Next Page
