8
Installation Instructions
Installing an ERV Raised Vent (Optional)
Install the ERV raised vent before installing the range. See the
ERV installation instructions, part no. 103106.
IMPORTANT: The ERV series raised vent attaches to the narrow
back portion of the ERV style cutout. It is self-supporting in the
cutout and does not actually attach to the range itself.

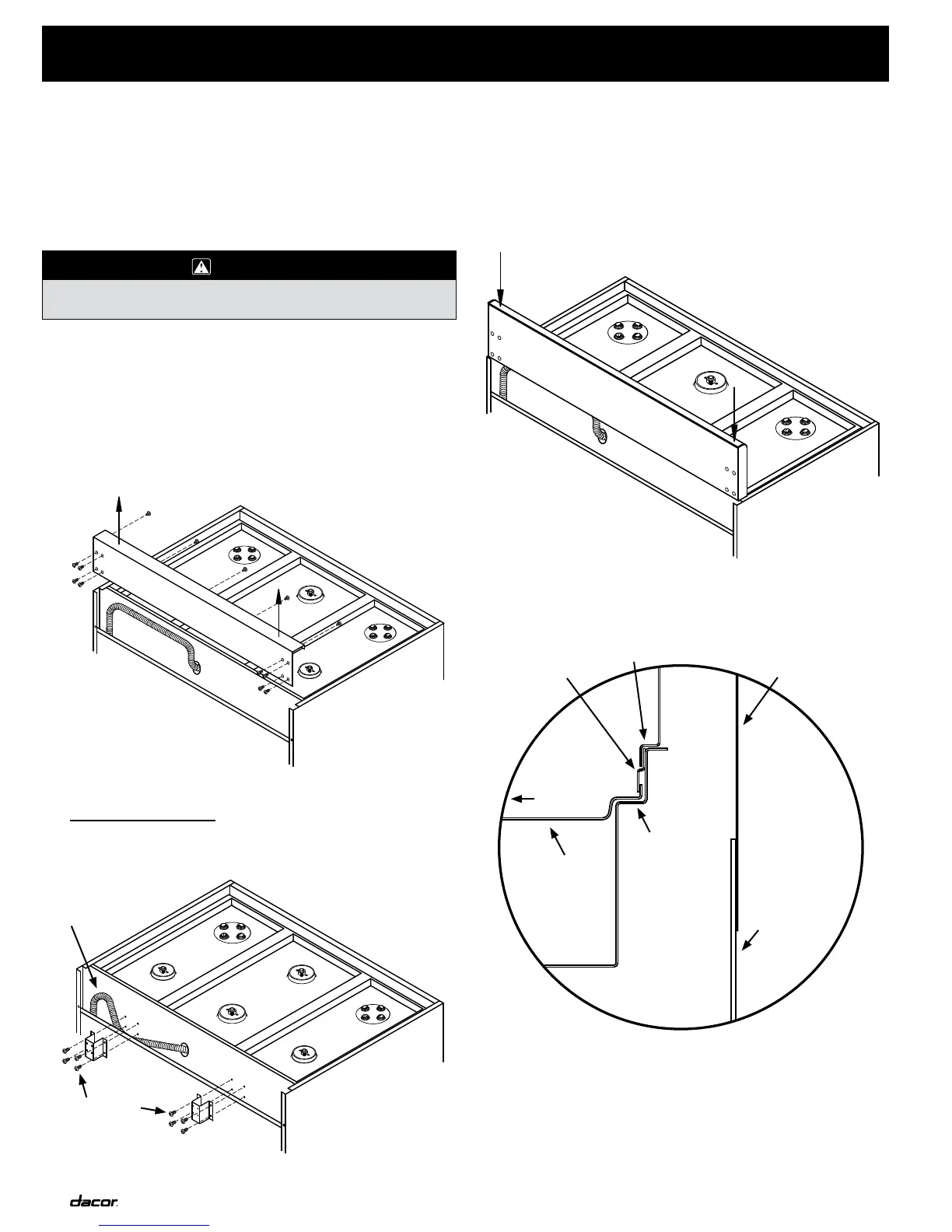

Installing a Backguard (Optional)
WARNING
Do not operate the range without the island trim or a backguard
installed.
NOTES:
Install the backguard before making the range gas and
electrical connections.
Dacor recommends that the 24 inch backguard be installed
by at least two people.
To install a backguard:
Remove the thirteen (13) screws on the front and back of the
island trim and slide the trim off the unit.
Remove the backguard from its box.
24 inch backguard only: Use eight (8) hex screws from the
backguard kit to attach the support brackets to the range
chassis. Make sure the gas line is positioned under the
bracket as shown below.
•
•
1.
2.
3.
To avoid scratches, place small scraps of thin cardboard on
the rear of the side panels where the backguard will make
contact. Place the backguard over the back of the range.
Special attention should be given to the lower flange in front
of the backguard, which must fit between the stainless steel
side panels and over the existing stainless steel trim piece
(see range side detail below). On the 24 inch backguard:
The “C” channels on the backguard slide into the brackets on
the range chassis.
4.
Trim Removal
Front of
Range
Spill Tray
Cooktop
Chassis
Stainless Steel
Trim Piece
Range Back
Cover
Back of
Backguard
Front Flange
of Backguard
Range Side Detail
Sliding the Backguard into Place
Support Bracket Installation for 24 inch Backguard
Gas Line
Hex Screw,
8 Places
To Next Page
