11
Installation Instructions
Loop and
Spade Terminal
Connections
Bare Wire
Connections

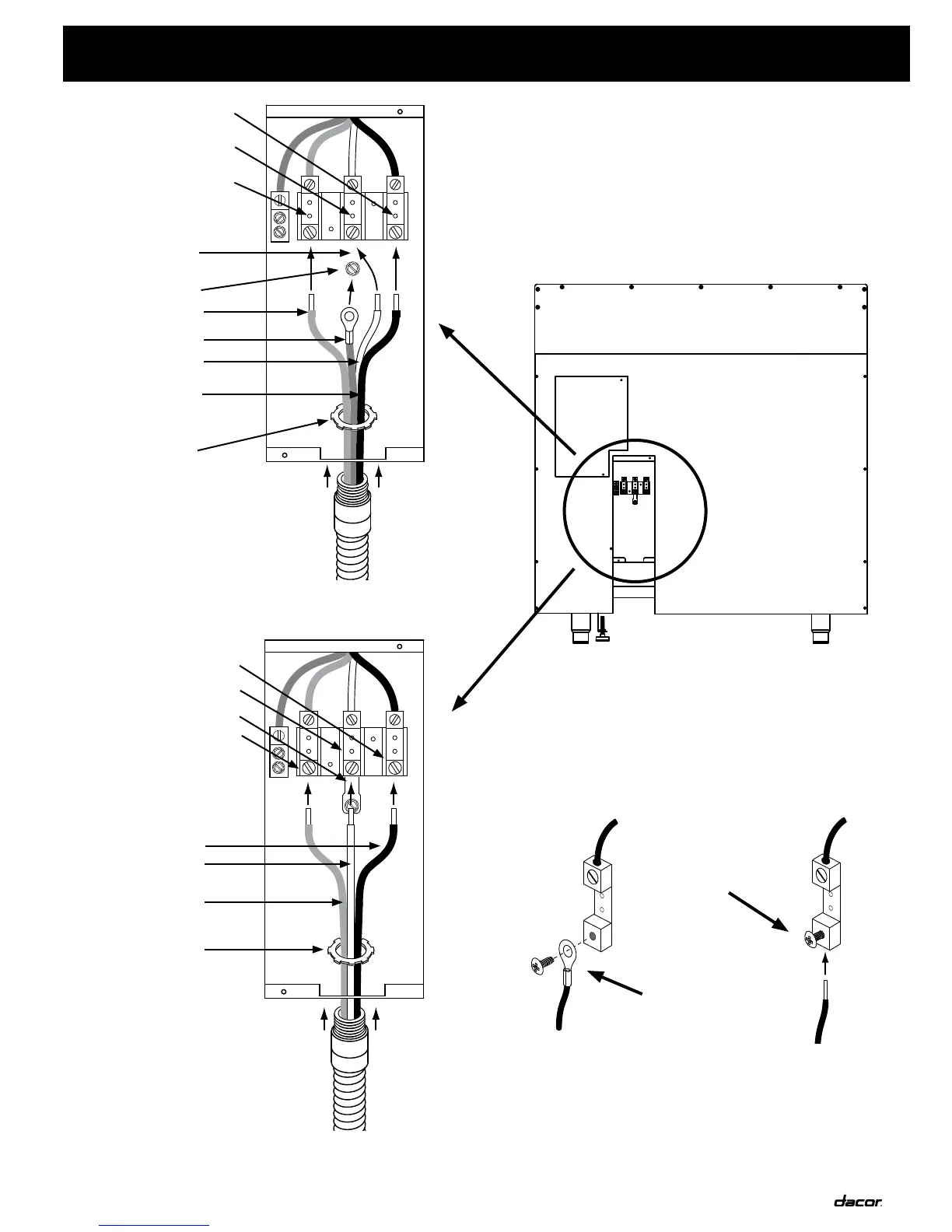

Connecting 4 Wire Conduit to Range
Conduit Strain
Relief Nut
Red Wire
White Wire
Green Wire
Neutral Terminal
L1 Terminal
L2 Terminal
Jumper Removed
Black Wire
Grounding Screw
Connecting 3 Wire Conduit to Range -
Where Local Code Permits
Conduit Strain
Relief Nut
Red Wire
White Wire
Black Wire
Neutral Terminal
L1 Terminal
L2 Terminal
Jumper Link
