13
Installation Instructions

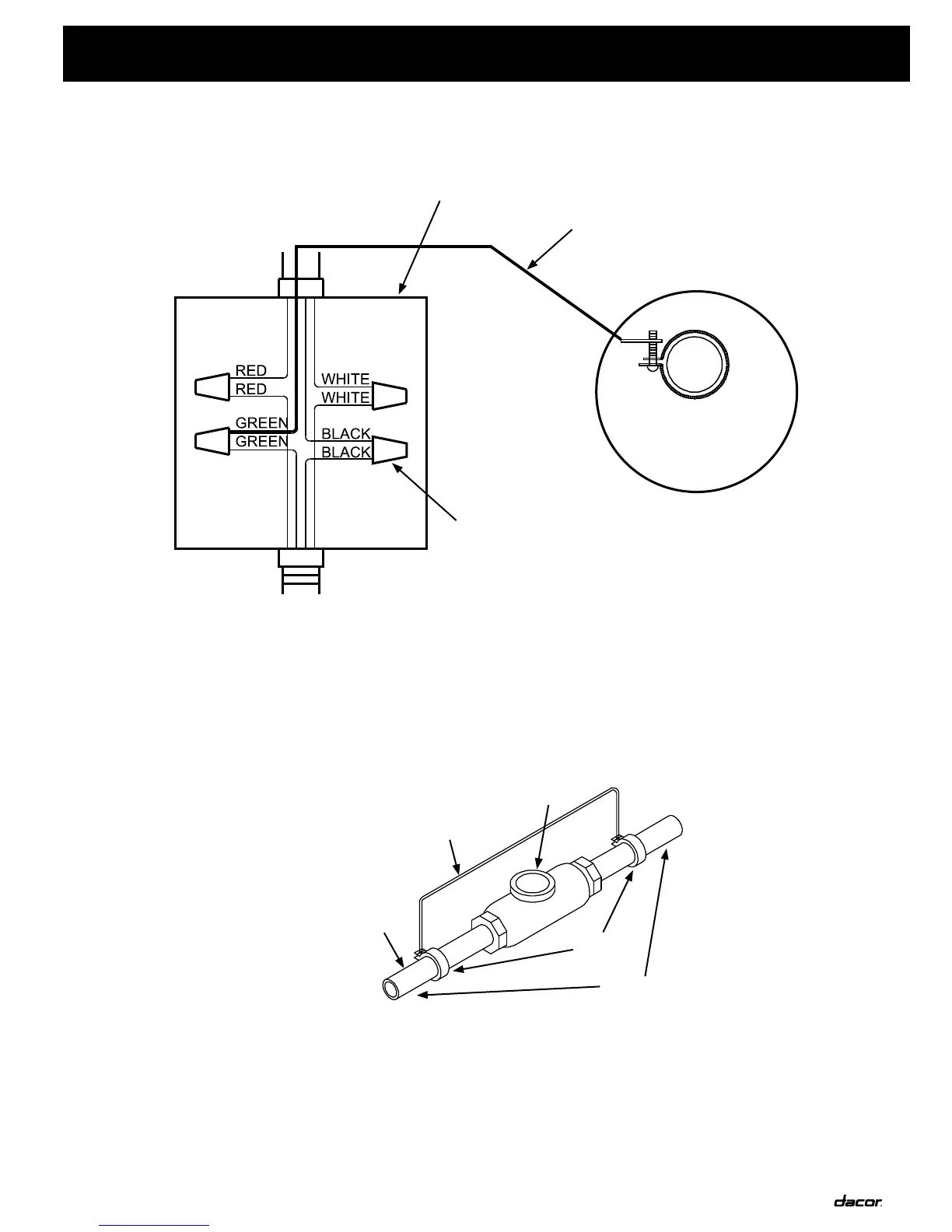

Junction Box - 4 Wire Connection with External Ground
Connection to
power supply
Separate No. 10 (minimum
copper grounding wire
Junction Box
Fasten clamp tightly
on pipe
Wire Nut,
4 Places
Clamps
Metal
Water Pipe
No. 4
copper wire
Meter
Bare metal
Insulated Pipe Jumper
Connect to
appliance (page 10)
