10
Installation Instructions

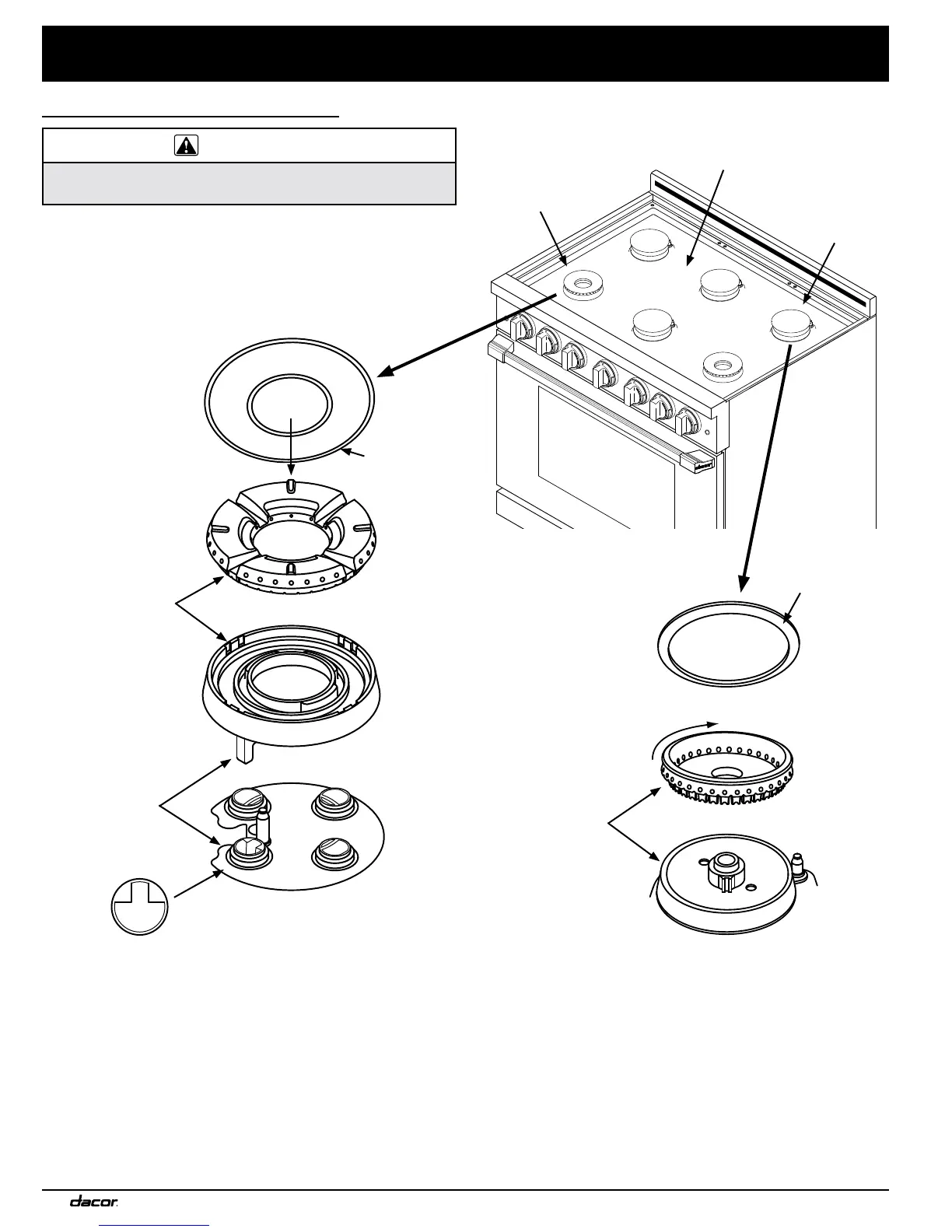

Assembling the Cooktop
WARNING
Do not use the cooktop unless all burner components and
grates are properly in place.
• The range uses standard and SimmerSear burners.
• Use porcelain or brass burner caps as you prefer.
• When assembling the burners, rotate/adjust each part until it
seats securely in place for proper function.
• Gently set the grates in the spill tray so the feet of each grate
rest in their corresponding dimples formed into the spill tray.
Standard Burner Installation
STEP 1: Put burner
ring on top of head.
STEP 2: Turn ring until it
drops into place.
STEP 3: Install burner
caps. Ridge on cap must
surround top of ring.
Burner
head
Burner
ring
Ridge on
bottom of
burner cap
SimmerSear
burner
Standard
burner
Spill tray
SimmerSear Burner Installation
STEP 1: Install
burner head. Put
locating tab in
keyed hole.
STEP 2: Install
burner ring. Line up
ring tabs with head
slots.
STEP 3: Install burner
cap. Ridge on cap must
surround top of ring.
Burner ring
Burner base
Burner head
Ridge on
bottom of
burner cap
Keyed
hole
