The raised vent exhaust may be configured to vent
through the bottom or through one of the sides. Allow
room for the exhaust duct coming out of the unit.
See Planning the Duct Work (page 7) for additional
details.
The maximum allowable duct run must be taken
into consideration when determining the layout. See
Planning the Duct Work for further details.
• Access from the front of the cabinet to the underside of
the cooktop, the vent system and the electrical and gas
supplies for the cooktop and vent must be provided for
inspection and service, Any drawers or shelves placed
below the cooktop and in front of the vent must be easy
to remove for access to the cooktop, vent and utilities,
• For installation with gas cooktops, a 90-degree elbow
must be connected to the cooktop gas inlet (see dia-
gram at right) to avoid interference with the raised
vent's front panel,
REMP16 series
remote blower
90° elbow
Gas line with
regulator
attached
Raised vent with
cabinet blower
mounted to front
Cabinet blower
3 1/4" X 10"
to 10" round
transition and 45 °
adjustable elbow
Cooktop
]
board
Backsplash
Duct work
between raised
vent and remote
blower
Raised vent
configured for
bottom exhaust
Floor
Wiring/conduit that supplies power
to remote blower (see Electrical
Installation, page 10)

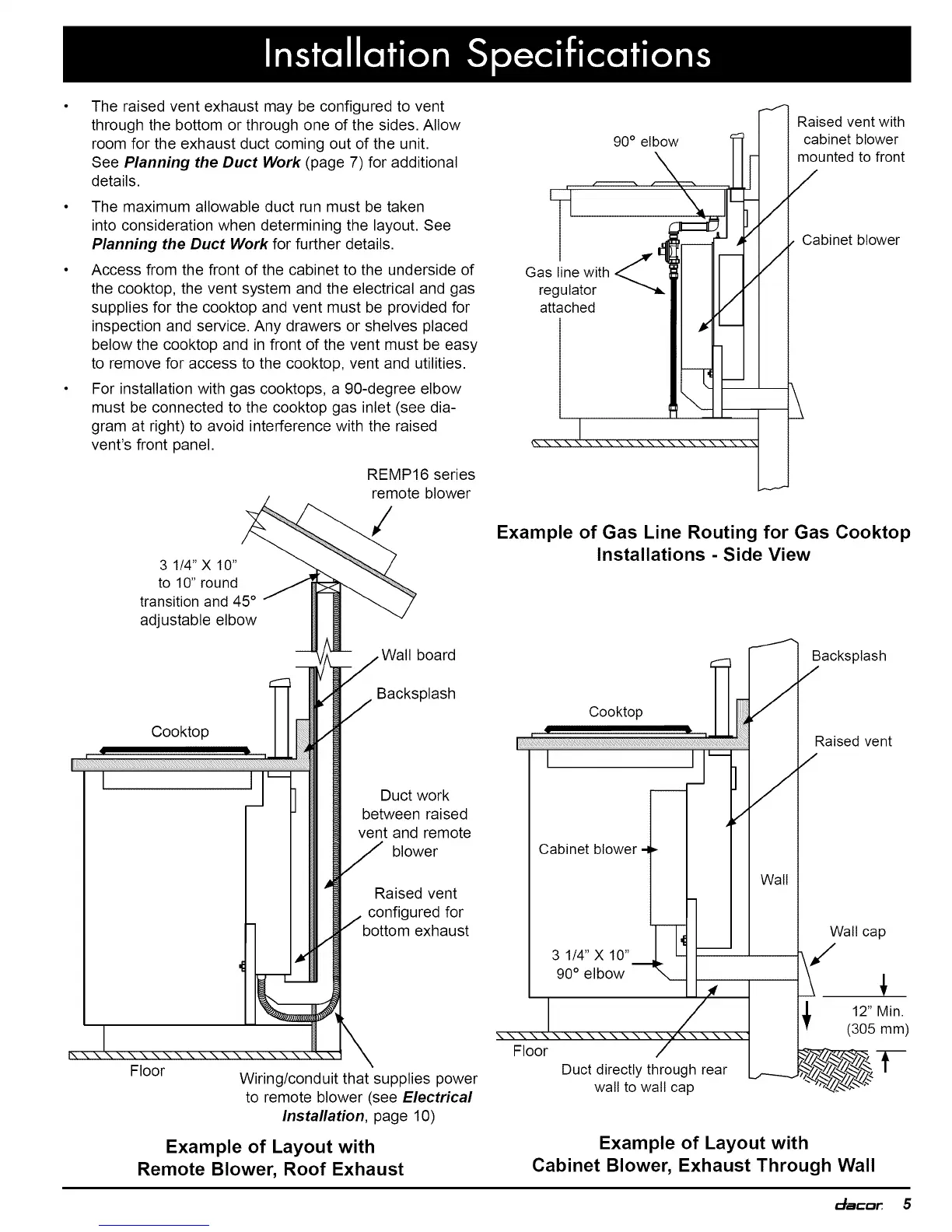

Example of Layout with
Remote Blower, Roof Exhaust
Example of Gas Line Routing for Gas Cooktop
Installations - Side View
Cooktop
Cabinet blower ,_
3 1/4" X 10"
90° elbow
]
Floor
Duct directly through rear
wall to wall cap
Wall
Backsplash
/
Raised vent
Wall cap
12" Min.
(305 mm)
-F
Example of Layout with
Cabinet Blower, Exhaust Through Wall
_mCD_ 5
