Dacor RV46 - Page 8

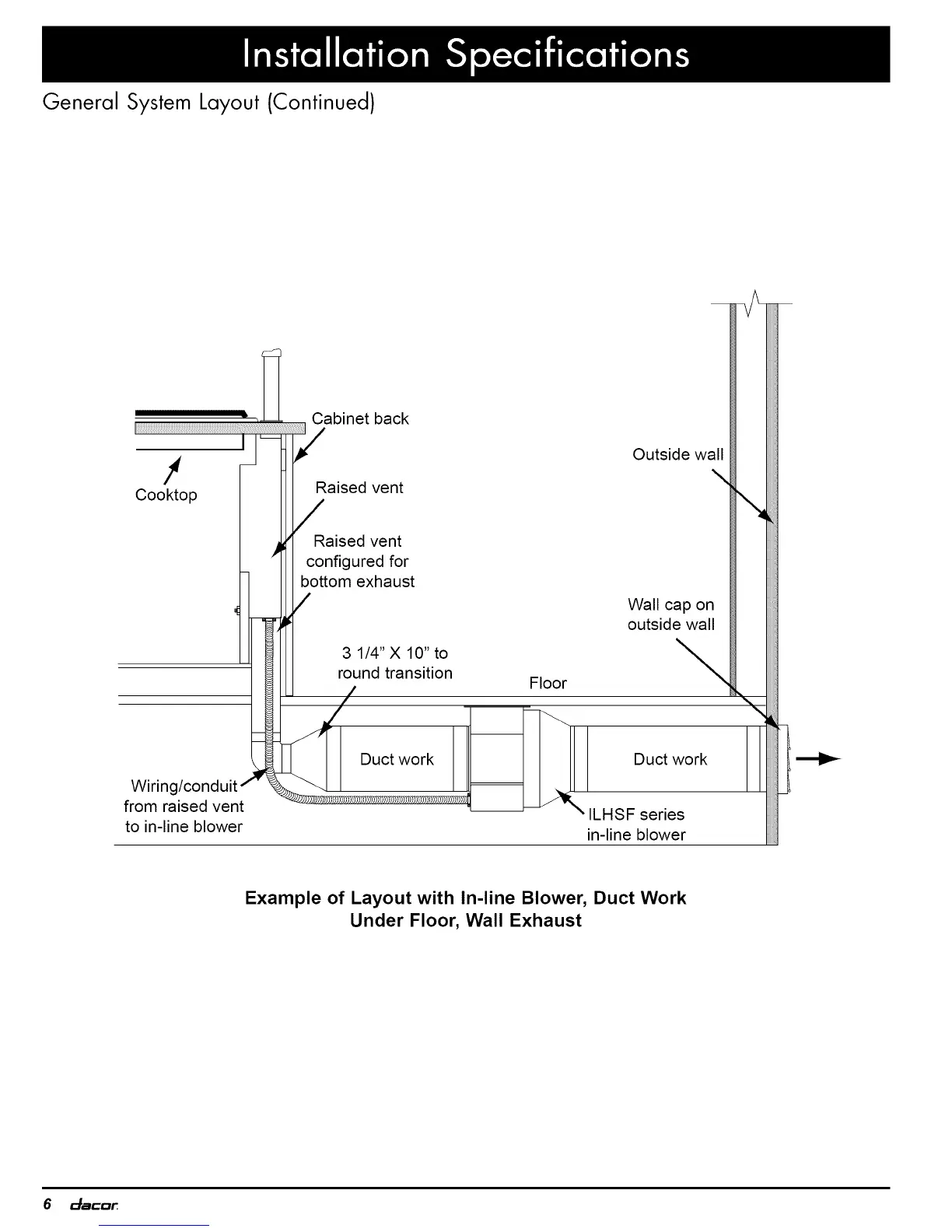

General System Layout (Continued)
/
Cooktop
Wiring,
from raised vent
to in-line blower
Cabinet back
Raised vent
Raised vent
configured for
bottom exhaust
/
3 1/4" X 10" to
round transition
Floor
Outside wall
Wall cap on
outside wall
Duct work Duct work
ILHSF series
in-line blower
Example of Layout with In-line Blower, Duct Work
Under Floor, Wall Exhaust
6 _mC_
