<SPEEDOMETER>
Indicates driving speed. Maintain legal
speed limits to ensure safe operation.
<ODOMETER>
Indicates total distance in kilometers
travelled by the vehicle.
<FUEL METER>
The fuel meter indicates the gasoline level
inside the fuel tank.
Gasoline should be put in the fuel tank as
soon as possible if the needle is resting in
the red area.
FUEL TANK CAPACITY : 11.5
ℓℓ
RESERVIOR CAPACITY : 2.2
ℓℓ
<WINKER INDICATOR>
When the winker switch is operated,
the winker indicator flashes in union
with the flashing of the turn signals.
<WATER TEMPERATURE INDICATOR>
It indicates the temperature of cooling
water. The needle of indicator shall be
within the normal range (between C and H).
10

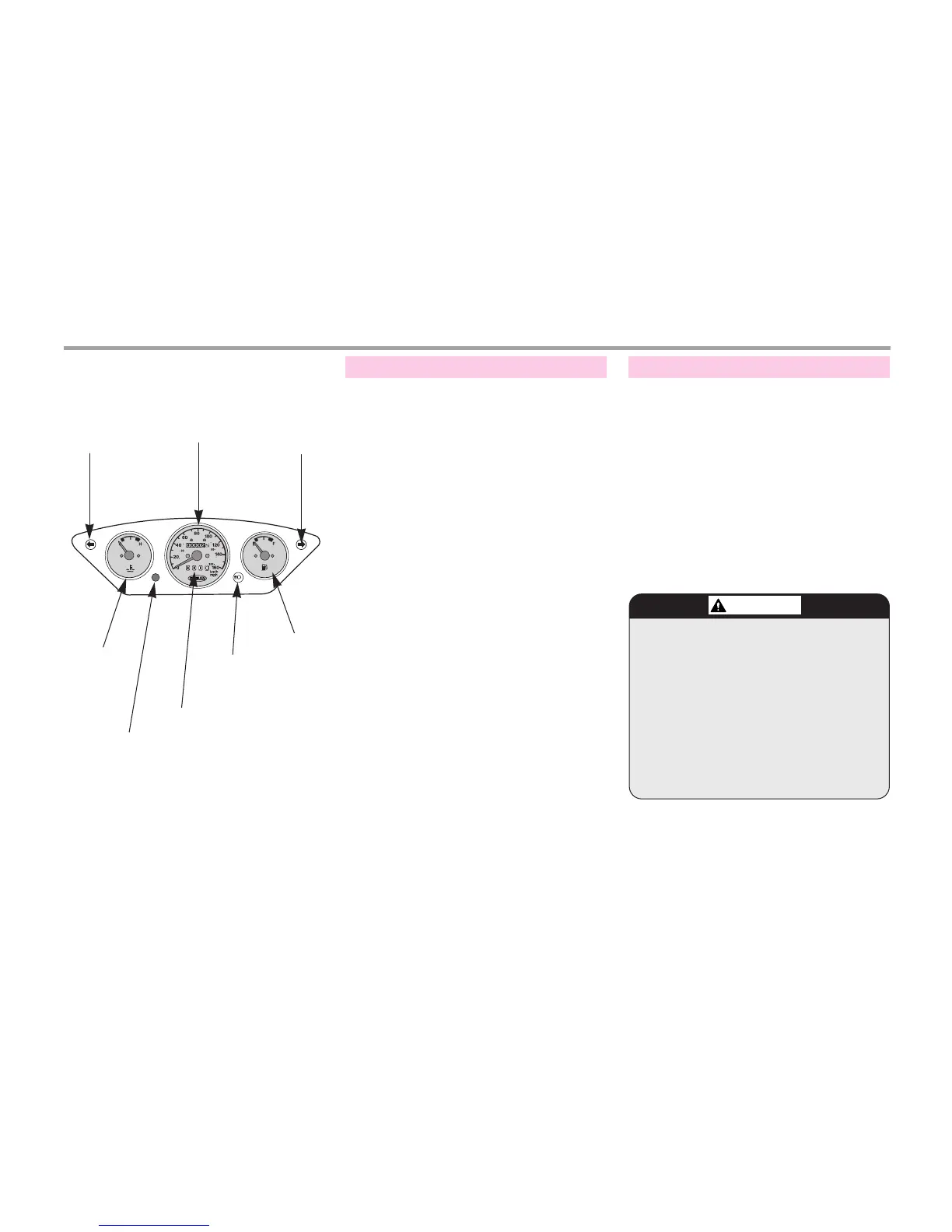

METER READING AND USAGE
METER
INDICATOR LAMPS
SPEEDOMETER
FUEL METER
HEADLIGHT
HIGHBEAM
INDICATOR
WINKER
INDICATOR
WINKER
INDICATOR
ODOMETER
ODOMETER RESET BUTTON
WATER TEMP.
INDICATOR
●If the needle of indicator points “H”,
engine may be overheated. Stop the
engine, and check the volume of
cooling water and the operating
condition of cooling fan motor.
●If the cooling system is abnormal,
engine performance will drop and the
piston will be stuck. It is very serious
problem.
