<FRONT WHEEL REMOVAL>
① Raise the front wheel off the ground
by placing a support block under the
engine.
② Loosen the oval screw and remove the
speedometer cable.
③ Remove the front caliper assembly
from the front fork by removing the
fixing bolts.
④ Loosen the axle nut.
⑤ Withdraw the front wheel axle and
remove the front wheel.
⑥ Install in the reverse order of removal.
Prior to assembling, match the
depressed part() of the speedometer
gear box with the projected part of the
left front fork.
Fit the caliper over the disk, taking care
not to damage the brake pads. Install
the caliper fixing bolts, and tighten to a
torque of : 2.8~3.4kgf
··
m
Tighten the front axle nut to the specified
torque.
FRONT AXLE NUT TORQUE
: 5.0~7.0kgf
··
m
⑦ After assembling, operate brake for a
number of times and see if wheel is
turning smoothly without getting
interruption.
WHEEL REMOVAL
●Do not operate brake lever after the
front wheel is removed. It will make
wheel assembling difficult.
●When installing the wheel, care- fully
fit the left brake disk between the
brake pads to avoid damaging the
pads.

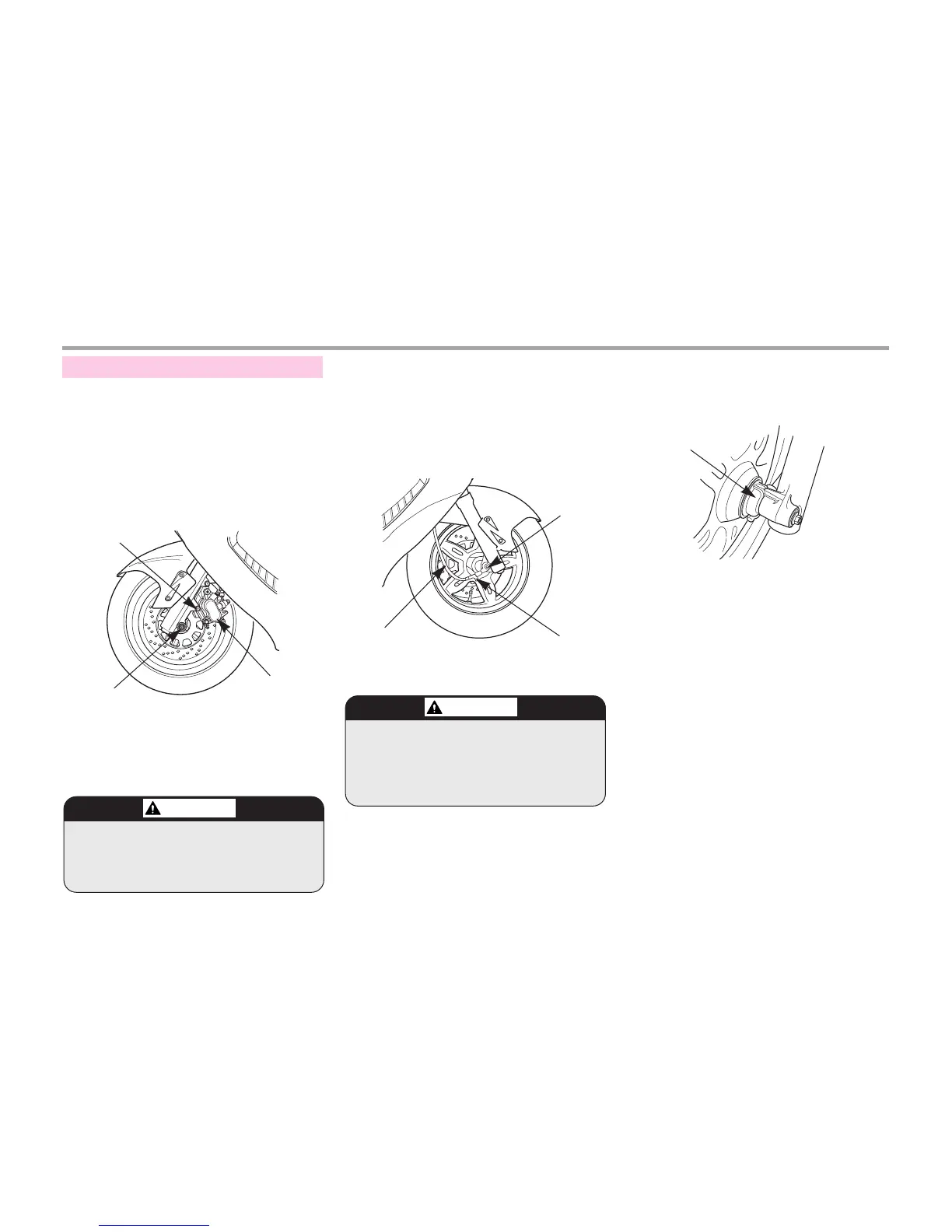

DEPRESSED PART
SPEEDOMETER
CABLE
OVAL SCREW
FRONT
WHEEL
AXLE
FRONT
CALIPER
AXLE NUT
FIXING BOLTS
