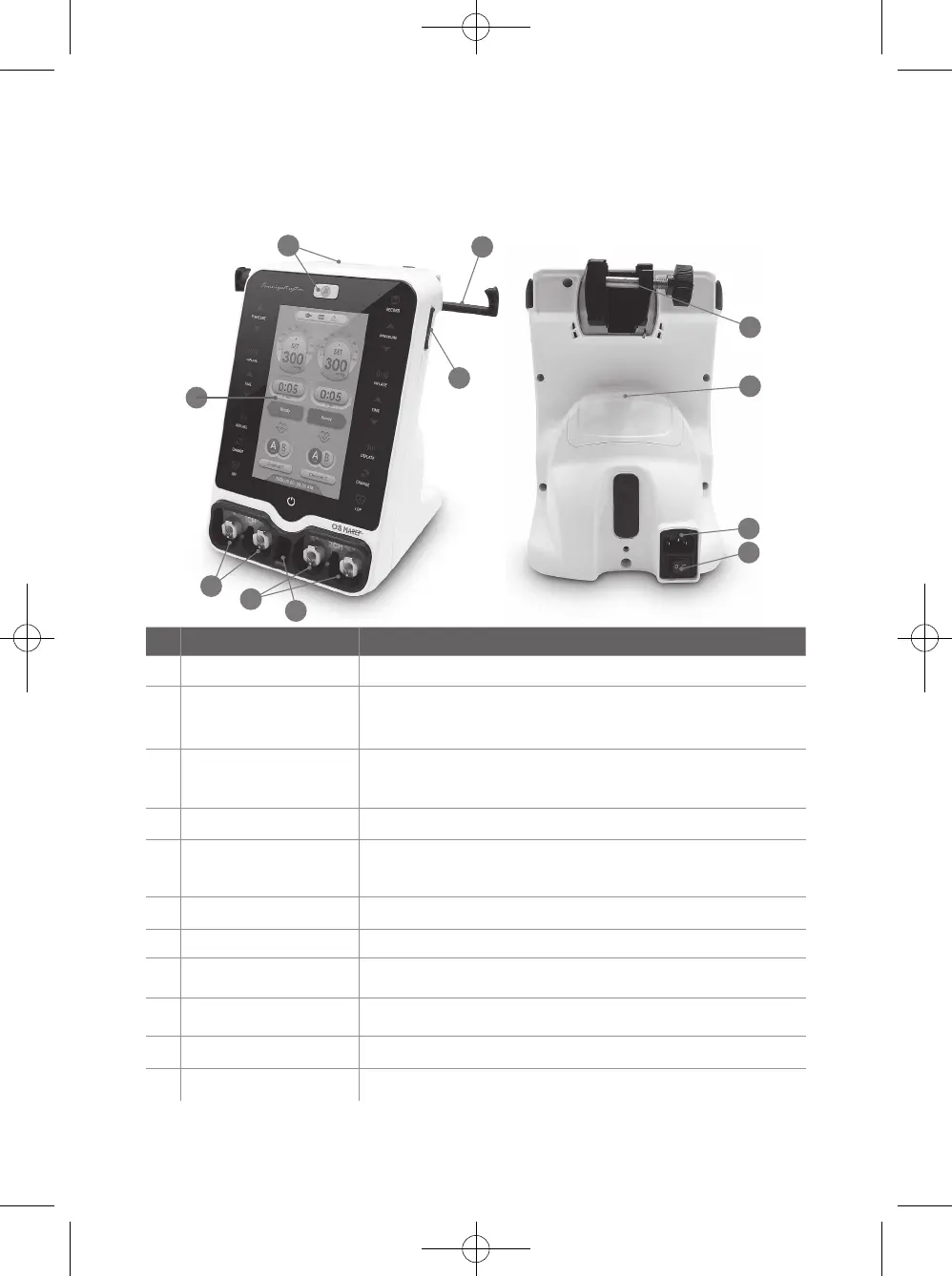

4-4. Names and Functions of Parts
No Name Function
1 LCD Screen Display the operating status of the device.
2 1CH Air Socket
- Socket for inserting red hose into 1ch when using single cuff.
- Socket for inserting red hose and gray hose into 1ch when
using double cuff.
3 2CH Air Socket
- Socket for inserting red hose into 2ch when using single cuff.
- Socket for inserting red hose and gray hose into 2ch when
using double cuff.
4 LOP Socket Socket to connect LOP Sensor.
5 Alarm LED
LED indicating the operating status and errors.
- Green: Standby, operating status.
- Red: Errors
6 SD Card Slot Slot to insert SD Card to save the operating status by a user.
7 Hose Holder Holder for the air hose.
8
Holder fixing pin/
Handle
- Pin to fix the device on the holder.
- Use the handle when moving the device.
9 Battery Cover
- Battery mounted on the device.
- Do not open the battery cover and do not change the battery.
10 Power Inlet Inlet to connect power cord.
11 Power ON/OFF Switch Switch to turn power on or off.
