SOFTENER DISPENSER
This is the device to dispense the softener automatically by centrifugal force.
This is installed inside the auto-balancer.
FUNCTIONAL PRINCIPLE
1)
Softener stays in room (A) when poured into softener inlet.
2)
Softener moves from (A) to (B) by centrifugal force during intermittent spin process.
3)
Softener flows from (B) to (C) during rinse process next to intermittent spin.
4)
Softener moves from (C) to (D) by centrifugal force during second intermittent spin.
After spin process is finished, the softener is added int the tub through softener outlet.

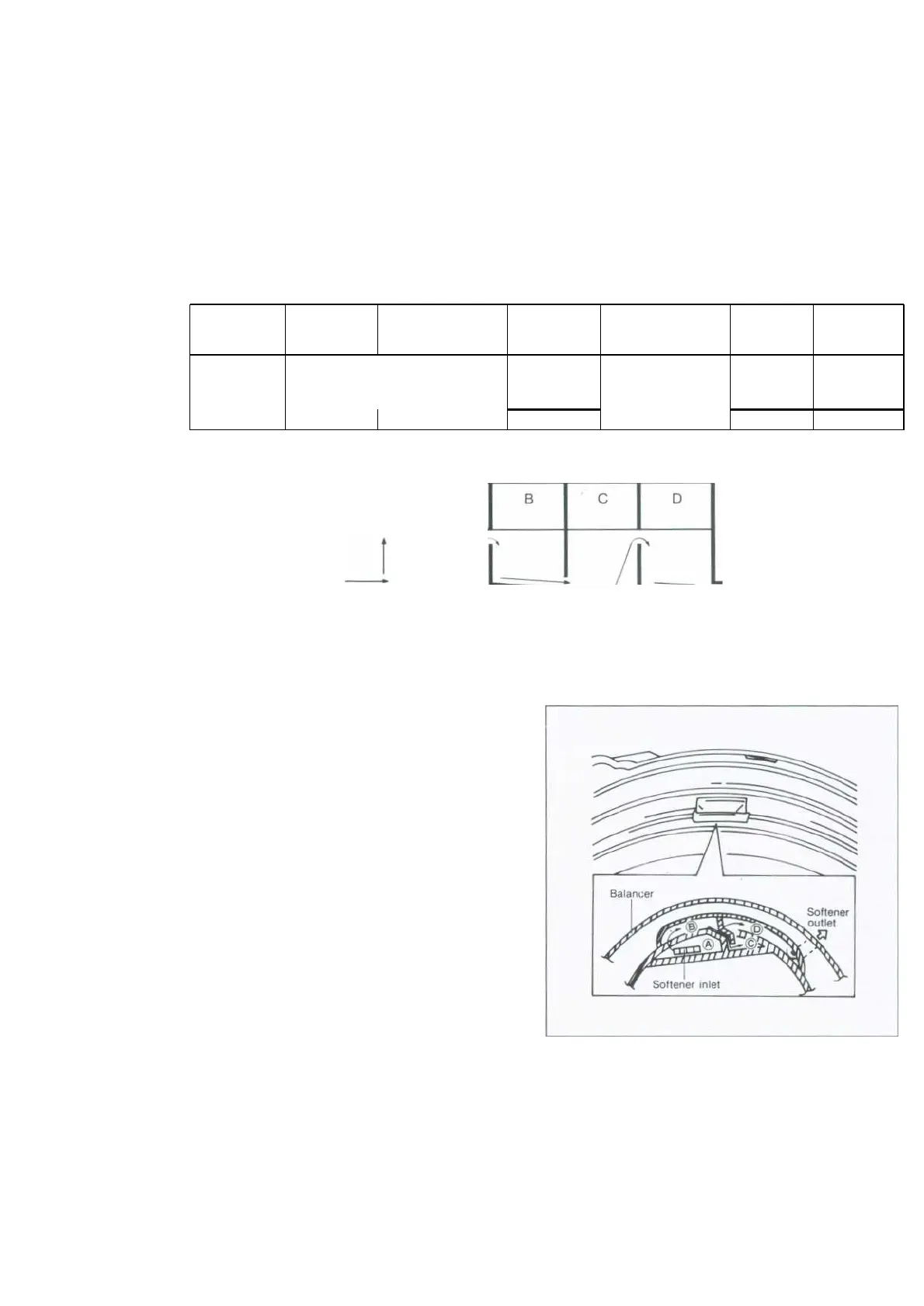

FLOW OF THE SOFTENER
FLOW OF THE SOFTENER INSIDE THE BALANCER
Room inside
the balancer
Centrifugal force
Flowing by
weight
A
NOTE: Softener moves into next room when r.p.m of the
tub is more than 100 r.p.m.
HOW TO CHECK MOVEMENT
Pour a reasonable amount of "MILK" into
softener dispenser and operate the washer
with no load.
I
n final rinse cycle, make sure that the milk is
added into the tub through softener outlet.
0
0
O
Wash
I
ntermittent
Hold
I
ntermittent
Rinse
Spin
Spin
Spin
Normal
Centrifugal
Flow in
Centrifugal
Flow in
force force
Course
(A) (B)
(C)
(
D)
