Daewoo D70S-2 - 2.3.3. Valve Spring

- 39 -

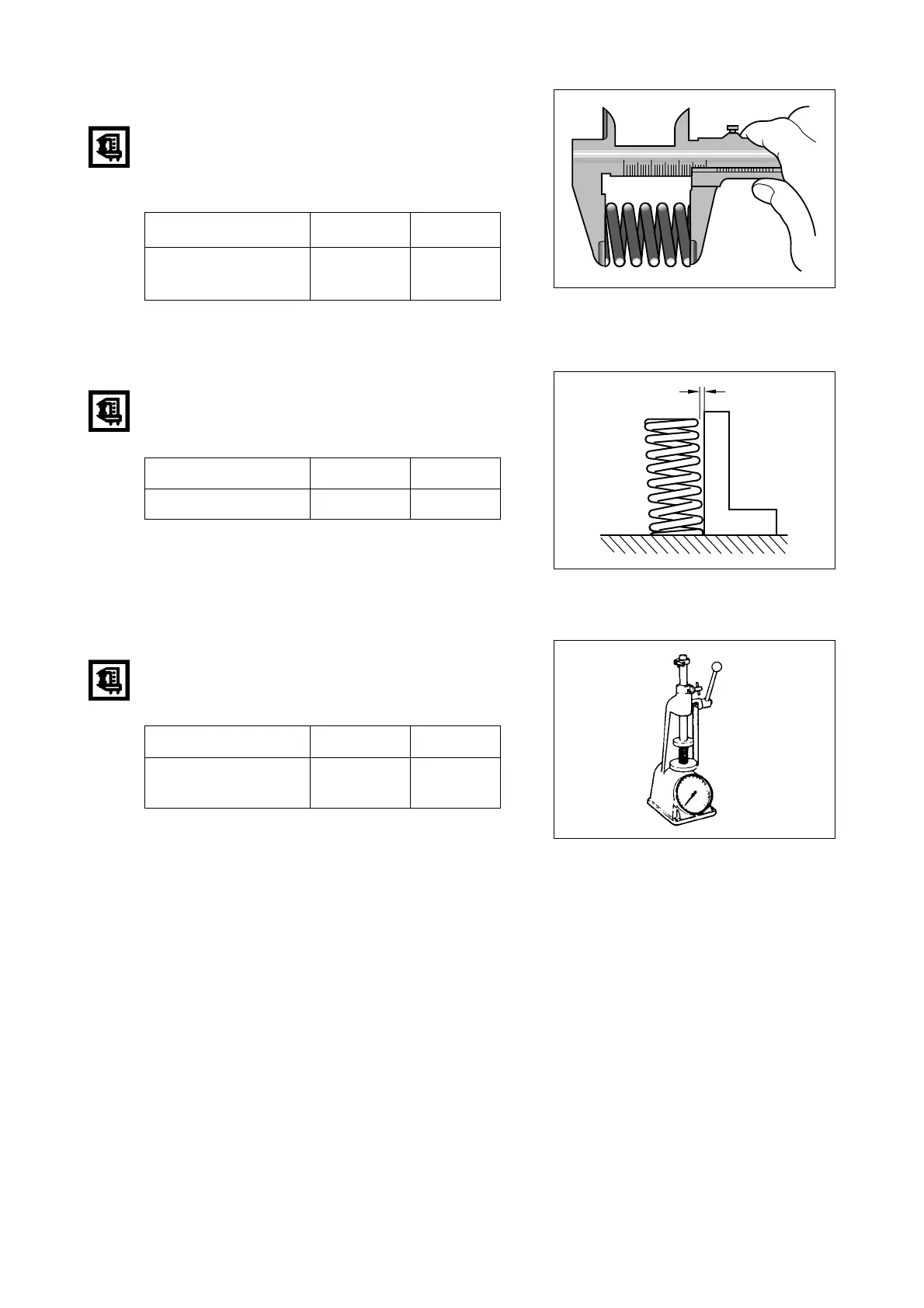

• Valve Spring Free Length
Measure the valve spring with the vernier caliper.
Replace the spring if the measured value is out of the
specified limit.
• Gradient of Valve Spring
Measure the valve spring gradient with a square.
Replace the valve spring if the measured value is
excessive from the specified limit.
•Tension of Valve Spring
Measure the valve tension with a tension measure.
Replace the valve spring if the measured value is out
of the specified limit.
EJM2049I
EJM2050I
EJM2051S
2.3.3. Valve Spring
Standard Limit
Exhaust and Intake Valve
49.0 mm 47.0 mm
Spring Free Length
Standard Limit
Valve Spring Gradient below 1.3 mm 2.7 mm
Standard Limit
Valve Spring Tension
14.5
kg
11.5
kg
at 40 mm Set Length
