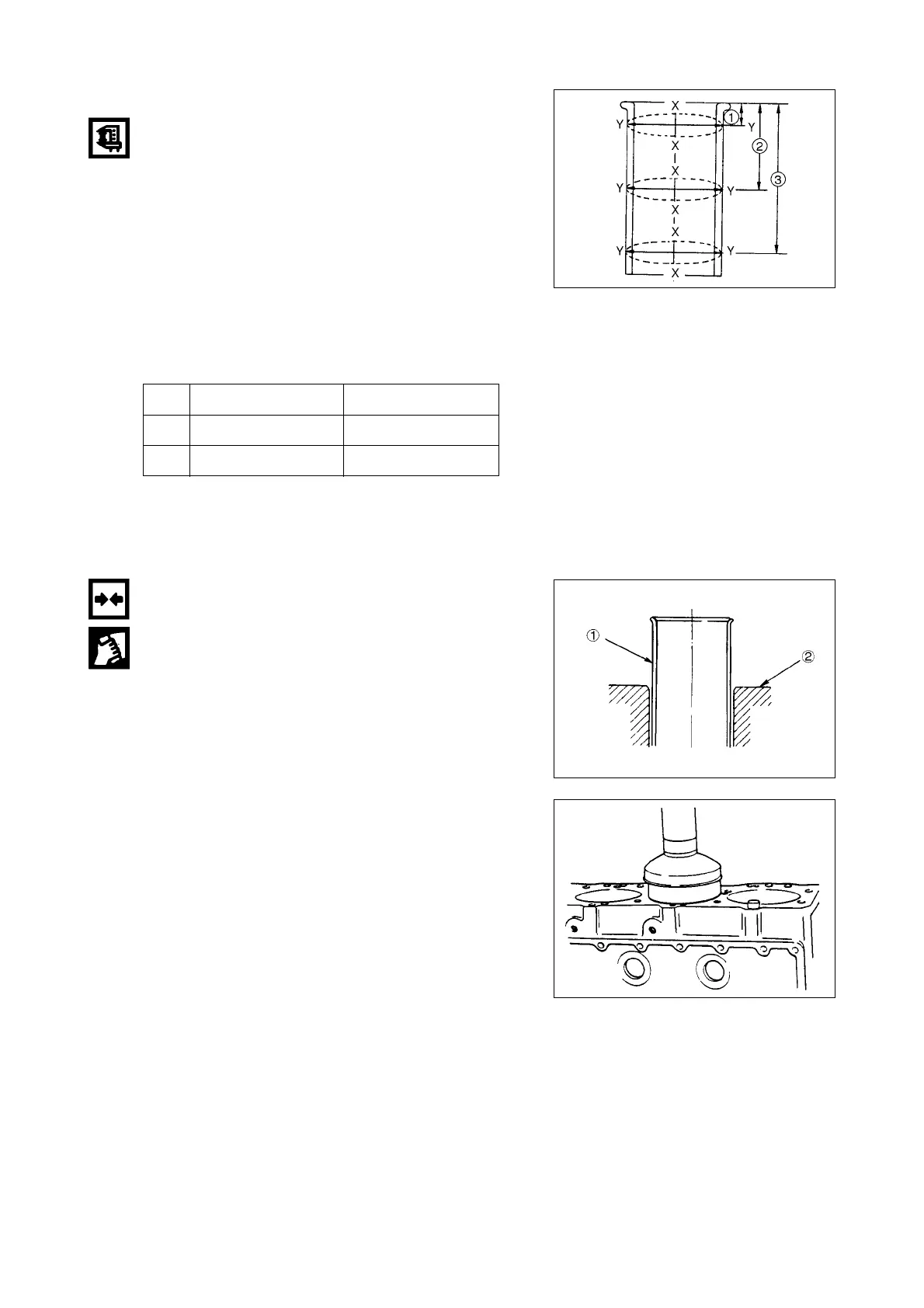

Measurement of Cylinder Liner Outside Diameter
1) Measure the liner outside diameter from (1), (2) &
(3) measuring point toward X-X, Y-Y.
Location of the Measuring point.
(1) 20.0
(2) 105.0
(3) 195.0
2) Average value for 6 measurements should be used
to moderately determine the liner grade.
Combination of the cylinder bore and the cylinder
liner outside.
<Cylinder bore and cylinder liner outside diameter>
¥
Assembley of the Cylinder Liner
1) Cleanly wash both of the cylinder liner inside &
outside and block inside.
2) Cleanly wash both of liner and bore surface with
the light gasoline and the kerosene.
3) Cleanly wash tracks with the rag which was printed
when washing.
4) Insert the liner (1) to cyliner block (2).
EJM2074S
EJM2075S
EJM2076S
Grade Cylinder Bore Outside Diameter
1 105.990-106.000 105.973-105.984
2 106.00-106.010 105.984-105.995
