5.3. Injection Nozzle
¥
Disassembly
EJM5003S

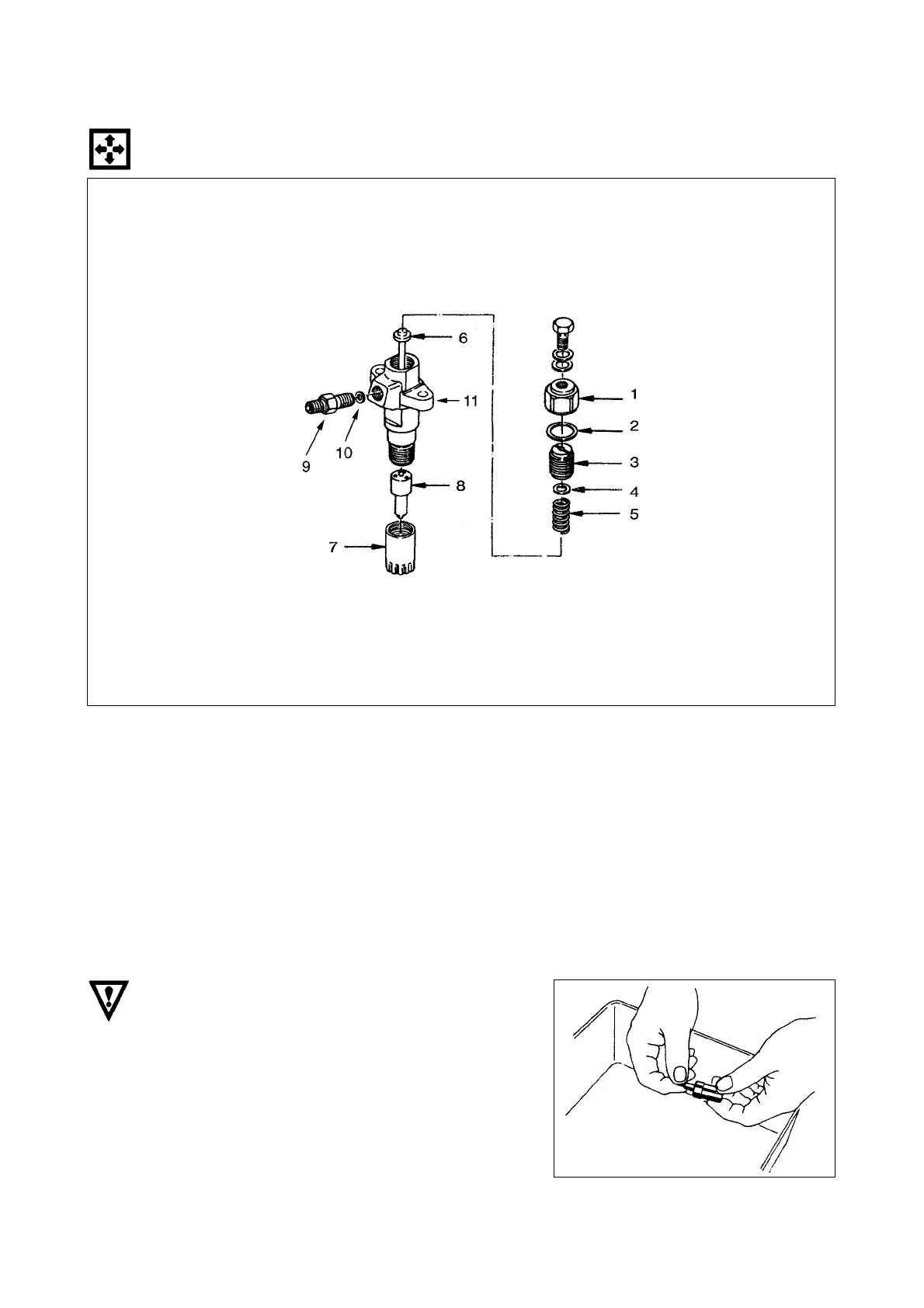

<Disassembly>
1. Nozzle holder cap nut. 7. Retaining nut.
2. Cap nut gasket. 8. Injection nozzle.
3. Nozzle adjusting screw. 9. Injection pipe connector.
4. Spring seat. 10. Connector gasket.
5. Push rod spring. 11. Nozzle holder body.
6. Nozzle holder push rod.
EJM5004S
¥ Nozzle
In order to maintain needle valve, disassemble nozzle
assÕy from body.
