Daewoo DLP-26C2 - DVD Player Connection

DVD Player
connection
14
HDMI INPUT AV1 AV2
PC INPUT AUDIO
S-VHS
AV3 L - AUDIO - R
OPTICAL UP-GRADE PCRT
COMPONENT
Pr
RL
Pb Y
HDMI INPUT AV1 AV2
PC INPUT AUDIO
S-VHS
AV3 L - AUDIO - R
OPTICAL UP-GRADE PCRT
COMPONENT
Pr
RL
Pb Y
BACK OF THE TV SET
BACK OF THE TV SET
Note :
• When you connect with the component video, please check the colour of the cable between the DVD and
TV set.
Note :
If S-video and RCA jack are connected at the same time, the TV set will only detect the S-Video mode.
• If your AV device has both Video OUT terminal and S-Video OUT terminal, the S-Video connection is
recommended for better picture quality.

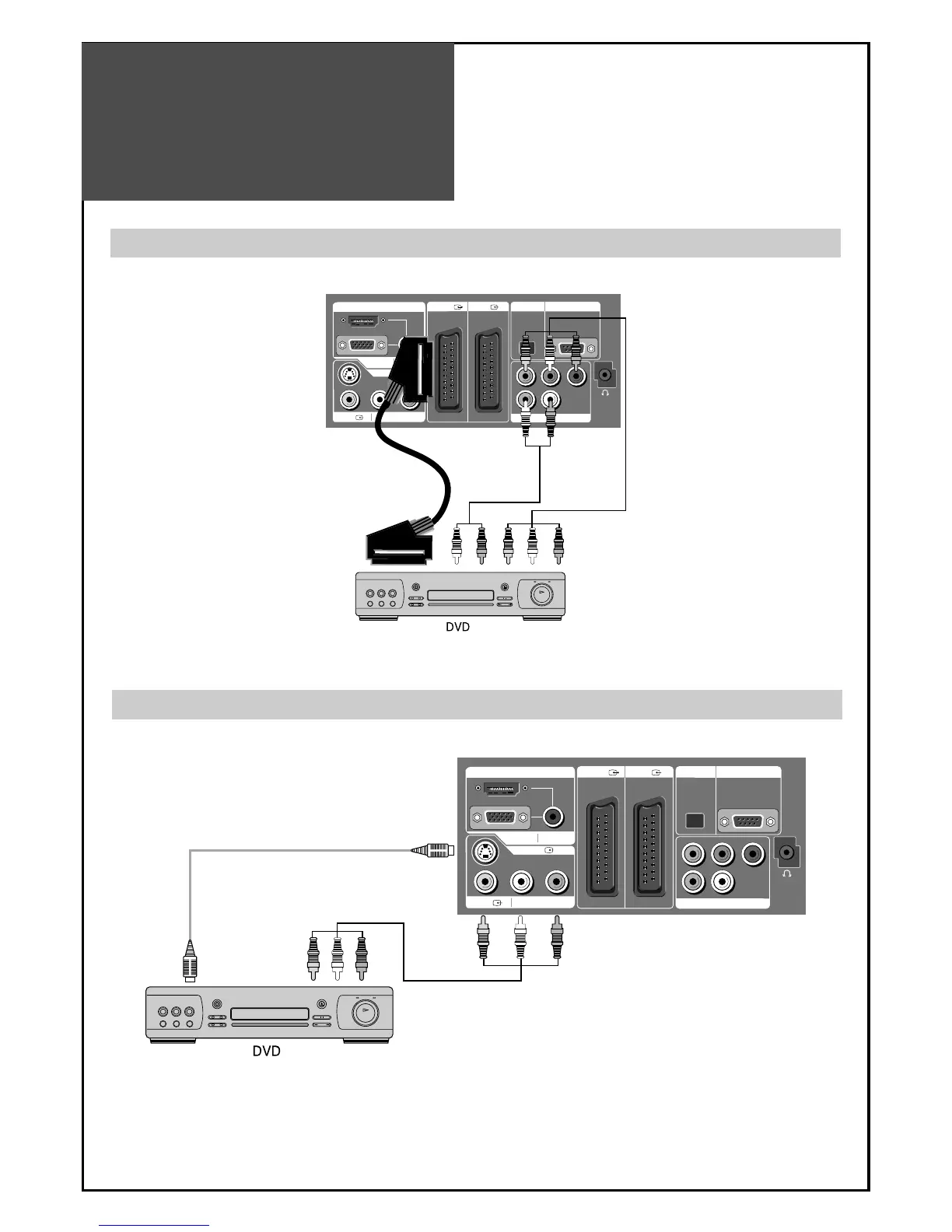

When connecting with a component cable and Euro SCART cable
When connecting with a S-VHS cable and RCA cable
