Back of the tv set
VIDEO
Video
Connection

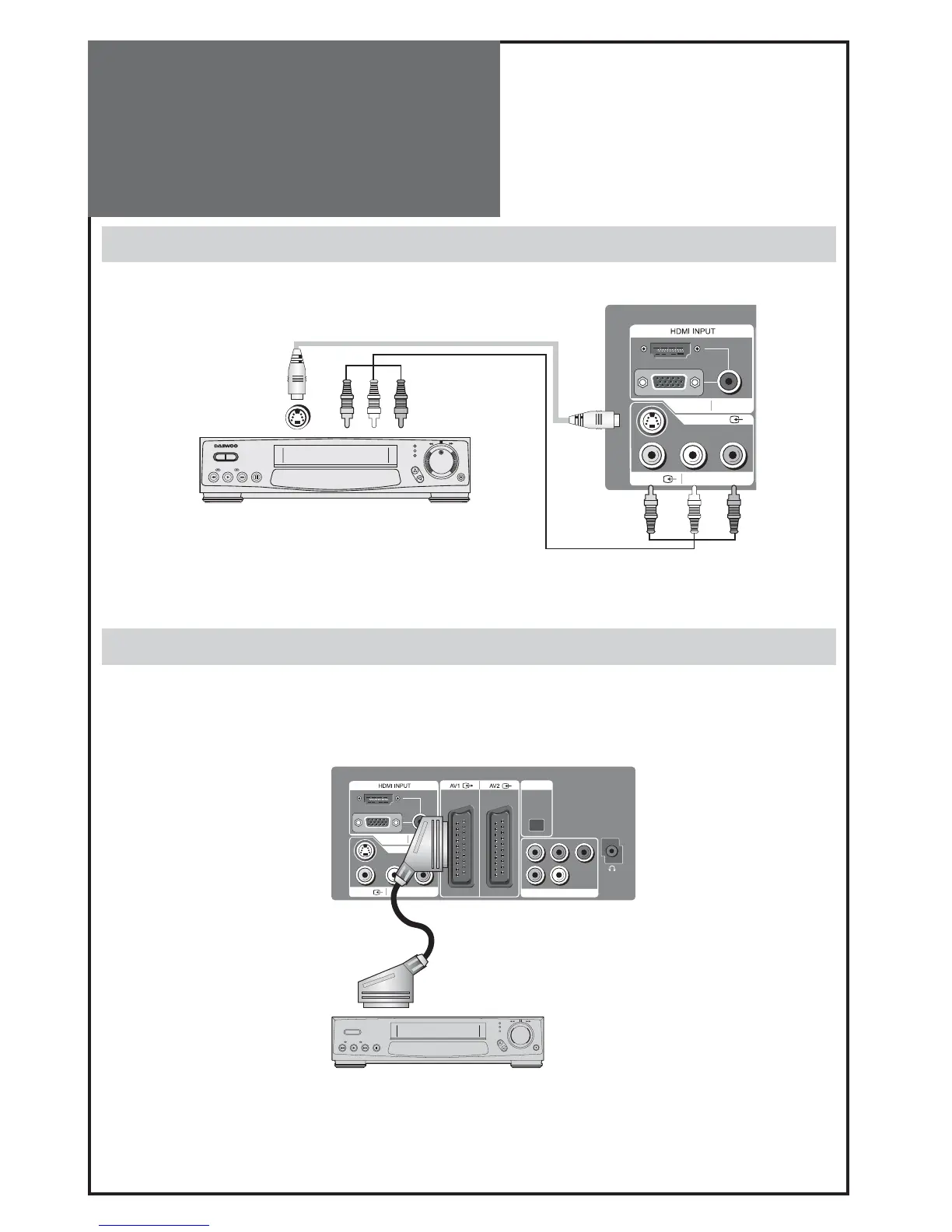

Connecting with an External Source
You may connect an S-Video input to enjoy clearer and brighter picture images. You can make the connection with
the AV3 input.
Note :
If S-video and RCA jack are connected the same time, The TV set will only detect the S-Video mode.
• If your AV device has both Video OUT terminal and S-Video OUT terminal, the S-Video connection is recommended
for better picture quality.
Connecting with SCART VIDEO
1. Prepare the scart lead for picture / sound.
2. Connect the SCART input / output terminal of video with the SCART1(AV1), SCART2(AV2), input/output terminal of TV.
3. Turn on the video, Insert the video cassette, and press the “PLAY” button.
Note :
• SCART1 has CVBS/RGB input and RF output. It is used to connect a STB, VCR and DVD.
• SCART2 has CVBS input. It is used to connect a STB, VCR and DVD.
S-Video
