Daewoo DLT-26C2 - DVD Player Connection

14
PC INPUT PC AUDIO
S-VIDEO
AV3 L - AUDIO - R
OPTICAL
COMPONENT
Pr
RL
Pb Y
PC INPUT PC AUDIO
S-VIDEO
AV3 L - AUDIO - R
OPTICAL
COMPONENT
Pr
RL
Pb Y
DVD Player
connection

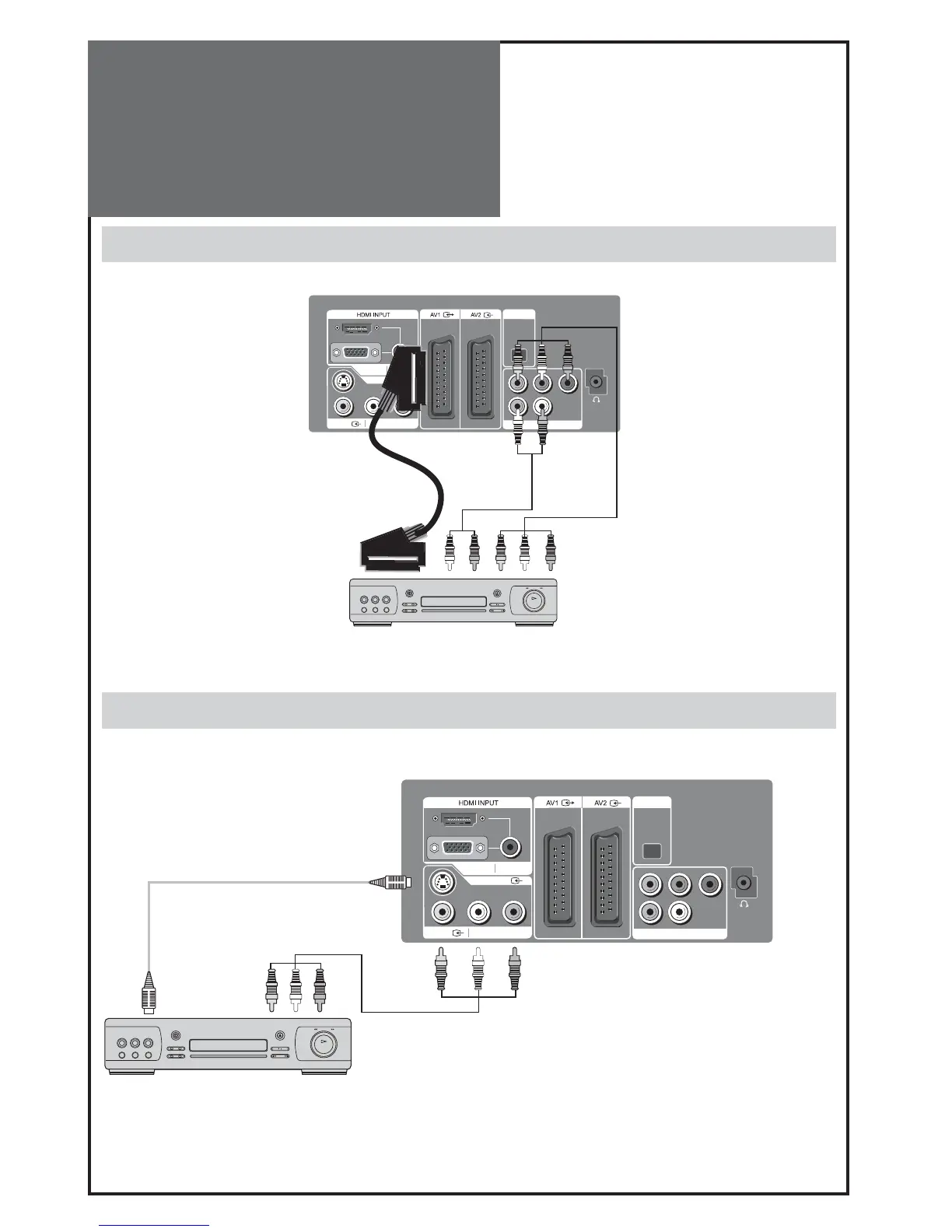

When connecting with a component cable and Euro SCART cable
Back of the tv set
DVD
Note :
• When you connect with the component video, please check the colour of the cable between the DVD and TV set.
When connecting with a S-VIDEO cable and RCA cable
Note : If S-video and RCA jack are connected at the same time, the TV set will only detect the S-Video mode.
• If your AV device has both Video OUT terminal and S-Video OUT terminal, the S-Video connection is recommended
for better picture quality.
Back of the tv set
DVD
