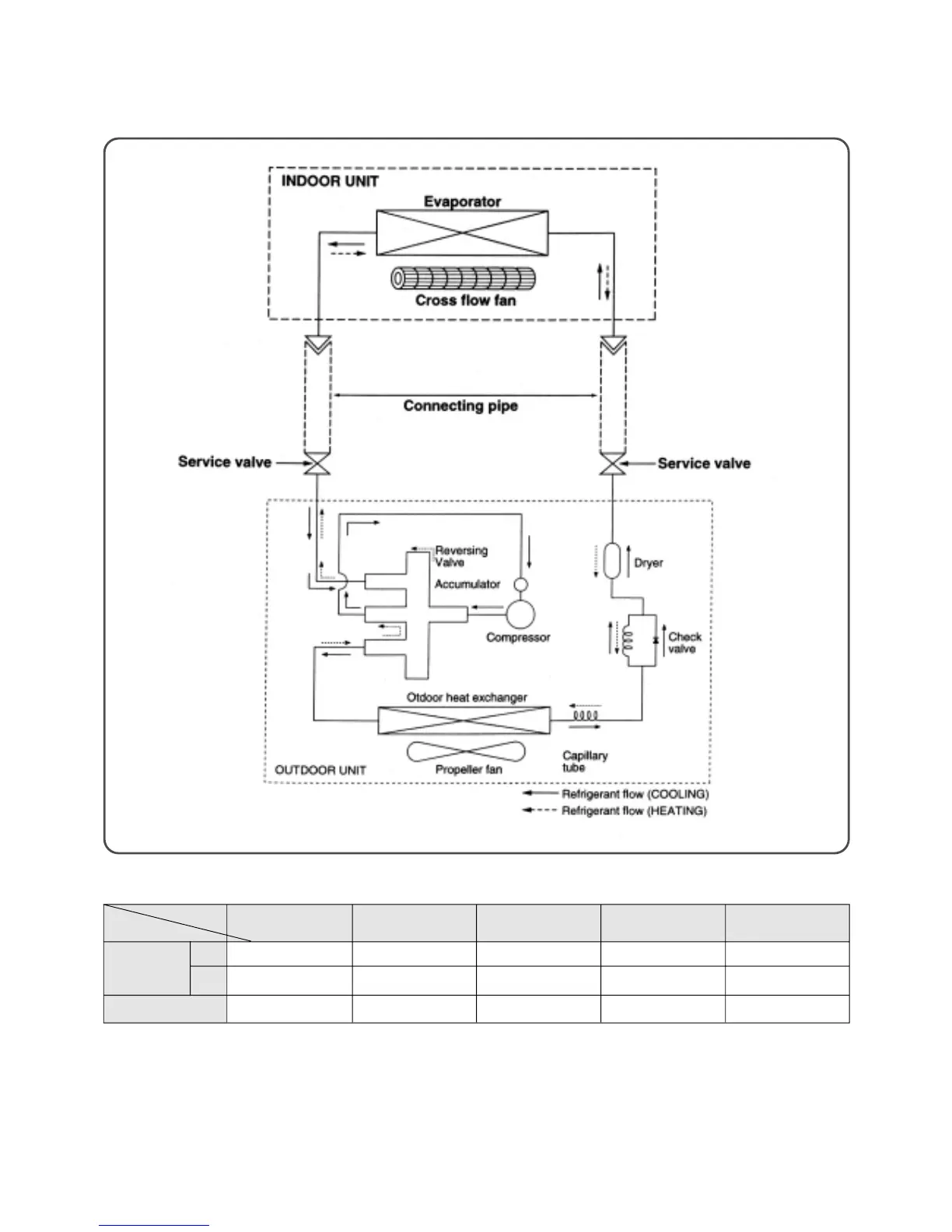

Daewoo DSB-092A - Control Block Diagram

50
Note) If the pipe length exceeds the standard length, add 30g of refrigerant per extra meter.
Contents
Cool
Heat
Charge Quantity
DSB-092AH
IDØ1.4 x L900
IDØ1.4 x L900
800 g
DSB-123AH/PH
IDØ1.8 x L1,200
IDØ1.8 x L800
1,230 g
DSB-182PH
ID Ø1.8 x L800
ID Ø2.0 x L600
1,480 g
DSA-240AH-R
ID Ø2.0 x L600
ID Ø2.0 x L300
2,100 g
DSB-240AH-R/PH-R
IDØ2.0 x ODØ3.2 x 600L
IDØ2.0 x ODØ3.2 x 300L
2,200 g
Capillary Tube
Model Name
