Daewoo DSB-181LH - INSTALLATION; Accessories and Diagrams

This Installation section explains how and where to connect this new air conditioner. Please read make sure all acces-
sories are included as shown below and read manual thoroughly. This Installation section is provided to assist the per-
son knowledgeable in air conditioner installation and should not be installed by anybody who is not thoroughly familiar
with this type of installation. Please contact a professional installer if necessary.

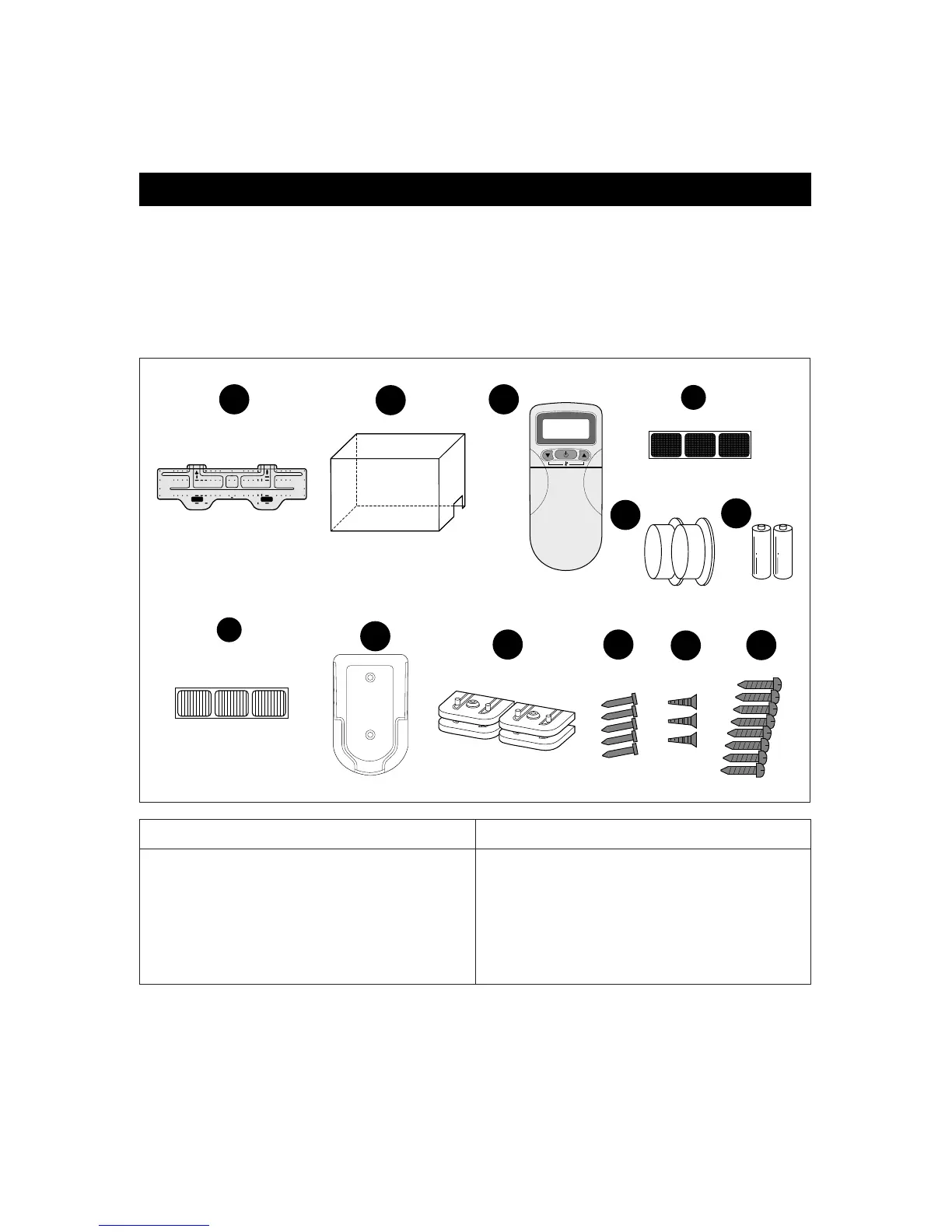

ACCESSORIES SUPPLIED WITH THE UNIT:
COPPER TUBING:
Copper tubing supplied is available at most dealers or A/C shops. Make sure the new copper tubing has the exact same
specifications and diameter as the original copper tubing and is as short as possible.
BASIC ACCESSORIES
3
ON OFF ENTER CANCEL
TIMER RESET
SWING
FAN SPEED
MODE
SLEEP
ON/OFF
TEMP.
1
2
8
6
7
9
3
10
11
12
5
4
INSTALLATION SECTION
No. Description Qty.
1 Wall Bracket 1
2 Outdoor Unit Cover 1
3 Remote Controller 1
4 Deodorizing Filter 1
5 Electrostatic Filter 1
6 Remote Holder 1
No. Description Qty.
7 Foot Cushion 4
8 Concrete Nails 5
9 Remote Holder Screws 3
10 Wall Bracket Screws 8
11 Wall Cap 2
12 Battery 2
