4.4 TDA6107AJF
The TDA6107AJF includes three video output amplifiers and is intended to drive the three
cathodes of a colour CRT directly. The device is contained in a plastic DIL-bent-SIL 9-pin
medium power(DBS9MPF) package, and uses high-voltage DMOS technology.
To obtain maximum performance, the amplifier should be used with black-current control.
4.4.1 Features
§ Typical bandwidth of 5.5 MHz for an output signal of 60 Vpp
§ High slew rate of 900V/µs
§ No external components required
§ Very simple application
§ Single supply voltage of 200V
§ Internal reference voltage of 2.5 V
§ Fixed gain of 81.
§ Black-current stabilisation (BCS) circuit with voltage window from 1.8 to 6 V and current
window form 100uA to -10mA
§ Thermal protection
§ Internal protection against positive flashover discharges appearing on the CRT

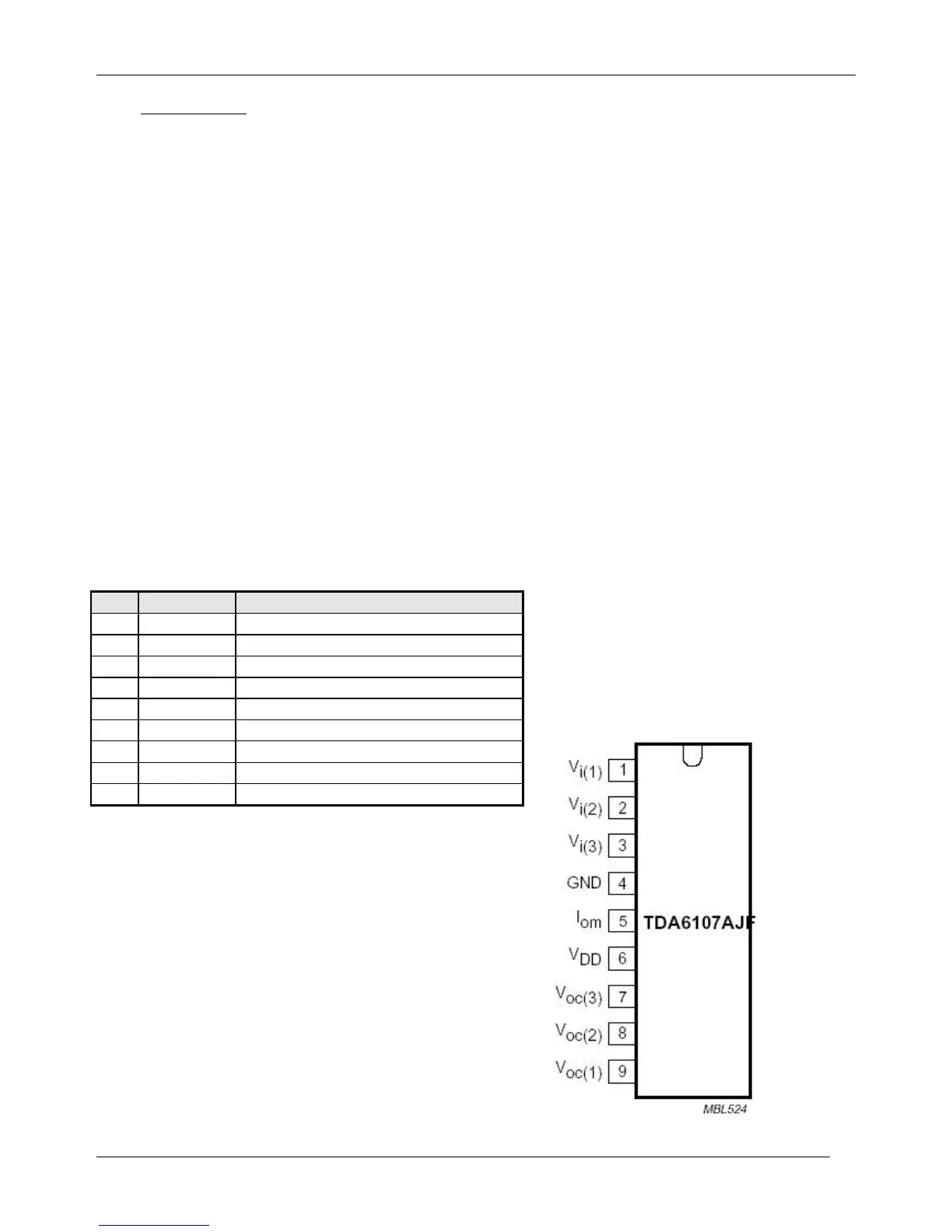

4.4.2 Pin description
Pin Symbol Description
1 V
i(1)
inverting input 1
2 V
i(2)
inverting input 2
3 V
i(3)
inverting input 3
4 GND ground (fin)
5 I
om
black current measurement output
6 V
DD
supply voltage
7 V
OC(3)
cathode output 3
8 V
OC(2)
cathode output 2
9 V
OC(1)
cathode output 1
