Overview of Your Equipment
Your TV/VCR’s comes with a remote control. The section below summarizes the buttons,
controls, and terminals that will use with your TV/VCR’s.

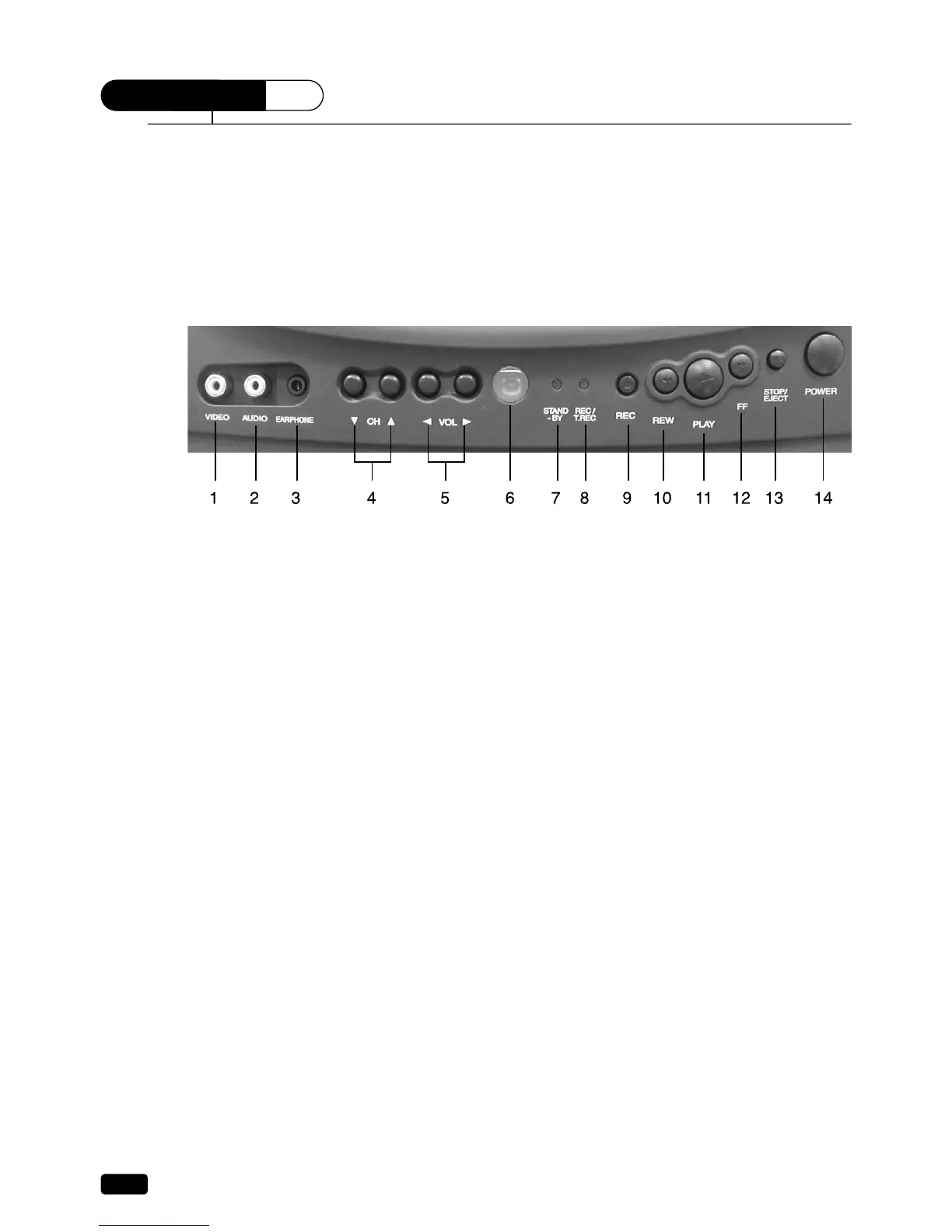

Your TV/VCR's Front Panel
Below you will find short description of the buttons and indicators on the front panel. These
are use following functions.
1 VIDEO in jack
Use this jack to receive a video signal from another A/V component.
2 AUDIO in jack
Use this jack to receive a audio signal from another A/V component.
3 EAR PHONE jack
Use this jack to the earphone (not supplied). The sound from the speaker is turned off.
4
yy
CH
xx
buttons (channel)
Press these buttons to change channels on your TV/VCR. You will also use these buttons
to adjust the tracking.
5
CC
VOL
BB
buttons (volume)
Press these buttons to change your TV/VCR’s volume.
6 Remote control receiver
This receiver receives a signal from your remote control. Do not block it.
7 STAND-BY(red) indicator
This indicator light up when the power is off.
8 REC/T.REC (red/green) indicator
This indicator light up red when recording and light up green when timer program operat-
ing.
9 REC button
Press this button to begin recording. Press repeatedly to set a recoding time using
One-Touch Recording (OTR).
10 REW button
Press this button to rewind the tape.
