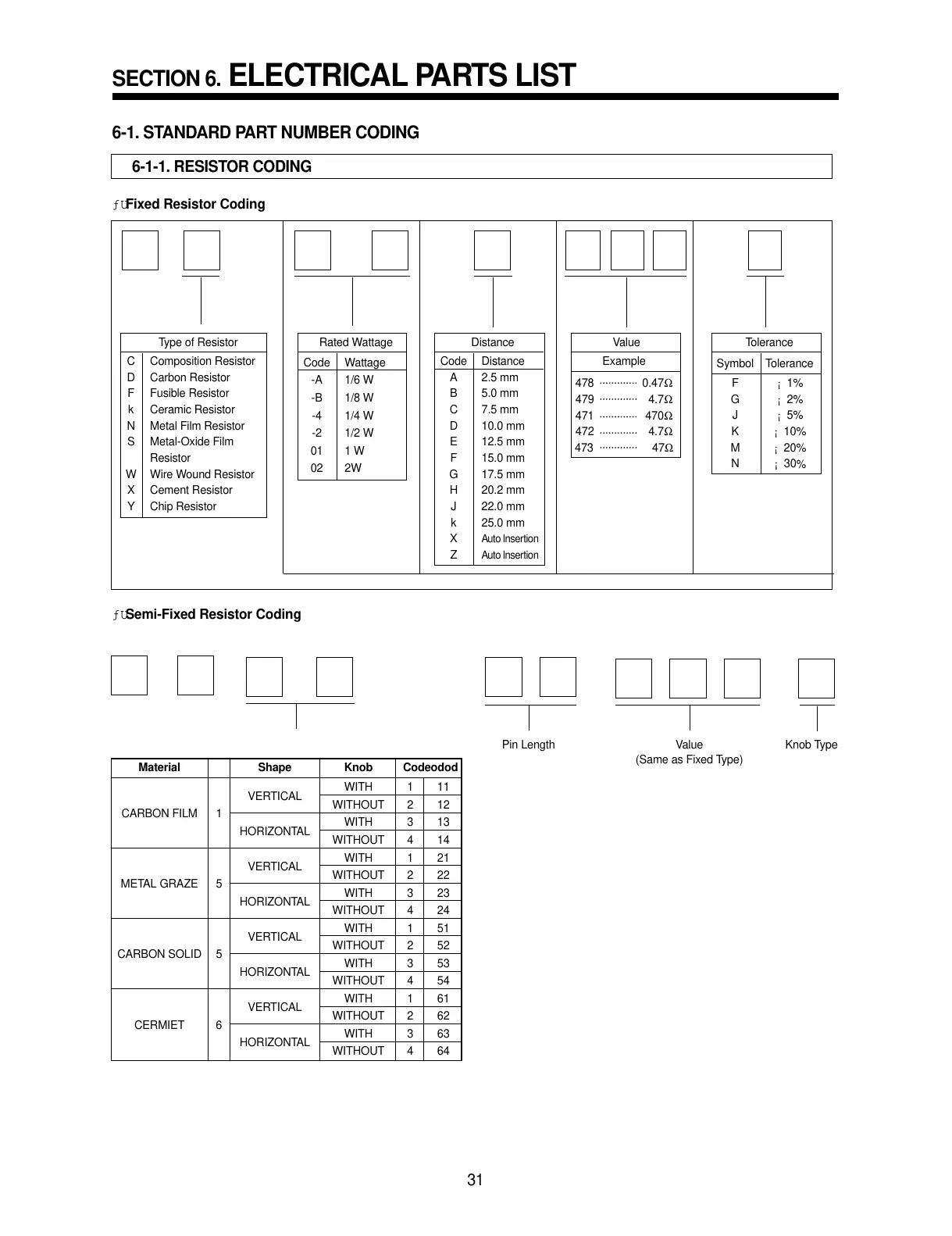

Daewoo DVR-1989D - SECTION 6. ELECTRICAL PARTS LIST; 6-1. STANDARD PART NUMBER CODING

6-1. STANDARD PART NUMBER CODING
ƒUFixed Resistor Coding
ƒUSemi-Fixed Resistor Coding
31
SECTION 6. ELECTRICAL PARTS LIST
6-1-1. RESISTOR CODING
Type of Resistor
C Composition Resistor
D Carbon Resistor
F Fusible Resistor
k Ceramic Resistor
N Metal Film Resistor
S Metal-Oxide Film
Resistor
W Wire Wound Resistor
X Cement Resistor
Y Chip Resistor
Rated Wattage
Code Wattage
-A 1/6 W
-B 1/8 W
-4 1/4 W
-2 1/2 W
01 1 W
02 2W
Value
Example
478 0.47Ω
479 4.7Ω
471 470Ω
472 4.7Ω
473 47Ω
Distance
Code Distance
A 2.5 mm
B 5.0 mm
C 7.5 mm
D 10.0 mm
E 12.5 mm
F 15.0 mm
G 17.5 mm
H 20.2 mm
J 22.0 mm
k 25.0 mm
X Auto lnsertion
Z Auto lnsertion
Tolerance
Symbol Tolerance
F ¡ 1%
G ¡ 2%
J ¡ 5%
K ¡ 10%
M ¡ 20%
N ¡ 30
%
Pin Length Value Knob Type
(Same as Fixed Type)
Material Shape Knob Codeodod
VERTICAL
WITH 1 11
CARBON FILM 1
WITHOUT 2 12
HORIZONTAL
WITH 3 13
WITHOUT 4 14
VERTICAL
WITH 1 21
METAL GRAZE 5
WITHOUT 2 22
HORIZONTAL
WITH 3 23
WITHOUT 4 24
VERTICAL
WITH 1 51
CARBON SOLID 5
WITHOUT 2 52
HORIZONTAL
WITH 3 53
WITHOUT 4 54
VERTICAL
WITH 1 61
CERMIET 6
WITHOUT 2 62
HORIZONTAL
WITH 3 63
WITHOUT 4 64
