ƒUNormal
ƒUTemperature Compensation
32
Type
Code Tpye
A Aluminum
B Barrier Layer
C Ceramic
E Electrolytic
L Line Across
M Mylar
S Styrol
N Metalized Polyester
Q Mica
Oil
T Tantal
Distance
Code Voltage
0J 6.3V
1A 10V
1C 16V
1D 20V
1E 25V
1V 35V
1G 40V
1H 50V
1J 63J
2A 100V
2B 125V
2C 160V
2D 200V
2E 250V
Distance Value (Same As Fixed
(Same As Fixed (Same As Fixed Resistor)
Resistor) Resistor)
Shape or
Characteristic
Characteristic
Capacitance Temperature
Coefficient (ppm/¡ ) Coefficient(ppm/¡ )
A +100 F ¡ 15
B +30 G ¡ 30
C +0 H ¡ 60
H -30 J ¡ 120
L -80 K ¡ 250
P -150 L ¡ 500
R -220 M ¡ 1000
S -330 N ¡ 2500
T -470
U -750
V -1000
SI +350~
-1000

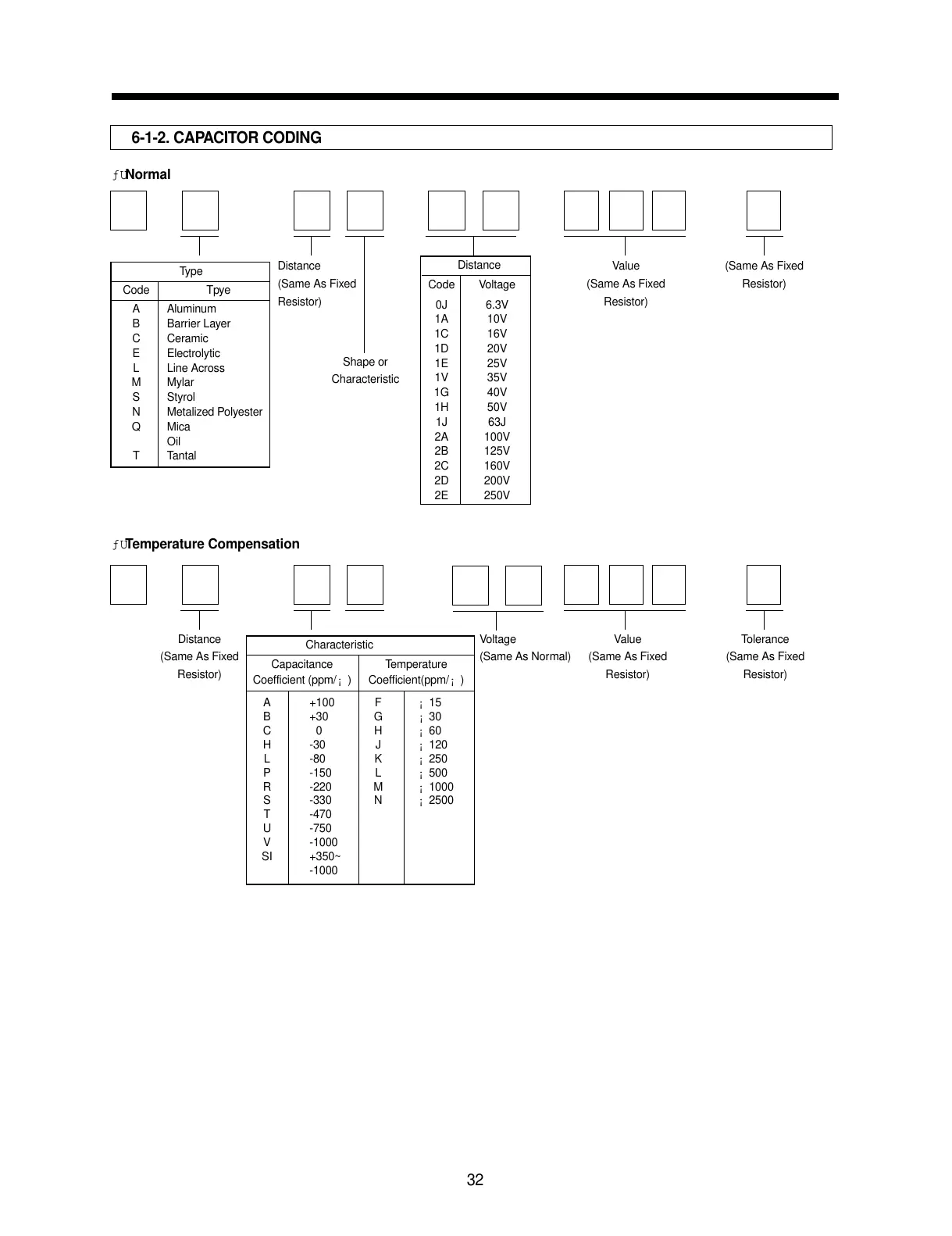

6-1-2. CAPACITOR CODING
Distance Voltage Value Tolerance
(Same As Fixed (Same As Normal) (Same As Fixed (Same As Fixed
Resistor) Resistor) Resistor)
