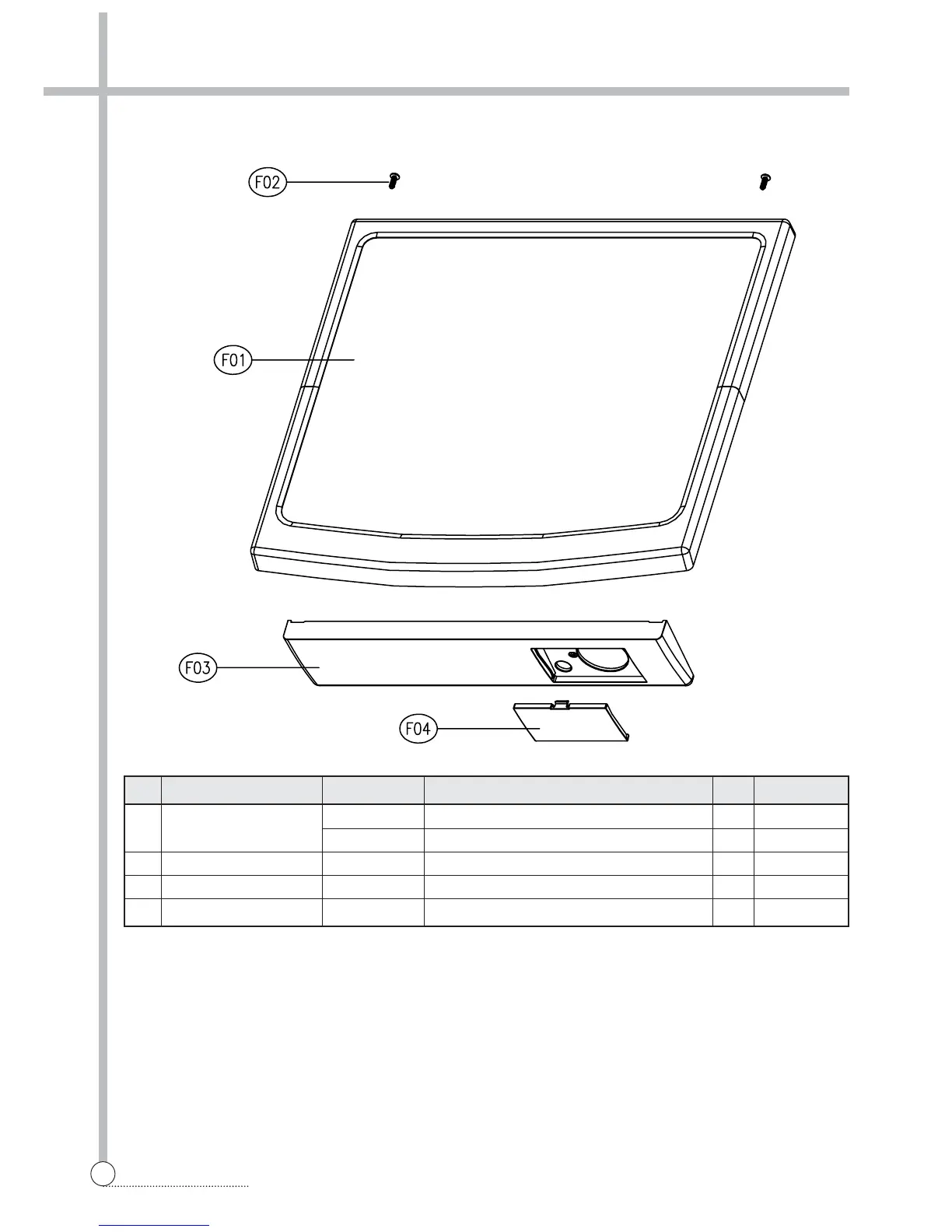

EXPLODE VIEW AND PARTS LIST
■ PLATE T AS + PANEL LOWER AS
F01 PLATE TOP AS 3614533300 FX1X31~2, 41~2(HIPS, MFC, WH) 1
3614533310 F3~F4'S, SPRAY(ABS, MFC, SILVER) 1
F02 SCREW TAPPING 7122401411 T2S TRS 4x14 MFZN 2
F03 PANEL LOWER 3614282801 HIPS 1
F04 COVER PUMP FILTER 3611425801 HIPS 1
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
