5. EXPLODE VIEW AND PARTS LIST
14
EXPLODE VIEW AND PARTS LIST

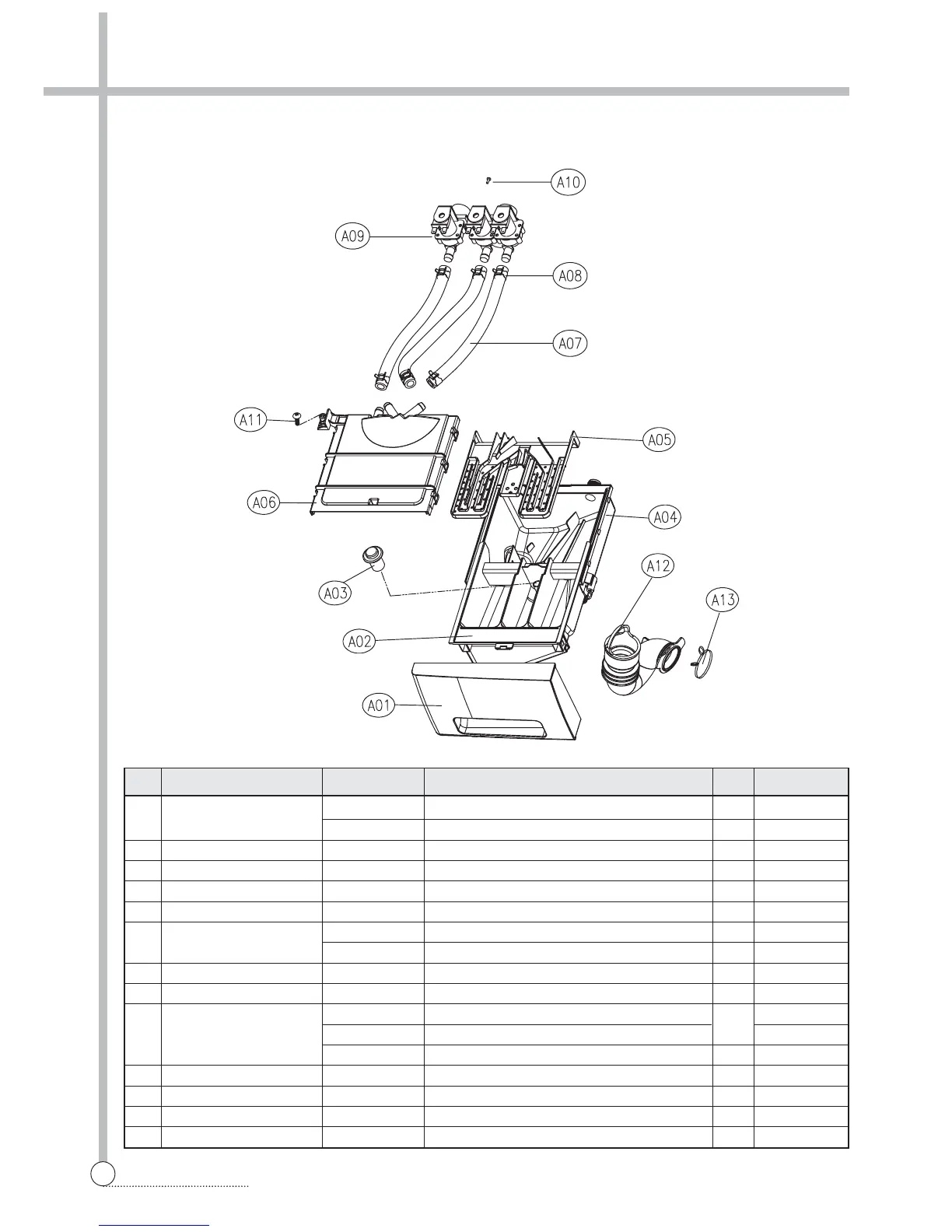

■ BOX INLET AS
A01 CASE HANDLE 36111T2W00 HIPS, FT1081 1
- ABS + SPRAY, FT1081 1
A02 CASE DETERGENT 3611145800 PP 1
A03 CAP SOFTENER 3610907800 PP 1
A04 INLET BOX 3617511800 PP, D-FU1081 1
A05 NOZZLE UNDER 3618103410 PP 1 M’S
A06 NOZZLE TOP 3618112200 PP, Cold only 1
3618112210 PP, Cold + Hot 1
A07 HOSE WATER SUPPLY 3613270900 EPDM,ID9.5,OD14.5, L=310 2(3) COLD(+HOT)
A08 CLAMP HOSE 3611205800 100H,ID=13.8,W=10,0.9T 4(6) COLD(+HOT)
A09 VALVE INLET 3615414900 220~240V, 2-WAY, PP/BRACKET 1 COLD
3615416821
220~240V, VDE,2-WAY+DR TECH INSPECTION COST
COLD(EU)
3615414800 220~240V, 1-WAY, HOT PP/BRACKET 1 HOT(OPTION)
A10 SCREW TAPTITE 7272400811 TT3, TRS 4X8 MFZN 2(4) COLD(+HOT)
A11 SCREW TAPPING 7122401411 T2S,TRS, 4X14 MFZN 1
A12 HOSE INLET 3613276600 EPDM, FT1081 1
A13 CLAMP HOSE 3611201401 HSW3,YW,D2.6,ID36,W44.5 1
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
To Next Page
