EXPLODE VIEW AND PARTS LIST
5. EXPLODE VIEW AND PARTS LIST

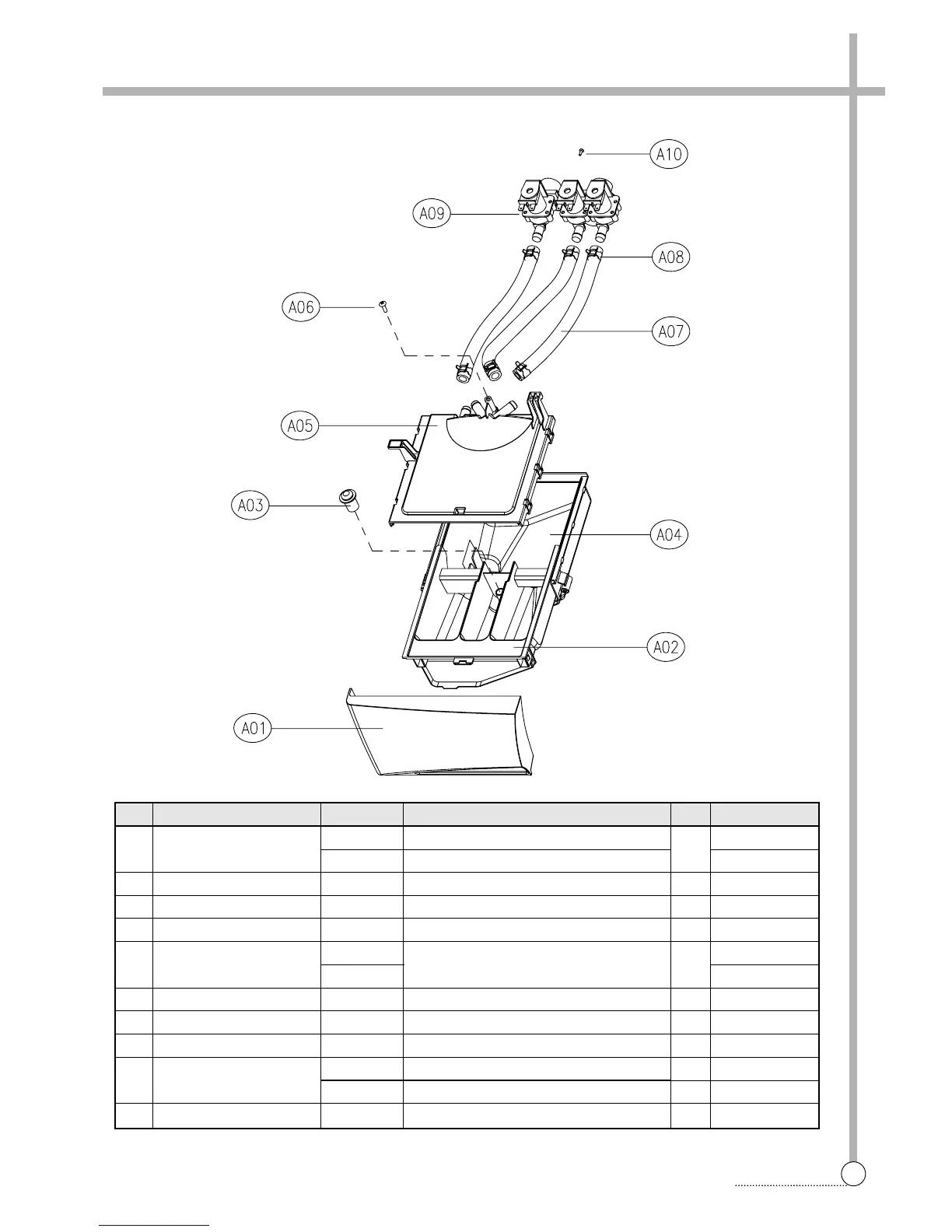

■ BOX INLET AS
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
A01 HANDLE CASE
3612610900 HIPS
1
DWD-M801X's
3612611000 HIPS DWD-M802X's
A02 CASE DETERGENT 3611145800 PP 1
A03 CAP SOFTENER 3610907800 PP 1
A04 BOX INLET 3610527500 PP 1
A05 NOZZLE AS
3618105700
NOZZLE TOP + NOZZLE UNDER 1
COLD ONLY
3618105710 COLD+HOT
A06 SCREW TAPPING 7122401411 T2S TRS 4X14 MFZN 1
A07 HOSE WATER SUPPLY 3613270900 EPDM ID=9.5 OD=14.5 L=215 2(1) COLD(HOT)
A08 CLAMP HOSE 3611205800 ID=13.8 W=10.0 0.9T 4(2) COLD(HOT)
A09 VALVE INLET
3615414910 220-240V 2-WAY NYLON/BRACKET VDE 1 COLD
3615414800 220-240V 1-WAY HOT PP-BRACKET 1 HOT
A10 SCREW TAPTITE 7272400811 TT3 TRS 4X8 MFZN 2
