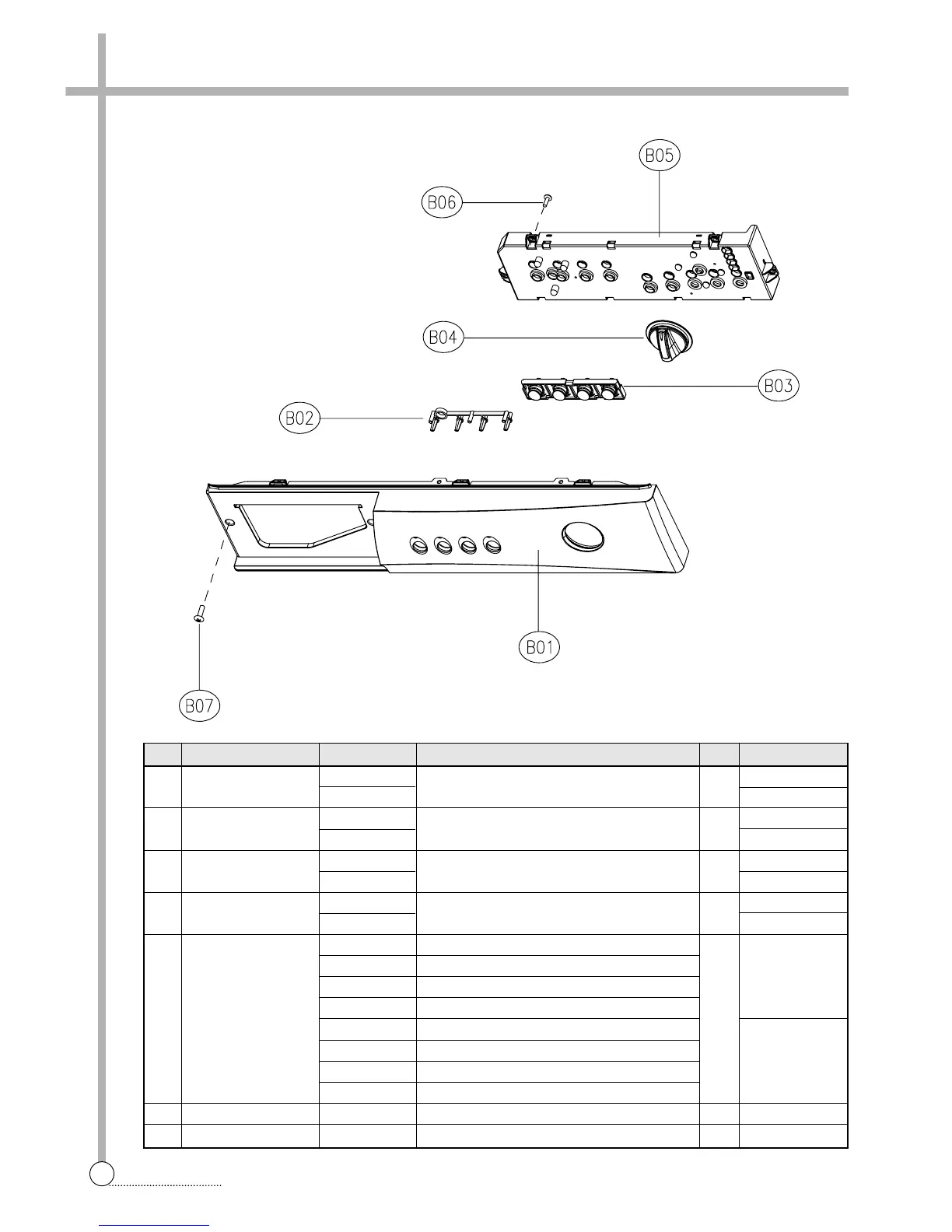

EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
B01 PANEL F
3614287400
HIPS 1
DWD-M801X's
3614287500 DWD-M802X's
B02 WINDOW LED
3615505200
ABS TRANSPARENT 1
DWD-M801X's
3615505300 DWD-M802X's
B03 BUTTON SELECT
3616636400
ABS 1
DWD-M801X's
3616636500 DWD-M802X's
B04 KNOB DIAL AS
3613406300
KNOB+DECO+SHAFT 1
DWD-M801X's
3613406200 DWD-M802X's
PRPSSWC000 OPTION(COLD+HOT, BB) CASE PCB(HIPS)
PRPSSWC001 OPTION(COLD, NB) CASE PCB(HIPS)
DWD-M801X's
PRPSSWC002 OPTION(COLD, BB) CASE PCB(HIPS)
B05 PCB AS
PRPSSWC003 OPTION(COLD+HOT, NB) CASE PCB(HIPS)
1
PRPSSWC010 OPTION(COLD+HOT, BB) CASE PCB(HIPS)
PRPSSWC011 OPTION(COLD, NB) CASE PCB(HIPS)
DWD-M802X's
PRPSSWC012 OPTION(COLD, BB) CASE PCB(HIPS)
PRPSSWC013 OPTION(COLD+HOT, NB) CASE PCB(HIPS)
B06 SCREW TAPPING 7122401611 T2S TRS 4X16 MFZN 6
B07 SCREW TAPPING 7122401608 T2S TRS 4X16 SUS 430 2
