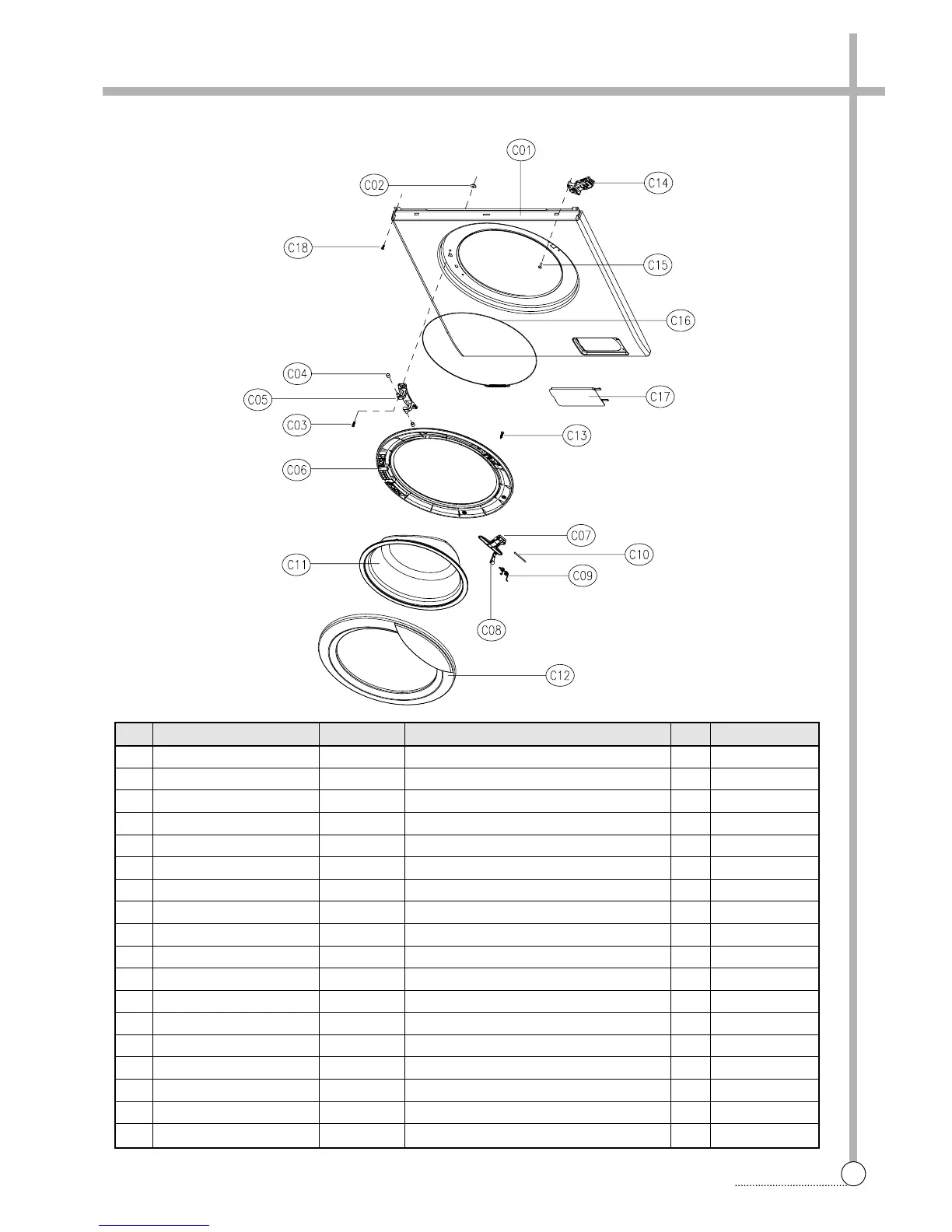

EXPLODE VIEW AND PARTS LIST
■ CABINET FRONT AS
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
C01 CABINET F AS 3610812810 PAINTING T=0.7 1
C02 NUT HEX 7S627W50X1 NUT FLANGE M5X0.8P MFZN 2
C03 SCREW TAPPING 3616051229 STS430 F/L BOLT(SE) 5*12 2
C04 CAP HINGE DOOR 3610916500 POM 2
C05 HINGE DOOR 3612903700 ALDC 1
C06 FRAME DOOR I 3612208700 PP 1
C07 HANDLE DOOR 3612610800 ABS 1
C08 HOOK DOOR 3613101200 POM 1
C09 SPRING HOOK 3615114600 SUS D1.4 1
C10 PIN HANDLE 3618200200 SUS304, D3, L48 1
C11 DOOR GLASS 361A110700 GLASS PI300 1
C12 FRAME DOOR O 3612208600 HIPS 1
C13 SCREW TAPPING 7115401629 T1 FLT 4X16 SUS 7
C14 SWITCH DOOR LOCK 3619047100 DL-LC.BITRON_3P.250V16A.BI-METAL 1
C15 SCREW TAPPING 7122401208 T2S TRS 4X12 SUS 2
C16 CLAMP DOOR AS 3611204810 HSW3, D1.4 1
C17 COVER PUMP 3611428500 HIPS 1
C18 SCREW TAPPING 3616029950 TTS"S" HEX F/L 4*8 4
To Next Page
