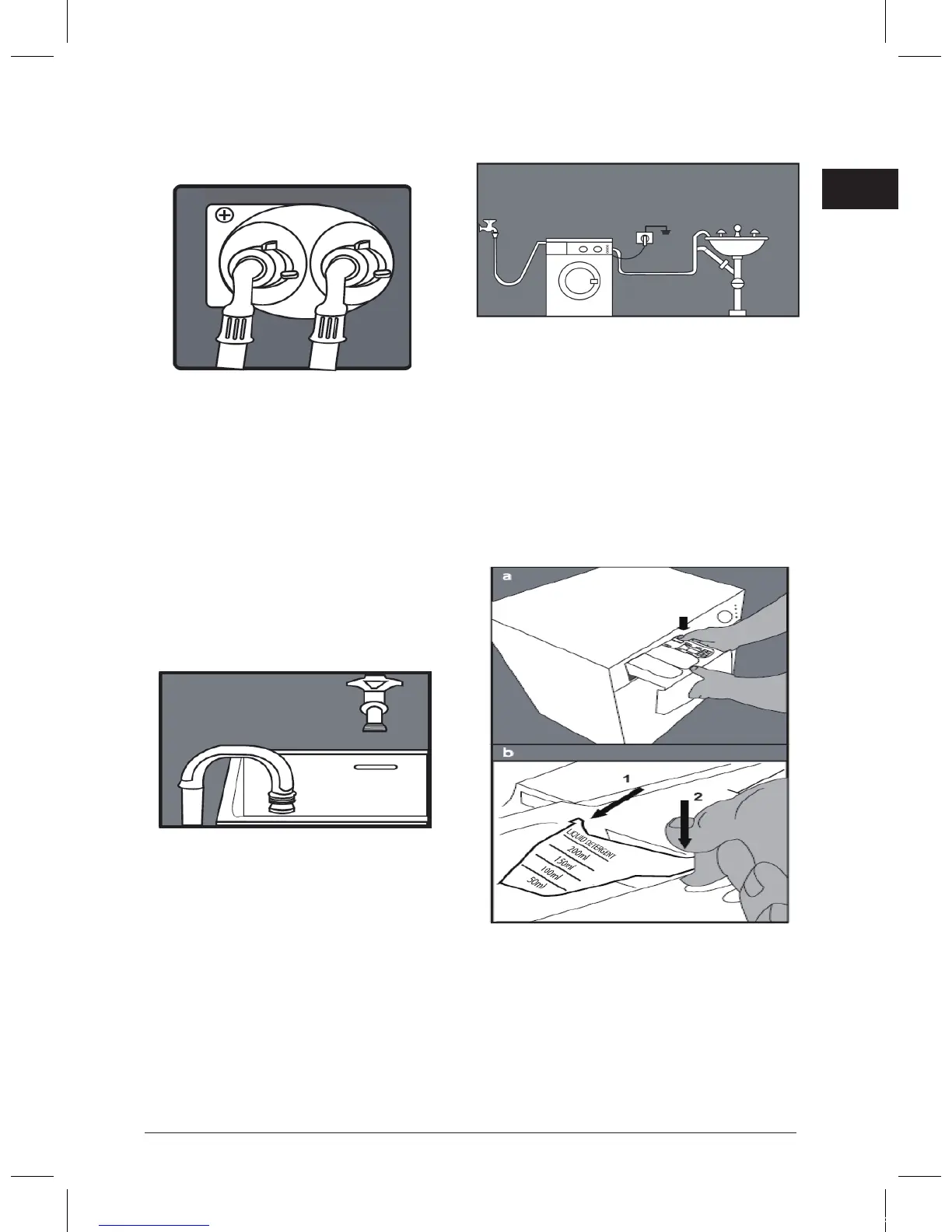

Figure 5b shows the connection to the hot water
tap, this option is only available on request.
Figure 5b
Make sure that the domestic hot water supply
temperature does not exceed 55°C to avoid
damage to the laundry and washing machine.
For the inlet hose only use the supplied.
WATER DRAINAGE
Drain hose can be installed in two different
ways:
- On the edge of sink using the plastic hose
hanger commercially available.
Figure 6
In this case make sure that the tube is secured
to the sink.
- In a drain pipe at a height of not less than
60 cm and not more than 90cm.
The tube end must always be ventilated, i.e. the
inside diameter of the drain pipe must be larger
than the outer diameter of the drain hose of the
washing machine. The drain hose must not be
obstructed.
Example of installation
Figure 7
noisnetxe gnisu dnemmocer ton si tI .B.N
on the drain hose.
LIQUID DETERGENT BULKHEAD PAN
Inside the kit supplied, there is a bulkhead pan
of blue colour which grants the use of liquid
detergents in the washing machine.
To install a bulkhead it is necessary to:
• remove the detergent drawer from the
washing machine
• apply the bulkhead as shown in photo
After installation, replace the drawer into the
washing machine. There is no need to remove
the bulkhead (see p. 19).
POWER SUPPLY CONNECTION
The machine is equipped with a connecting
cable and earthed plug for connection to
AC 230 V ~ 50 Hz.
hot water cold water
