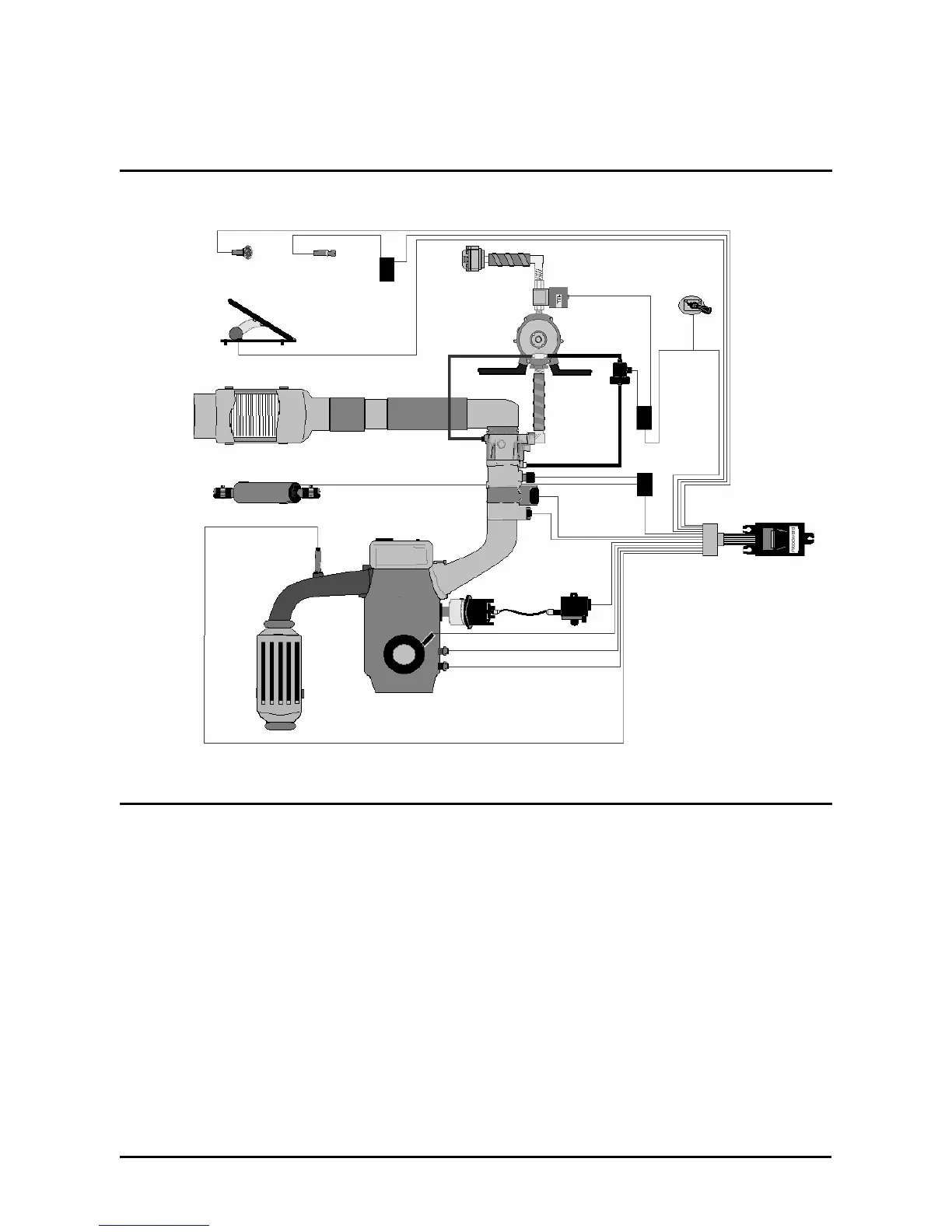

MI-04 Dual Fuel System
Key switch
Foot Pedal
LP Fuel Filter
Fuel Lock
Converter
SECM
Fuel Trim
Valve
Mixer
Distributor
Engine
VR Sensor
Oil Pressure Switch
Coolant Temp Sensor
Catalytic Muffler
Oxygen Sensor
TMAP
DBW Throttle
Fault Light
Air Cleaner
LP Fuel Line
Coolant Line
TPS
APP
Main
PWR
Relay
Vacuum Line
Fuel Injector
Fuel Pump
Smart Coil
Fuel Select Switch
Fuel
Select
Relay
1&2
2
1
